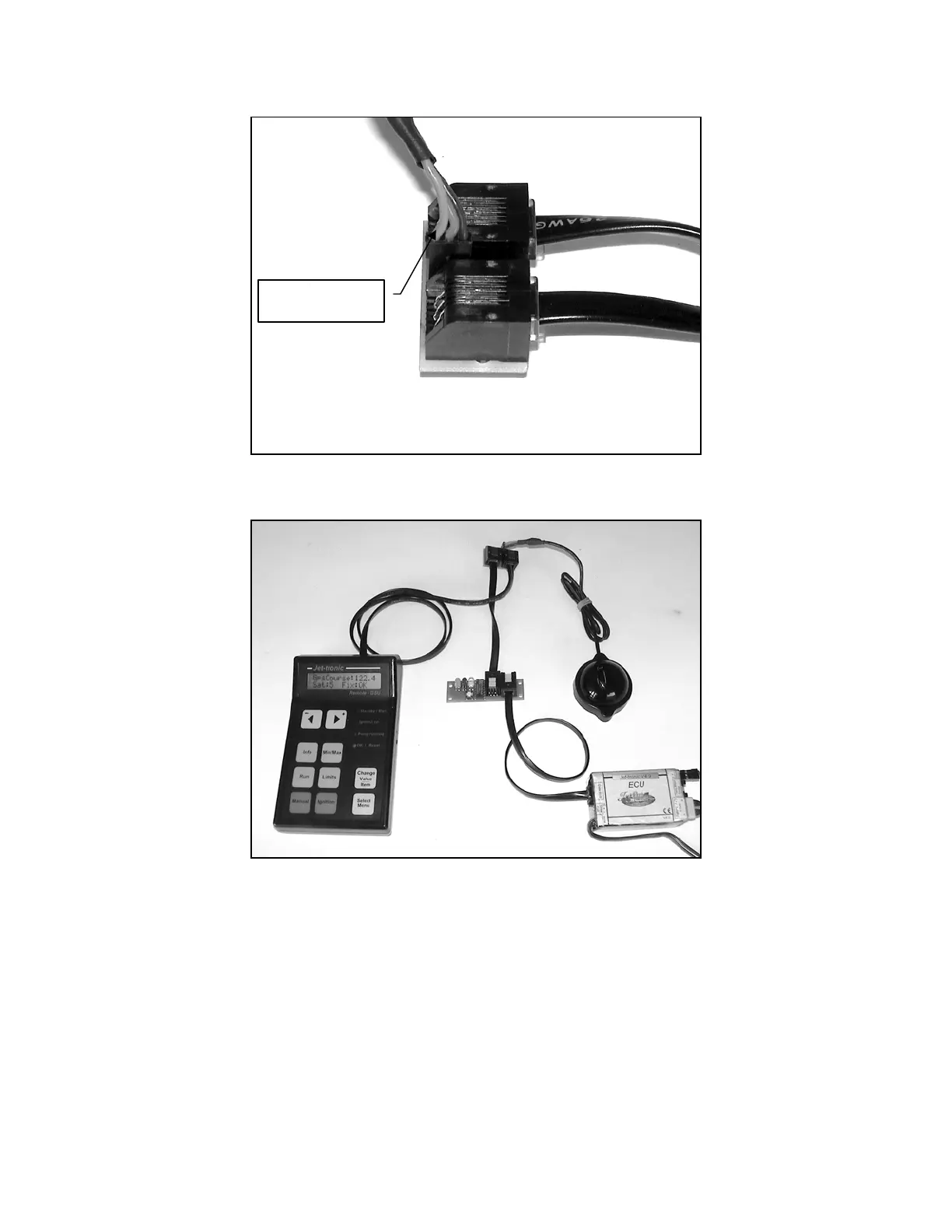

GPS Connections
Orange wire
Connect the GPS to the adapter. The orange wire is toward the outside of the board.
This picture shows the GPS wired after the I/O Board making it more convenient to
unplug when the RS-232 interface is used.
When the GPS is first powered up, it takes several minutes to acquire the satellites.
After this initialization, it will acquire in several seconds after powering up the ECU. This
should be done outside, not inside a building. Place the GPS in the model so the
antenna is not obstructed by metal or carbon fiber material. Use Velcro or foam tape to
affix the GPS in the model. For best performance, the GPS dome should be pointed
towards the top of the model.
Page 73/74
