COMPLEX RADIO CONTROL SYSTEM
6.5 Receiver R4 RES
R4 RES receiver has a special type of firmware designed for the
competition category of electrically powered gliders (ERES).
Measurements and height calculations are the same as the
specifications of F5J category. Settings and telemetry are strictly
limited according to the needs of the ERES competition.

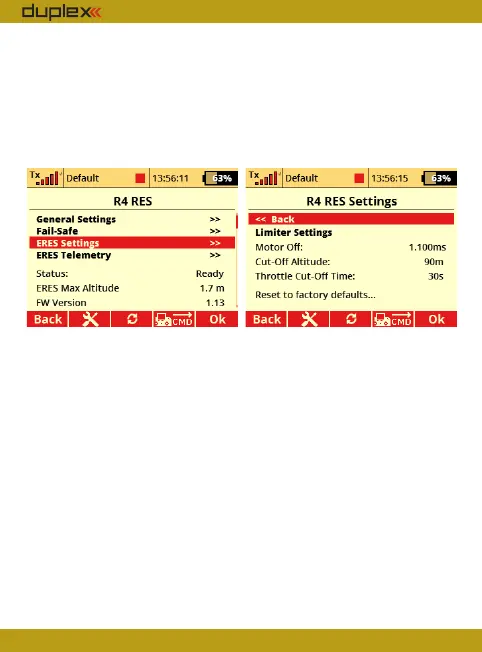

Sensor settings:
● Motor shutdown pulse (default 1.100ms)
● Switch-off height setting (90m by default)
● Switch-off time setting (30s by default)
The speed controller have to be connected to output no. 1. This
predefined output cannot be changed by the user.
Data displayed by the sensor (data isn’t displayed during the
flight ):
● Current sensor status (Ready, Running, Measuring, Done)
● Maximum measured relative height
● 10 relative height values
26
EN
