Jeti spectraval 1501 User Manual

Operating Instructions
JETI spectroradiometer spectraval 15x1
Document Revision 105

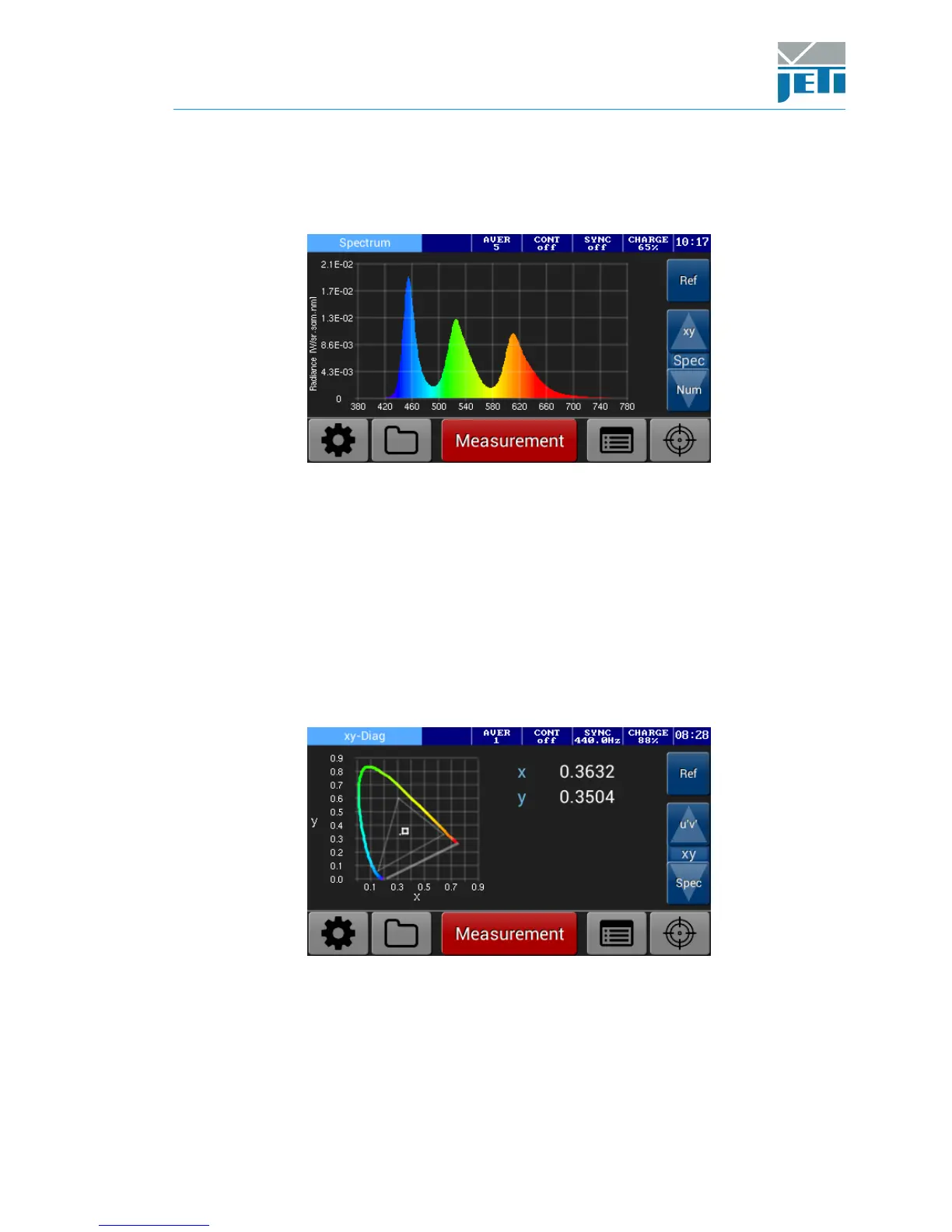

6.2.2 Spectrum
Light Spectrum of the latest measurement taken.
6.2.2.1 Modifying the spectrum range
The start and the end of the displayed spectrum can be adjusted through the context-
based Options, accessed from the Spectrum Screen.
6.2.3 xy Diagram
The CIE1931 chromaticity x, y values of the latest measurement taken.
6.2.3.1 Displaying the RGB-Color Space /-White Point
By tapping the checkbox you can display the RGB color triangle and the white point of
the choosen RGB color Space, through the context-based Options.
Copyright © 2017 JETI Technische Instrumente GmbH 19

Jeti spectraval 1501 Specifications

General

Brand	Jeti
Model	spectraval 1501
Category	Measuring Instruments
Language	English
