9629 Microprocessor Controller
- 34 -
9640
CWP PRECISION LATHE
MAXSTAR DX
9629
WIRE FEEDER

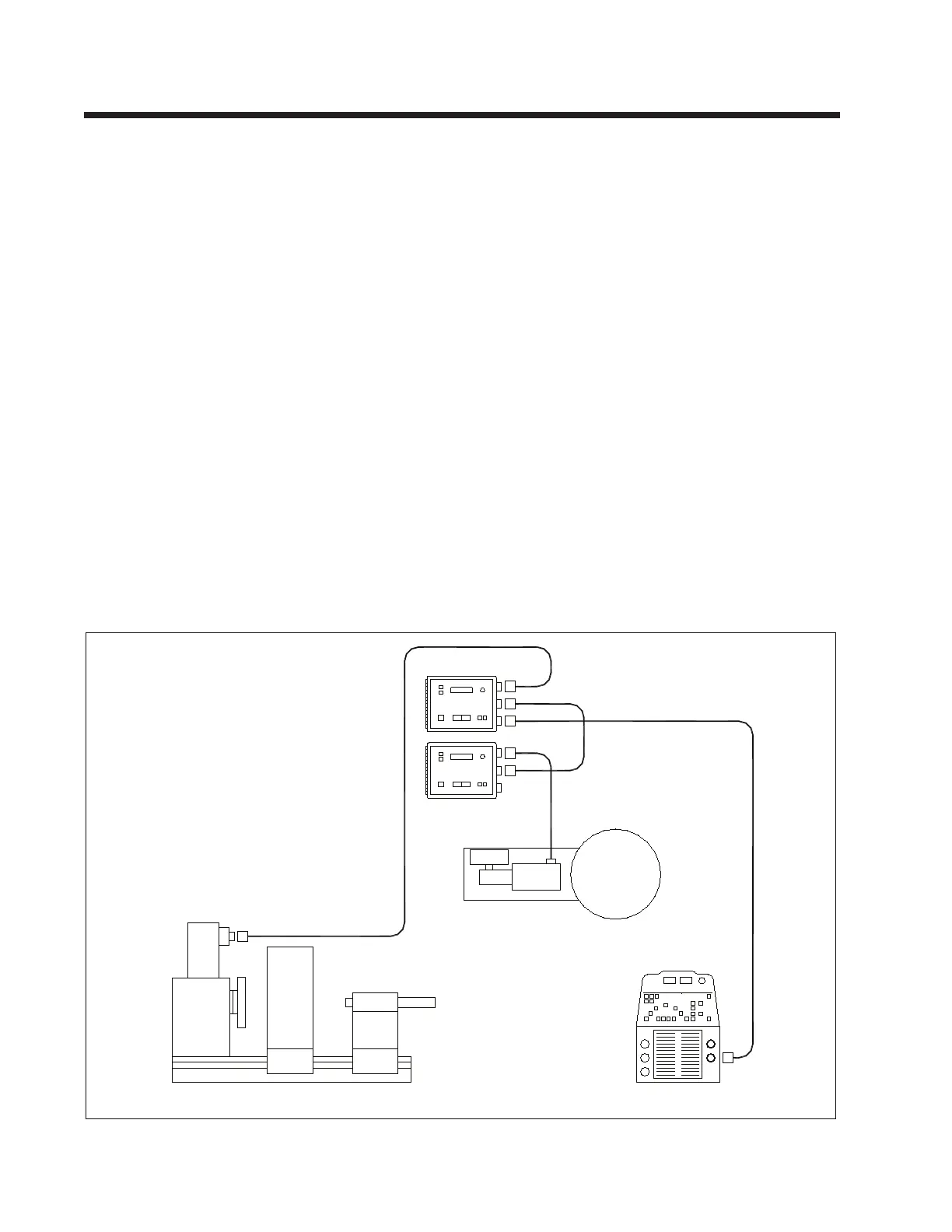

9629 CONTROL, WIRE FEEDER, ROTATIONAL FIXTURE, ALC AND POWER SUPPLY
ARC LENGTH
CONTROL
It is possible to produce a complete rotational
system by interfacing the 9629 control with an
arc length control and with a 9640 controlled
rotational xture. This creates a completely in-
tegrated welding system where the operation of
the start button on the 9640 control initiates the
start of the weld sequence. The preset start time
delays which have been set on the 9640 rotation
control, 9629 wire feed control and 9690 arc
length control operate automatically to provide
coordinated start of the various parameters. At
the end of the weld, operation of the 9640 stop
push-button initiates a controlled end of weld
sequence with downslope and wire and travel
stop delays.
Required Connections and Cables:
9629
S1: 9629 to arc length control
Cable: 9600S1-ALC-3
S2: 9629 to 9640 control
Cable: 9600S2-S2-3
S3: 9629 to wire drive motor
Cable: Included with wire feed head
9640
S1: 9640 to welding power supply.
Cable: 9600S1-DX10-15 (For Miller)
S2: 9640 to 9629 control
Cable: 9600S2-S2-3 (same cable as S2 above)
S3: 9640 to xture drive motor.
Cable: 9640S3-FIX-6
ALC & Wire Feeder Addition
(Longitudinal operation)
It is possible to produce a complete longitudinal
