9629 Microprocessor Controller
- 35 -
9627
CARRIAGE
MAXSTAR DX
9629
WIRE FEEDER

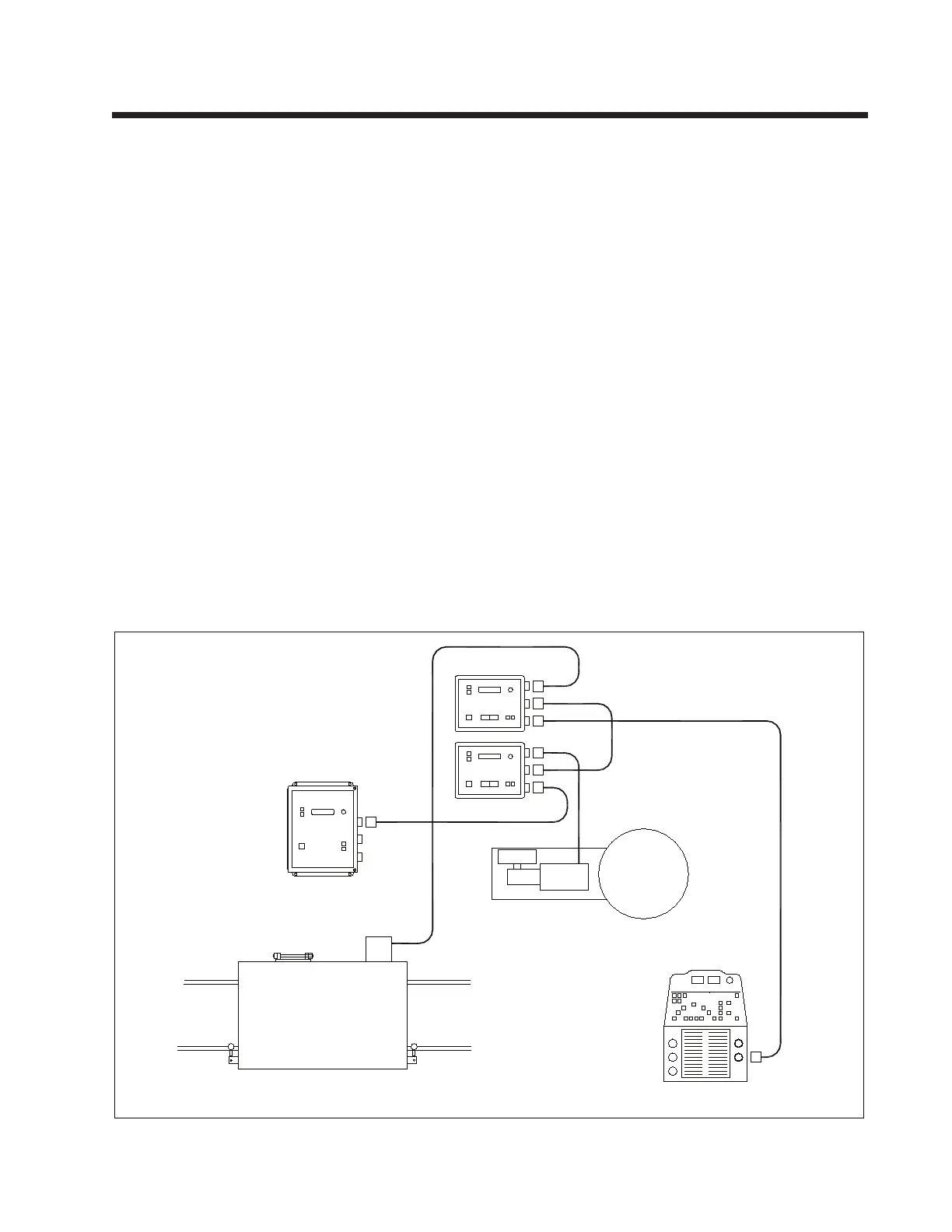

9629 CONTROL, WIRE FEEDER, CARRIAGE, ALC AND POWER SUPPLY
ARC LENGTH
CONTROL
system by interfacing the 9629 control with an
arc length control and with a 9627 controlled
carriage. This creates a completely integrated
welding system where the operation of the start
button on the 9627 control initiates the start of
the weld sequence. The preset start time de-
lays which have been set on the 9627 carriage
control, 9629 wire feed control and 9690 arc
length control operate automatically to provide
coordinated start of the various parameters. At
the end of the weld, operation of the 9627 stop
push-button initiates a controlled end of weld
sequence with downslope and wire and travel
stop delays.
Required Connections and Cables:
9629
S1: 9629 to arc length control
Cable: 9600S1-ALC-3
S2: 9629 to 9627 control
Cable: 9600S2-S2-3
S3: 9629 to wire drive motor
Cable: Included with wire feed head
9627
S1: 9627 to welding power supply.
Cable: 9600S1-DX10-15 (For Miller)
S2: 9627 to 9629 control
Cable: 9600S2-S2-3 (same cable as S2 above)
S3: 9627 to carriage drive motor.
Cable: Included with carriage
