2.2 Attaching the Handlebar
1. SEPARATE THE CLAMP BASES ON WHICH THE LONG SIDE IS FLAT FROM THE CLAMP TOPS ON WHICH THE LONG
SIDE IS SLIGHTLY ROUNDED.

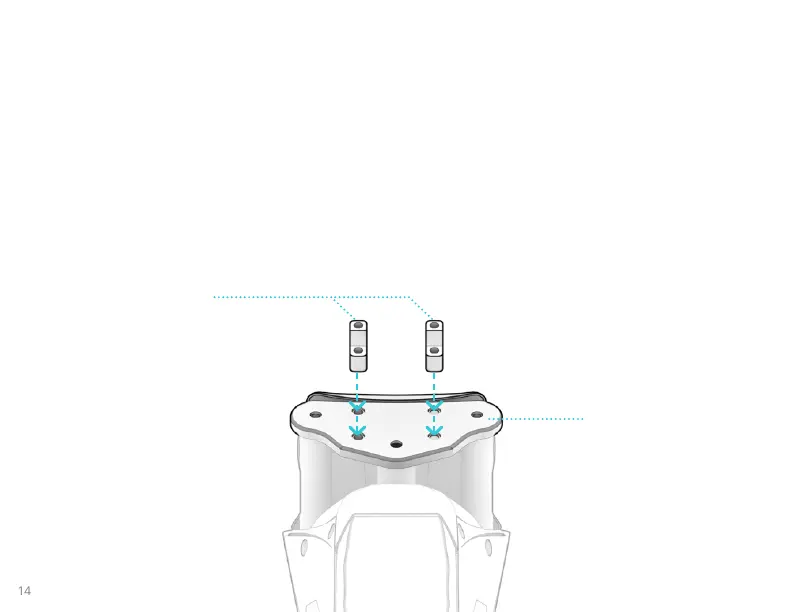

2. POSITION THE 2 CLAMP BASES ON THE HANDLEBAR PLATFORM SUCH THAT THE FLAT SIDE IS RESTING ON THE
PLATFORM AND THE 2 HOLES IN EACH CLAMP BASE ARE ALIGNED WITH THE 2 HOLES ON EACH SIDE OF THE
HANDLEBAR PLATFORM.
HANDLEBAR CLAMP BASES
HANDLEBAR PLATFORM
