3. WITHOUT DISTURBING THE CLAMP BASES, LIFT THE HANDLEBAR ONTO THE BASES SUCH THAT THE FOLLOWING
CONDITIONS ARE MET:
• THE BATTERY CHARGE DISPLAY IS ON THE RIGHT SIDE OF THE HORIZON AND THE HANDBRAKE IS ON THE LEFT.
• THE TWO GROOVED AREAS AT THE BOTTOM OF THE HANDLEBAR ARE RESTING IN THE CLAMP BASES.
4. HOLDING THE HANDLEBAR IN THAT POSITION, PLACE 1 CLAMP TOP OVER THE GROOVED AREA SUCH THAT THE 2 HOLES
IN THE CLAMP TOP ARE ALIGNED WITH THE 2 HOLES IN THE CLAMP BASE.
5. INSERT BUT DO NOT FULLY TIGHTEN 1 BOLT INTO EACH SET OF ALIGNED HOLES BY TURNING IT CLOCKWISE WITH
THE 6 MM ALLEN KEY.
6. REPEAT STEPS 3 4 WITH THE OTHER CLAMP TOP AND REMAINING 2 BOLTS.

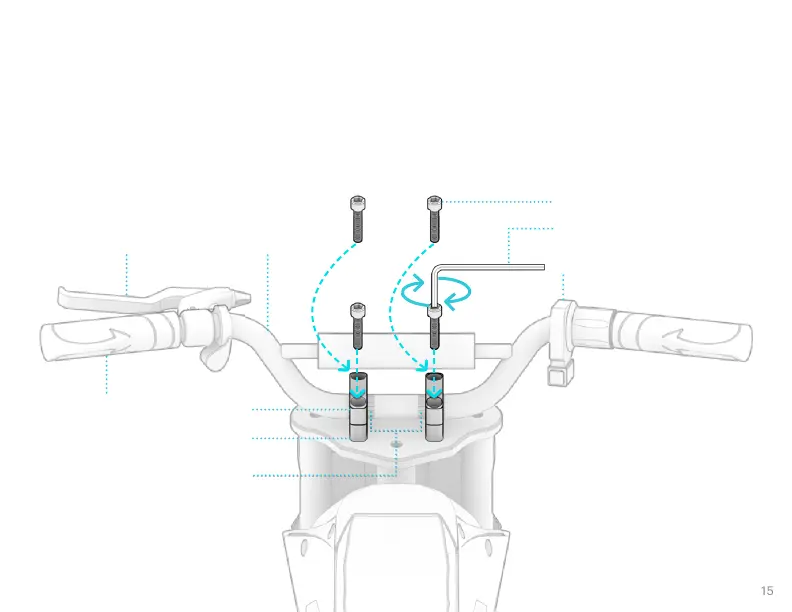

BOLT
6MM ALLEN KEY
GROOVES
CLAMP TOP
CLAMP BASE
HANDLEBARHANDBRAKE
BATTERY CHARGE DISPLAY
HAND GRIP
