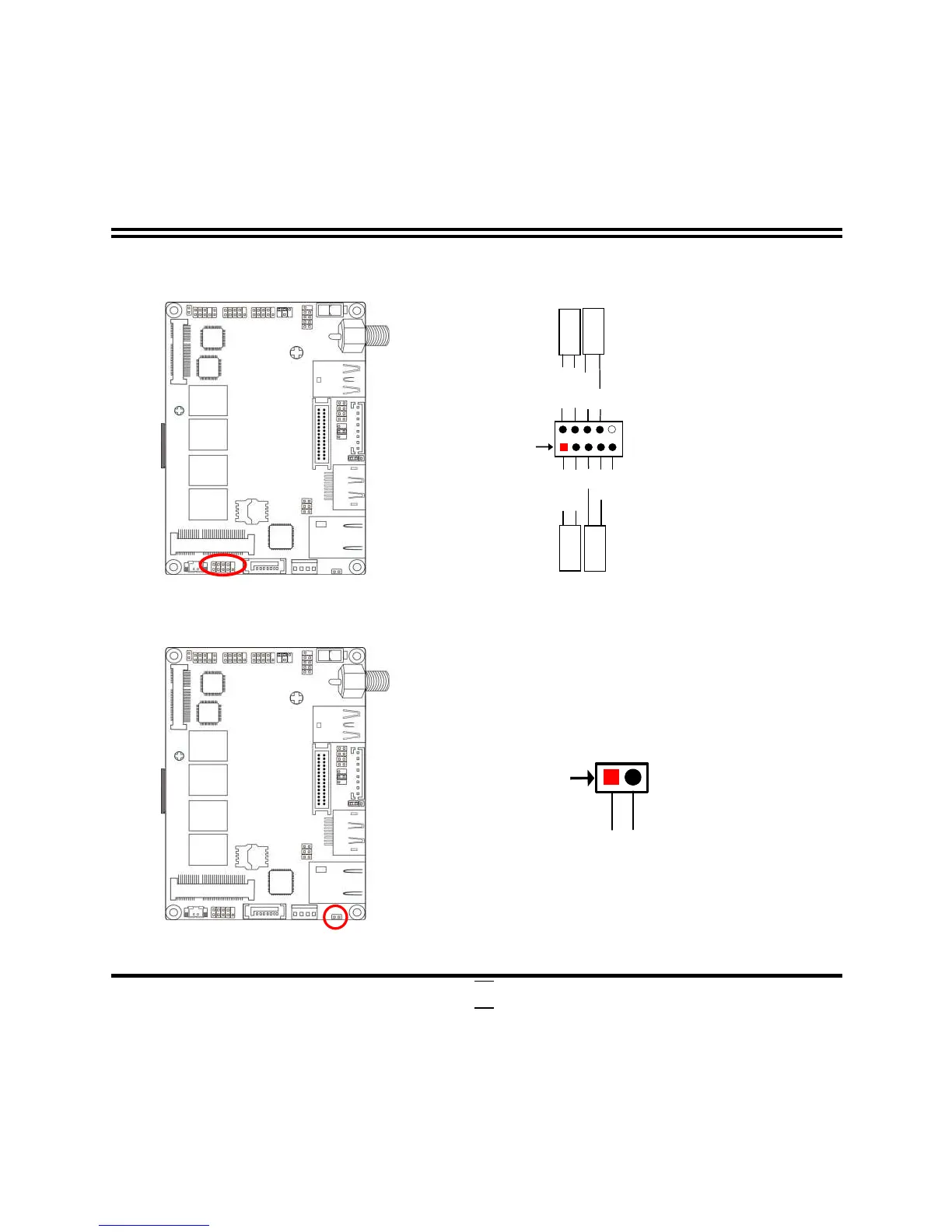

(4) JW_FP (9-pin): Front Panel Header
HDLED
RESET
HDDLED+
GND
PWRLED+
PWRBTN
GND
PWRLED-
HDDLED-
RSTSW
VCC
PWRBT
Pin 1
2
PWR LED
(5) LAN_LED (2-pin): LAN Activity LED Header
Pin1
LED+
LED-
