JETWAY NP591 - Headers

15
2-2-2 Headers

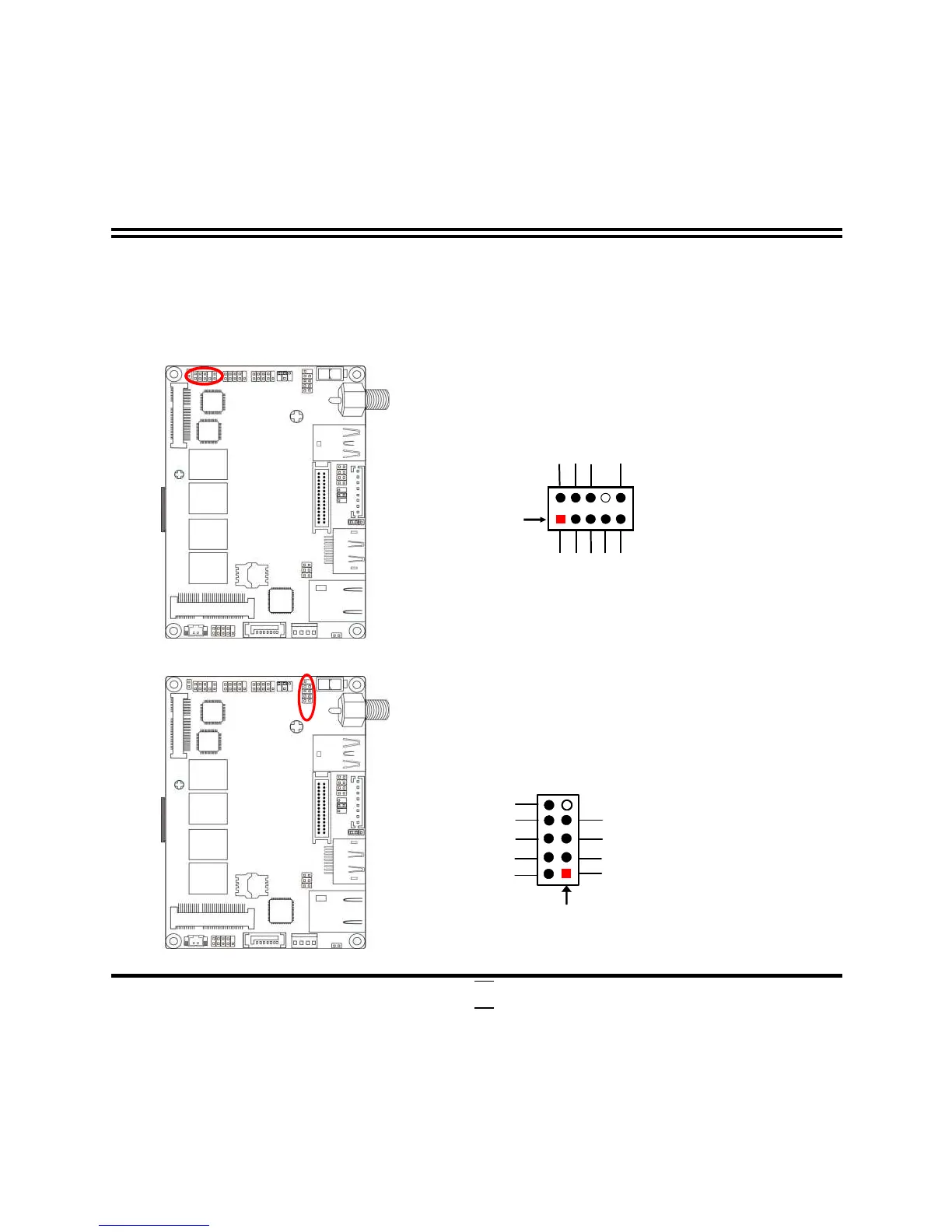

(1) FP_AUDIO (9-pin): Line-Out, MIC-In Header
This header connects to Front Panel Line-out, MIC-In connector with cable.
Pin 1
MIC2-L
LINE OUT-L
MIC2-R
LINE OUT-R
SENSE
GND
LINE_OUT_JD
MIC_JD
DETECT
2
(2) FP_USB20 (9-pin): USB 2.0 Port Header
+DATA
VCC
GND
Pin 1
VCC
-DATA
+DATA
GND
-DATA
NC
