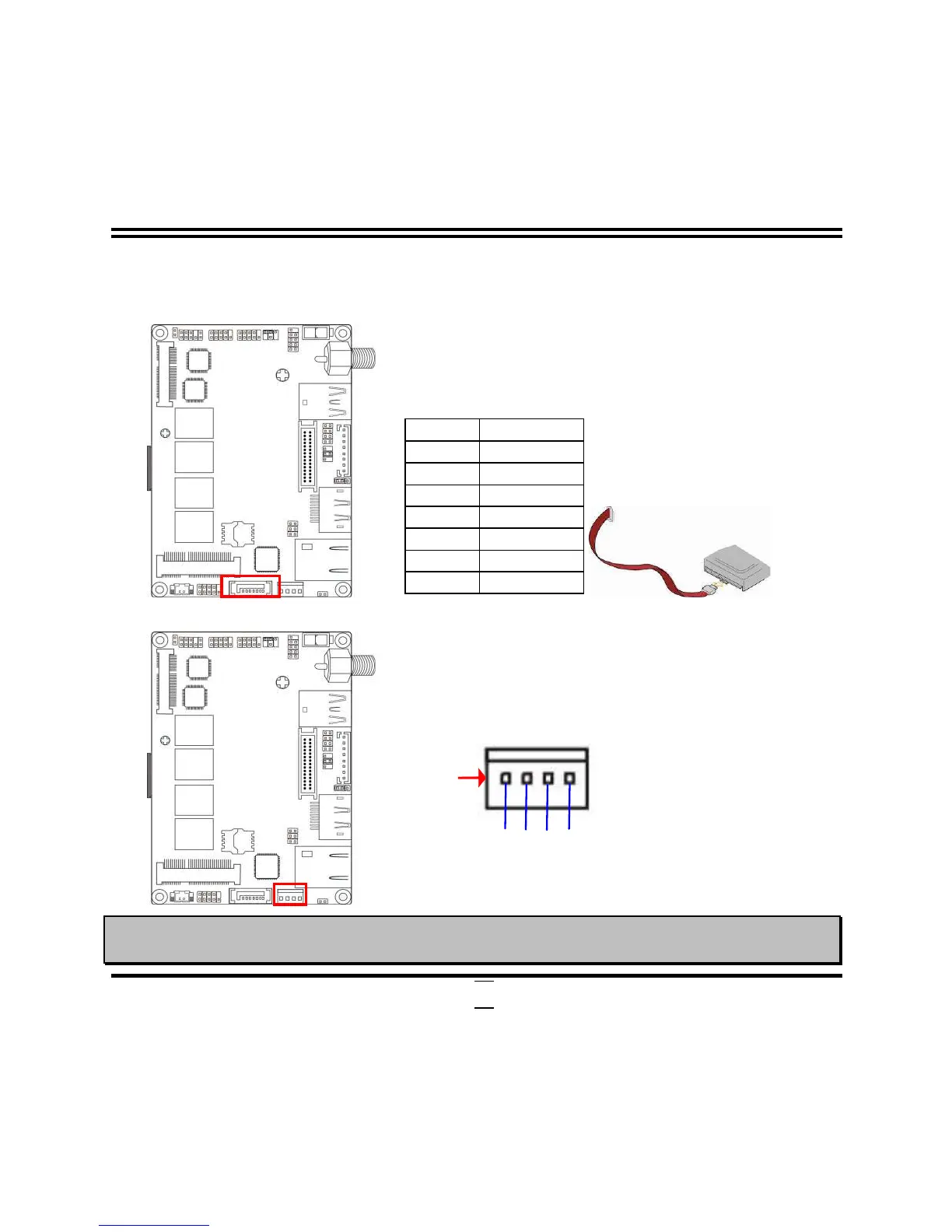

(3) SATA1 (7-pin): SATAIII Port connector
SATA1 port is a high-speed SATAIII port that supports 6GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(4) SATAPW(4-pin): SATA Power Connector
Pin 1
+5V
GND
+12V
GND
Warning: Make sure that Pin-1 of compatible SATA Power connector is inserted into corresponding
Pin-1 of SATA PW to avoid possible damage to the board and hard disk driver!
