13

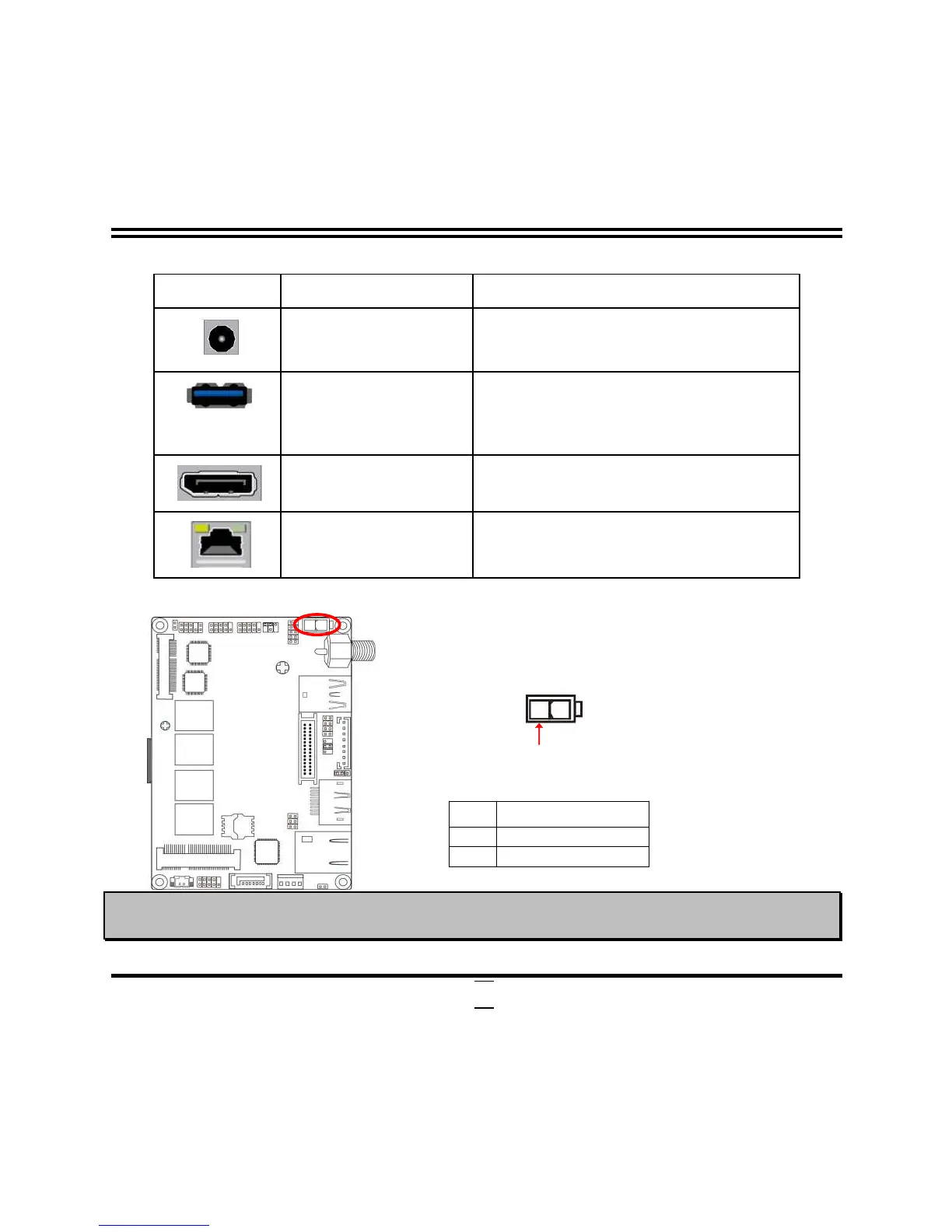

Icon Name Function
12V DC-in Power Jack
Connector
For user to connect compatible power
adapter to provide power supply for the
system.
USB 3.0 Port
To
connect USB keyboard, mouse or other
devices compatible with USB specification.
USB 3.0 ports supports up to
5Gbps data
transfer rate.
Display Port
To the system to corresponding
display
device with compatible DP cable.
RJ-45 LAN Port
This connector is standard RJ-45
LAN jack
for Network connection.
(2) ATX2P (2-pin Block): Internal 12V DC-in Power Connector
Pin1
Pin.
Definition
1 GND
2 +12V DC_IN
Warning: Find Pin-1 position before connecting power cable to this 2-pin power connector. WRONG
INSTALLATION DIRECTION WILL DAMAGE THE BOARD!!
