Chapter 2
Hardware Installation
2-1 Jumper Setting

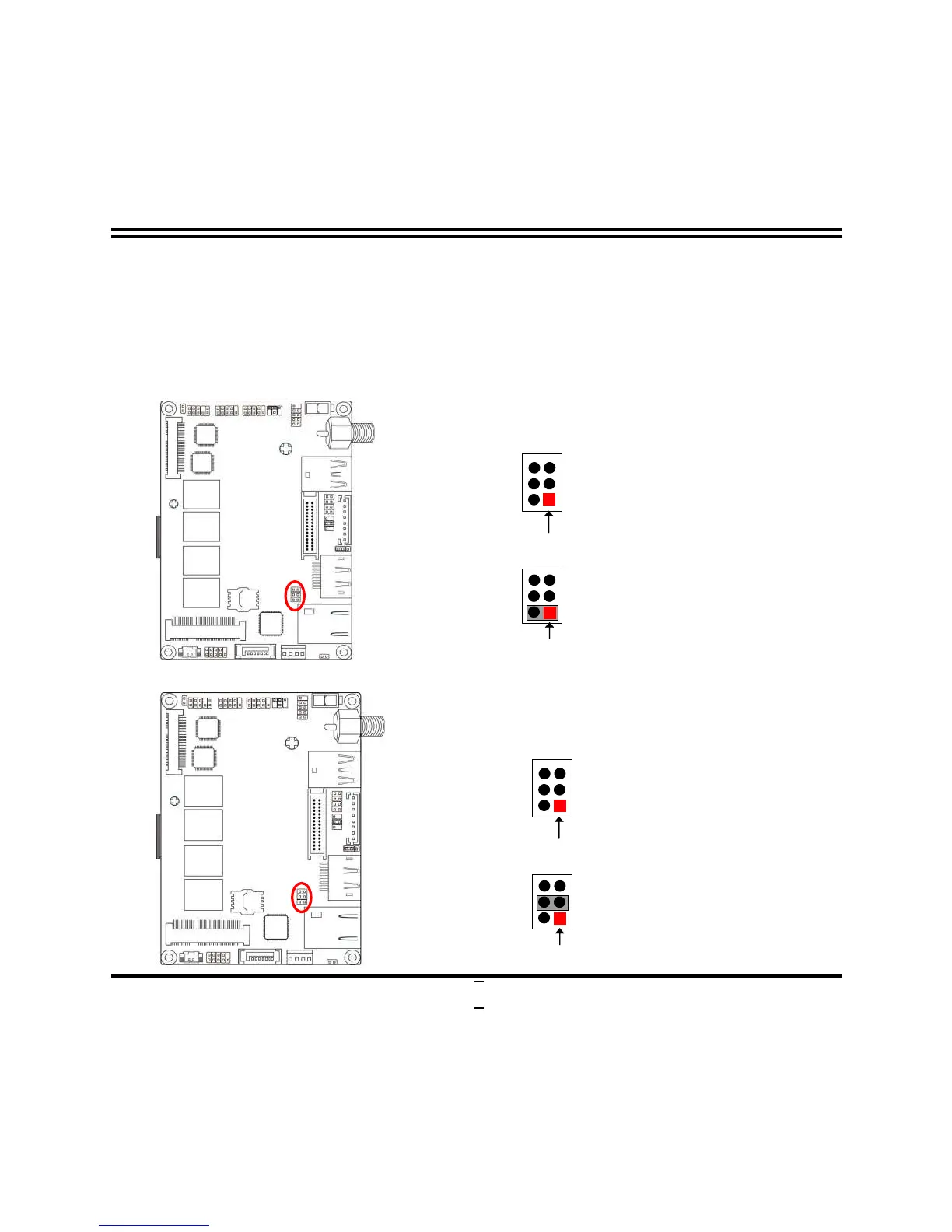

Pin 1&2 of JP1 (6-pin): Clear CMOS RAM Function Setting
Pin 1&2 of JP1 → Clear CMOS
RAM
Pin 1
1-2 Closed:
Clear CMOS(One Touch).
1-2 Open: Normal;
Pin 1
2
2
5
6
5
6
Pin 3&4 of JP1 (6-pin): Reset all RTC Register Bits
Pin 1
3-4 Closed:
Rest RTC Register
(One Touch).
3-4 Open: Normal;
Pin 1
2
2
5
6
5
6
Pin 3&4 of JP1 → Reset RTC Register
