JETWAY NP591 - 2-2 Connectors and Headers

12
1
2
Pin 1-2: Close
Pin 3-4: Open
Pin 5-6: Close
Pin 7-8: Open
1366 x 768 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Close
Pin 7-8: Open
1440 x 900 @ 60Hz 18-bit
1
2
Pin 1-2: Close
Pin 3-4: Close
Pin 5-6: Open
Pin 7-8: Open
1440 x 900 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Close
Pin 5-6: Open
Pin 7-8: Open
1280 x 1024 @ 60Hz 24-bit
1
2
Pin 1-2: Close
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Open
1680 x 1050 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Open
1920 x 1080 @ 60Hz 24-bit

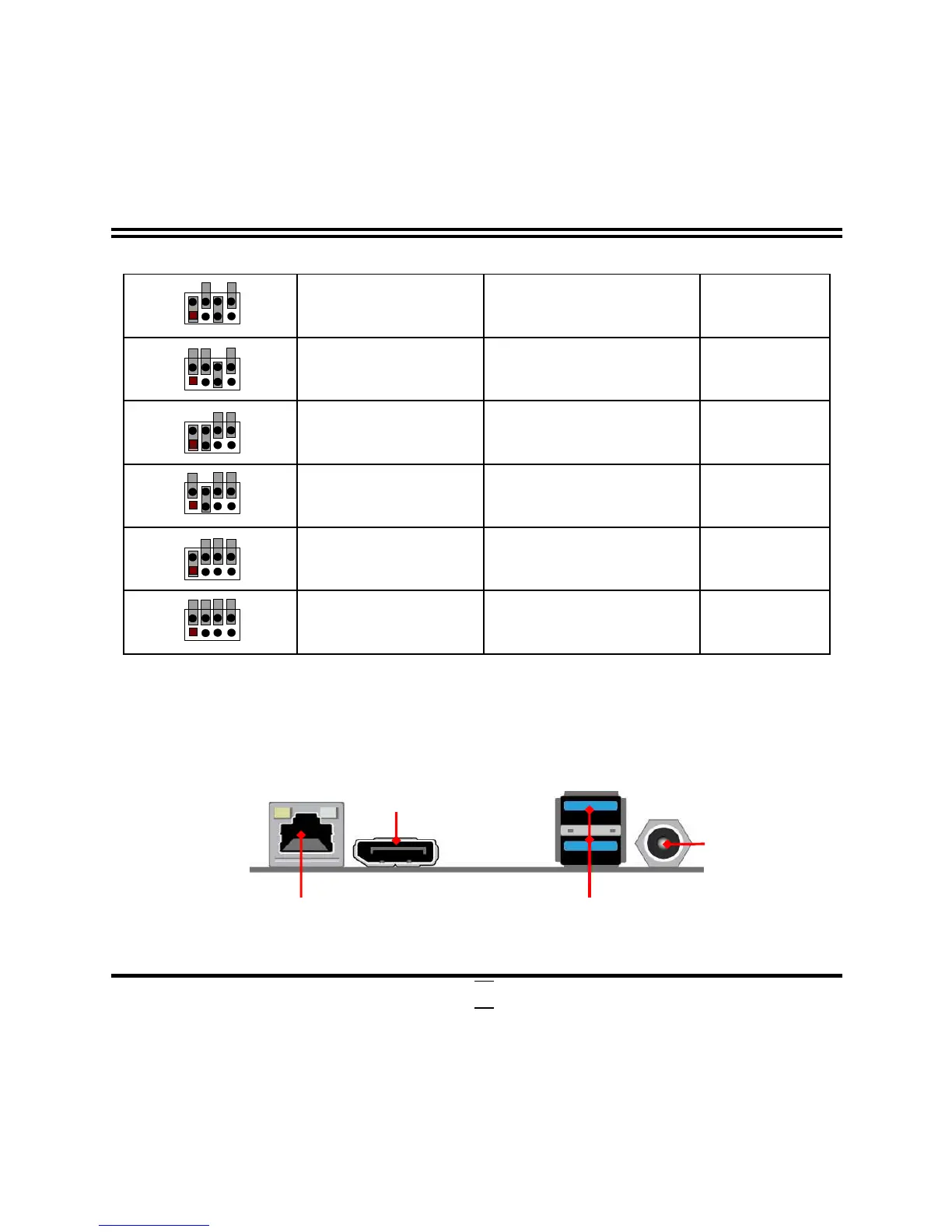

2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
*Note: Display port may be replaced by HDMI port option by customized order.
12V DC-in
Power Jack
*
Display Port
USB 3.0 Ports
RJ-45 LAN Port
