Open: in which user leave jumper hat just in pin 2, pin4, pin6 or pin8.

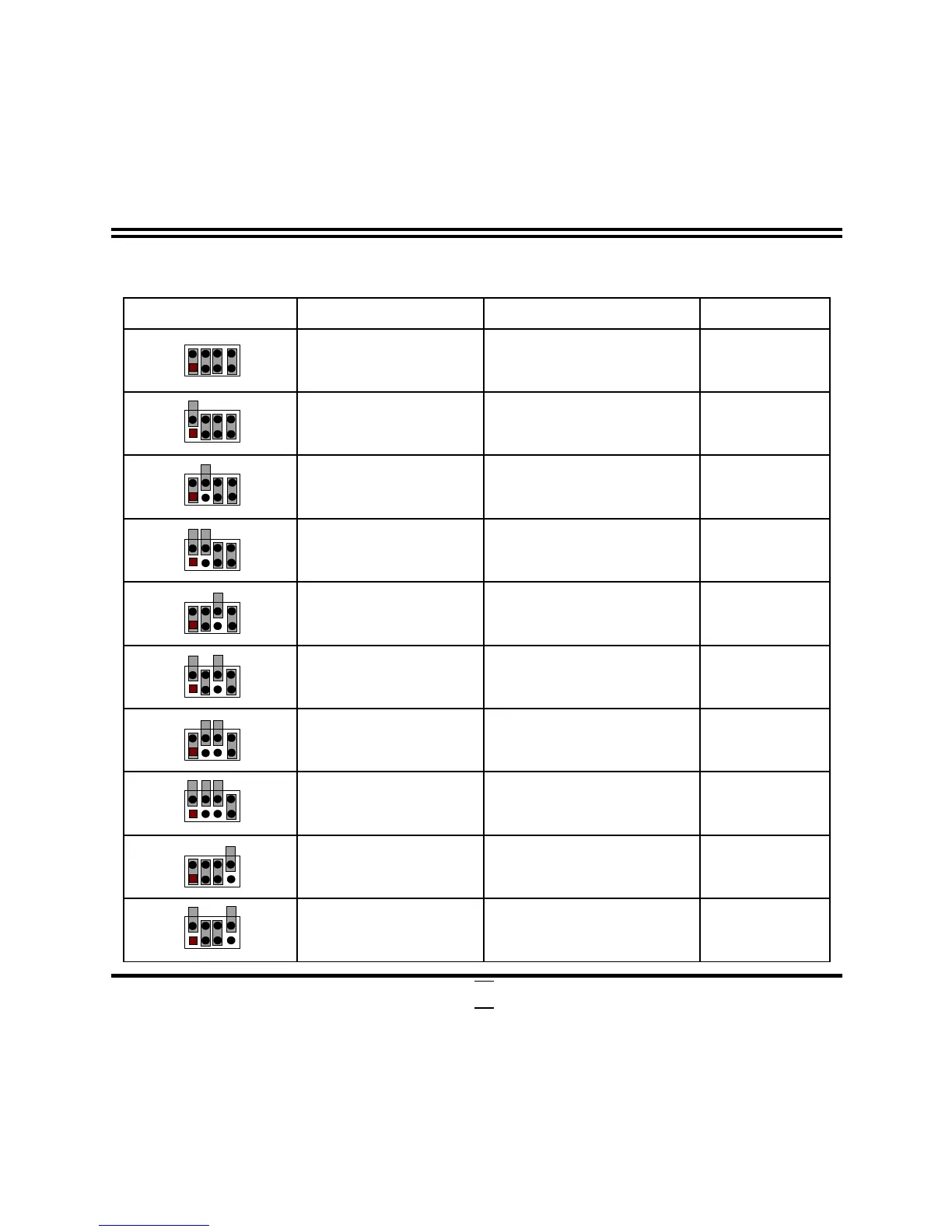

Jumper Setting Description Panel Resolution Color Depth
1
2
Pin 1-2: Close
Pin 3-4: Close
Pin 5-6: Close
Pin 7-8: Close
800 x 480 @ 60Hz 18-bit
1
2
Pin 1-2: Open
Pin 3-4: Close
Pin 5-6: Close
Pin 7-8: Close
800 x 600 @ 60Hz 18-bit
1
2
Pin 1-2: Close
Pin 3-4: Open
Pin 5-6: Close
Pin 7-8: Close
800 x 600 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Close
Pin 7-8: Close
1024 x 600 @ 60Hz 18-bit
1
2
Pin 1-2: Close
Pin 3-4: Close
Pin 5-6: Open
Pin 7-8: Close
1024 x 768 @ 60Hz 18-bit
1
2
Pin 1-2: Open
Pin 3-4: Close
Pin 5-6: Open
Pin 7-8: Close
1024 x 768 @ 60Hz 24-bit
1
2
Pin 1-2: Close
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Close
1280 x 768 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Open
Pin 5-6: Open
Pin 7-8: Close
1280 x 800 @ 60Hz 18-bit
1
2
Pin 1-2: Close
Pin 3-4: Close
Pin 5-6: Close
Pin 7-8: Open
1280 x 800 @ 60Hz 24-bit
1
2
Pin 1-2: Open
Pin 3-4: Close
Pin 5-6: Close
Pin 7-8: Open
1366 x 768 @ 60Hz 18-bit
