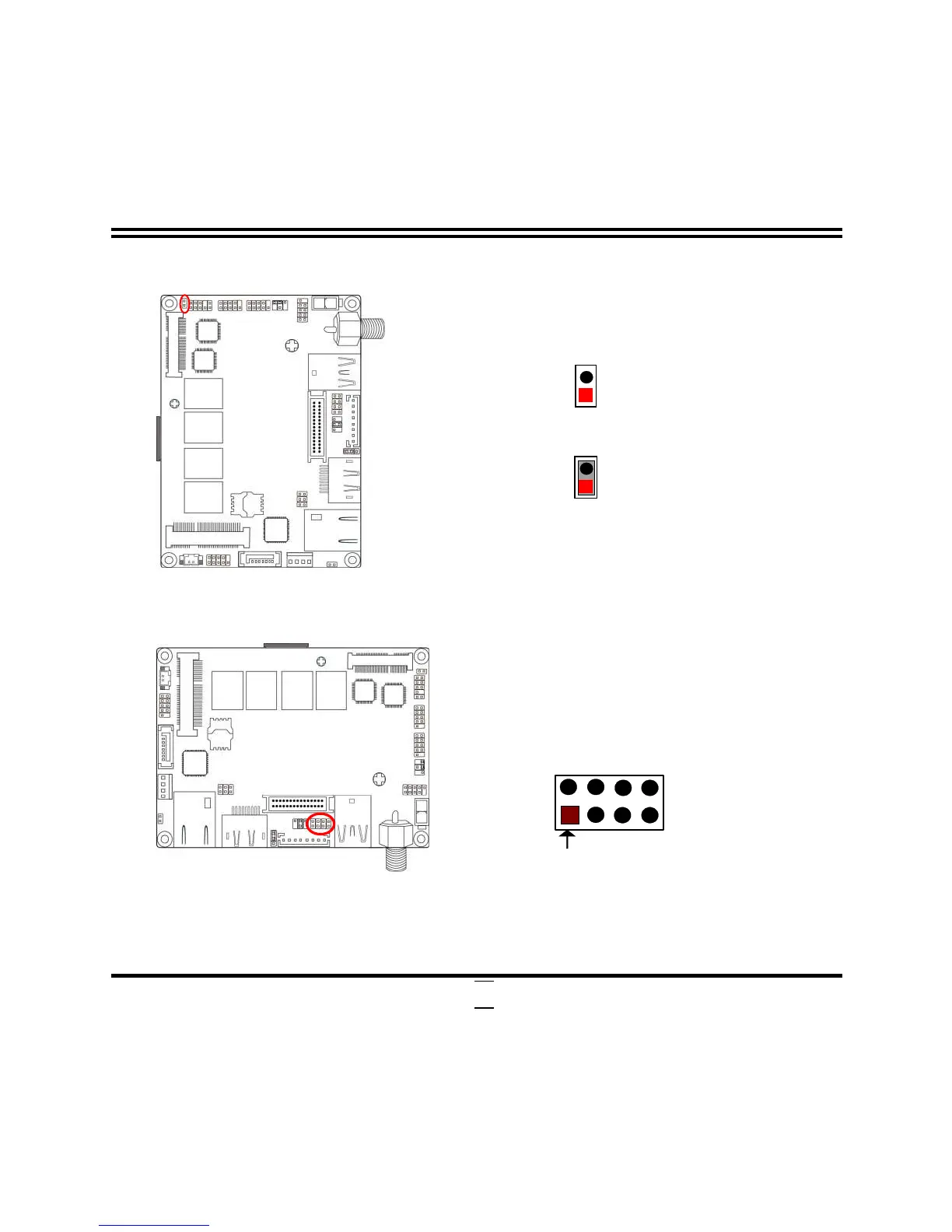

AT_MODE (2-pin): AT Mode Function Select
1-2 Closed: AT Mode Selected.
AT-MODE
1
2
1-2 Open: Normal;
1
2
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
JP4 (8-pin): LVDS Panel Resolution Type Select
Pin1
2
8
7
JP4
User can select LVDS panel resolution by jumper settings. There are two basic setting
modes:

Close: in which user can close pin1-pin2, pin3-pin4, pin5-pin6, pin7-pin8
respectively;
