JETWAY NP591 - Page 14

9

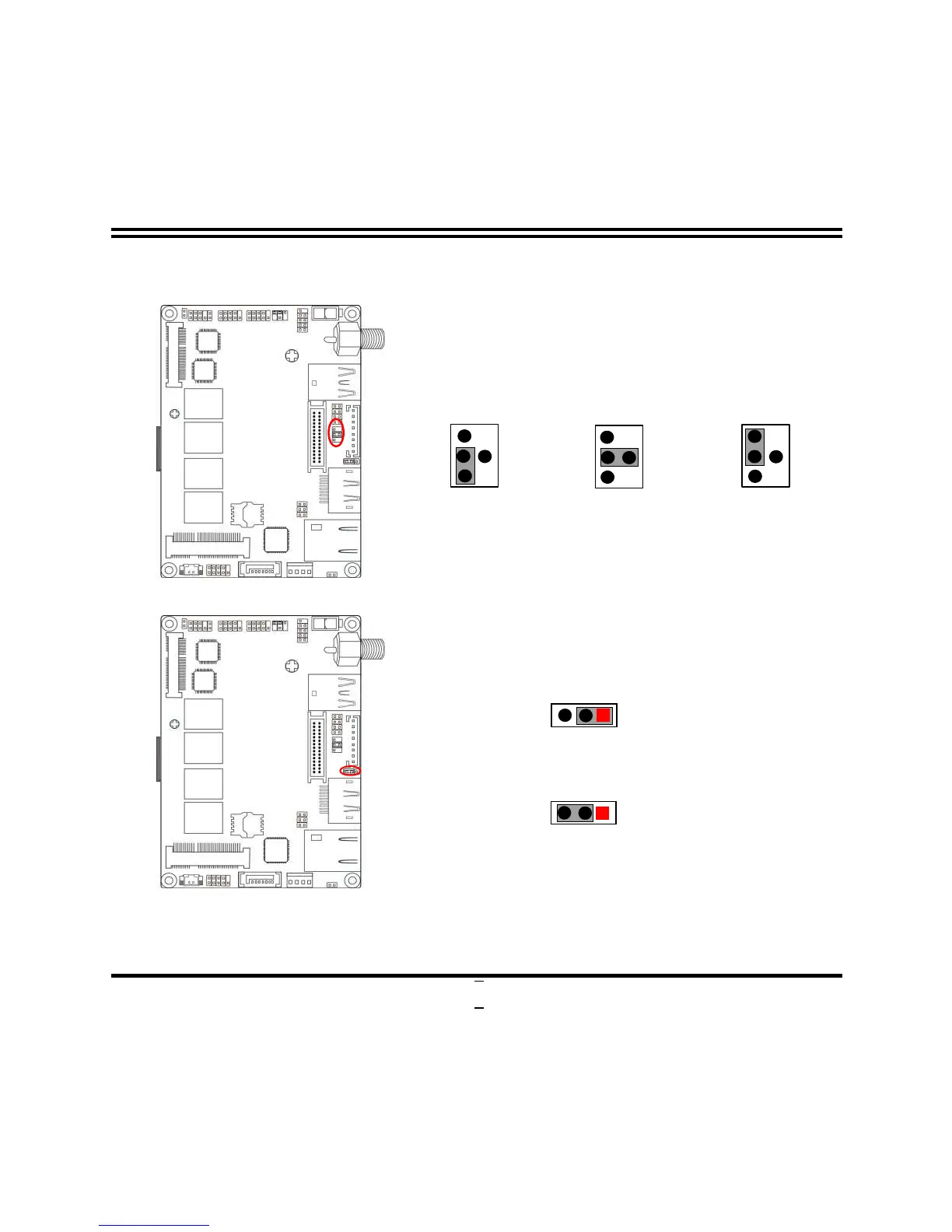

JP5 (4-pin): LVDS VCC 3.3V/5V/12V Select
JP5→LVDS VCC
1
3
5
4
6
2
6
5
3
1
4
2
5
3
1
6
4
2
2-4 Closed:
VCC = 3.3V
3-4 Closed:
VCC = 5V;
4-6 Closed:
VCC = 12V;
JP6 (3-pin): INVERTER Backlight 5V/12V Select
JP6→INVERTER Backlight
1-2 Closed: Inverter Backlight= 5V;
3
1
2-3 Closed: Inverter Backlight= 12V.
3
1
Note ： Maximum current limit is 1A.
