Note:
Pay attention to the proper mounting of cardan parts.

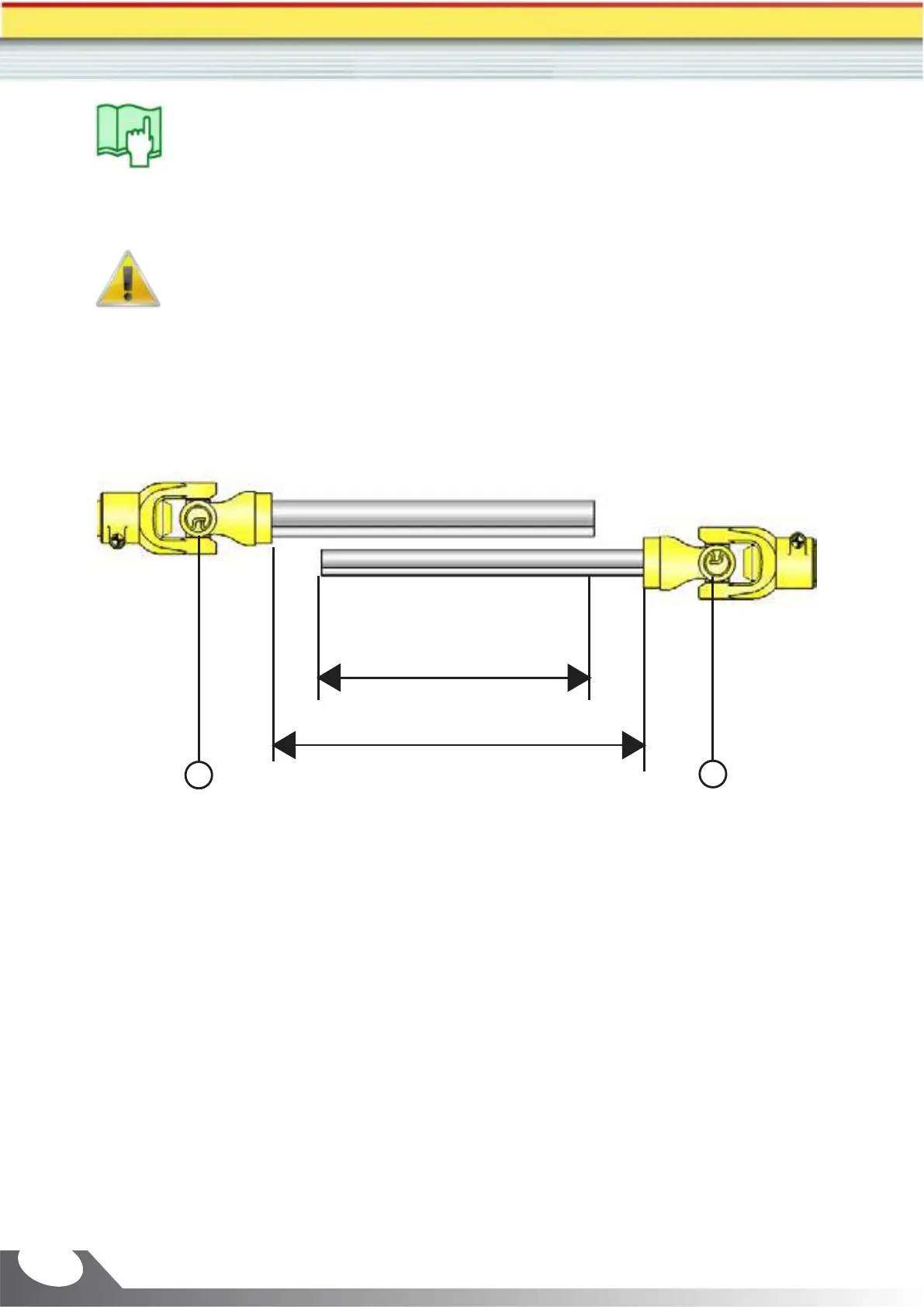

The locking eyes (5) of the tube universal joint cross and the rod must point the
same direction as shown below.
Attention:
1- The non compliance with minimum requirements of the cardan (see
illustration) may result in its own rupture and the launching of parts in
undetermined directions.
2- The misalignment of the cardan locking eyes will result in a high vibration
level and the cardan rupture which maycause serious injuries to those who
are near.
5
5
Bigger than
L/3
L
