USR-TCP232-410S User Manual
38 / 46

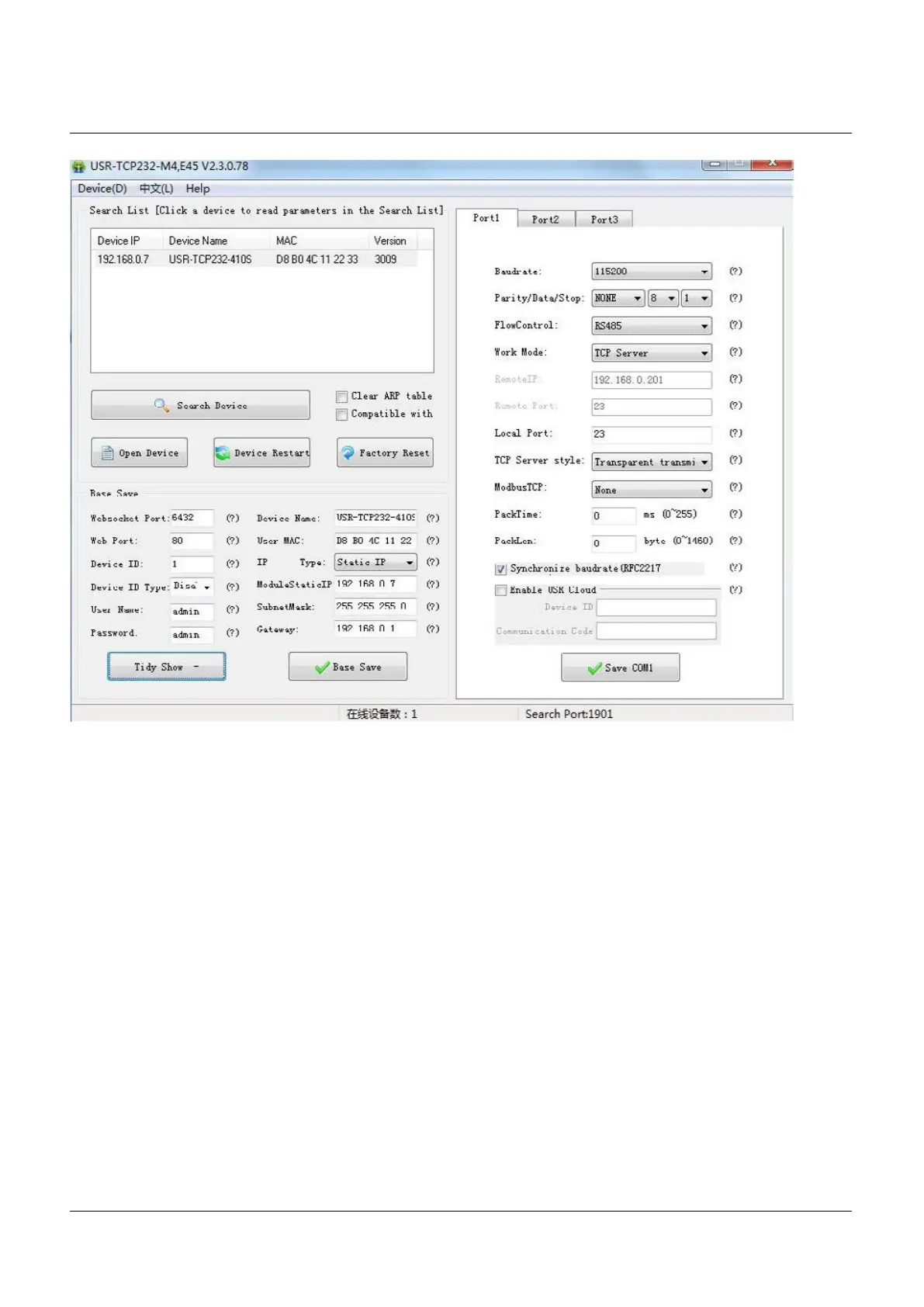

Software Configuration-Base Save
 Websocket port: refer to Chapter 4.1.8.3 Webpage to serial
 Webpage port: it is 80 by default when visit webpage.
 Device ID: refer to Chapter 4.1.8.6 Device ID
 Device ID type: sending ID type
 User name: Authentication Code for revising parameter to avoid other users within same LAN
revising it.
 Password: same as user name.
 Device Name: 410S’s name an be revised.
 MAC address: 410S’ MAC
 IP address type: Static and DHCP
 410S static IP: same segment with router.
 Subnet Mask: 255.255.255.0 by default.
 Gateway: it is router IP generally, can transmit cross network segment and DNS if set correctly.
3. Port n configuration(RS232/RS485 Port configuration)
Click the COM to set, revise parameter then click “Save COM1”.
