Jline Quattro - 10.2 Servo Reversing; 10.3 Setting Reversing Switches

10
QUATTRO MANUAL
SERVO REVERSING
After radio installation, it is imperative that the
proper servo/control system direction be
established. Servo reversing allows you to alter the
direction of the servo/control surface movement to
match the direction of the transmitter stick. Please
refer to the chart in the following section below to
determine the proper control surface direction.
SETTING REVERSING SWITCHES
1. Connect all control linkages and check to see
that all servos move freely.
2. While standing directly behind the airplane, go
through the steps shown in the charts below to
check proper direction of the control surface.
3. Using the Servo Reversing Switches located
behind the Transmitter Battery Pack, adjust the
direction of each servo for proper operation.
10.2
10.3
Left
Rudder
Full Throttle
Down Elevator
Right
Aileron
Up Elevator
Left
Aileron
Idle
Right
Rudder
Full Throttle
Left
Rudder
Idle
Right
Rudder
Down Elevator
Right
Aileron
Left
Aileron
Up Elevator
RudderElevator
Aileron
Throttle

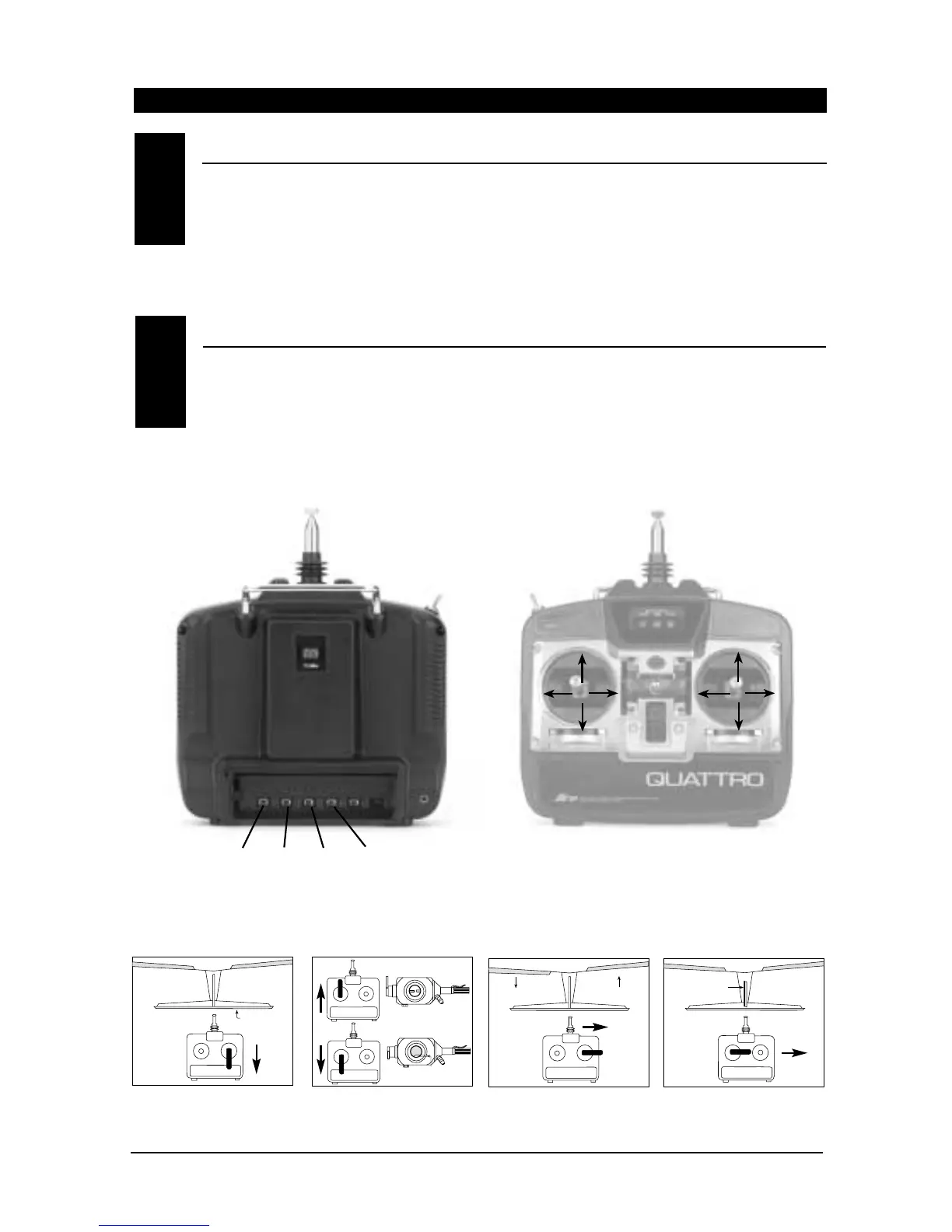

Servo Reversing Switches
(Located behind Transmitter Battery Pack)
(Mode II Transmitter Shown)
Carburetor
Low (Idle)
High (Full)
1/16"
Elevator
Aileron Up
Aileron Down
Rudder
Up Elevator
Throttle
Right Aileron
Right Rudder
