QUATTRO MANUAL
FLIGHT PACK CONNECTIONS

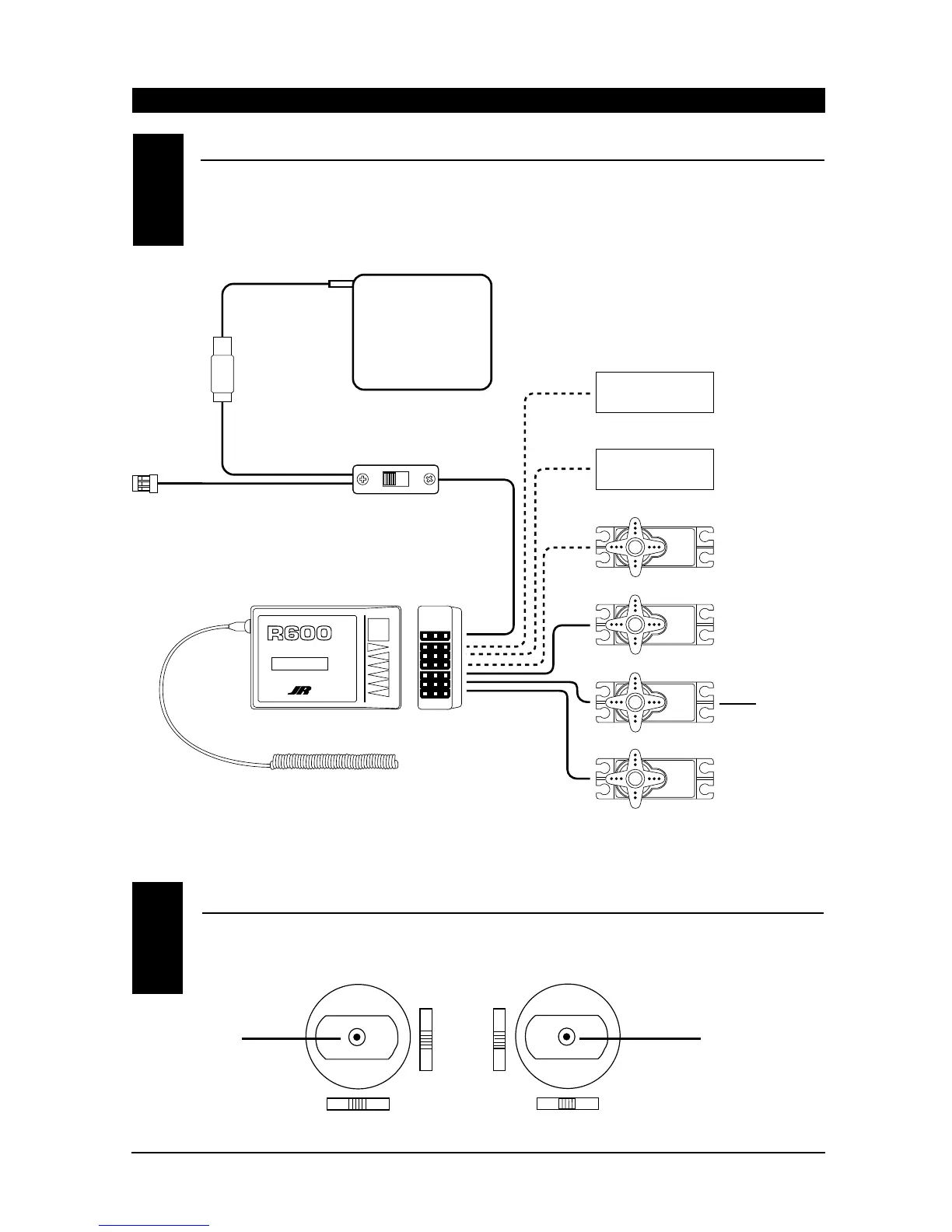

Connect all flight pack components of your Quattro System as outlined in the diagram below:
9. PRE-INSTALLATION SYSTEM PREPARATION
ON
OFF
BATT
AUX 1
GEAR
RUDD
ELEV
AILE
THRO
6 CH 72MHz FM RECEIVER
ABC&W INTERFERENCE
PROTECTION SYSTEM
9.1
Receiver Battery
4N600
Not Used With
4-Channel System
Not Used With
4-Channel System
Rudder
Elevator
Aileron
Throttle
Note: On some types
of 2 and 3-channel
aircraft, the rudder
servo is plugged
in here.
On/Off Switch Harness
(JRPA003)
Connect to Charger
for Charging
R600 Receiver
Antenna
TRANSMITTER PREPARATION
Adjust each of the 4 trim levers (aileron, elevator, rudder, and throttle) to the center position.
9.2
Gimble
Gimble
