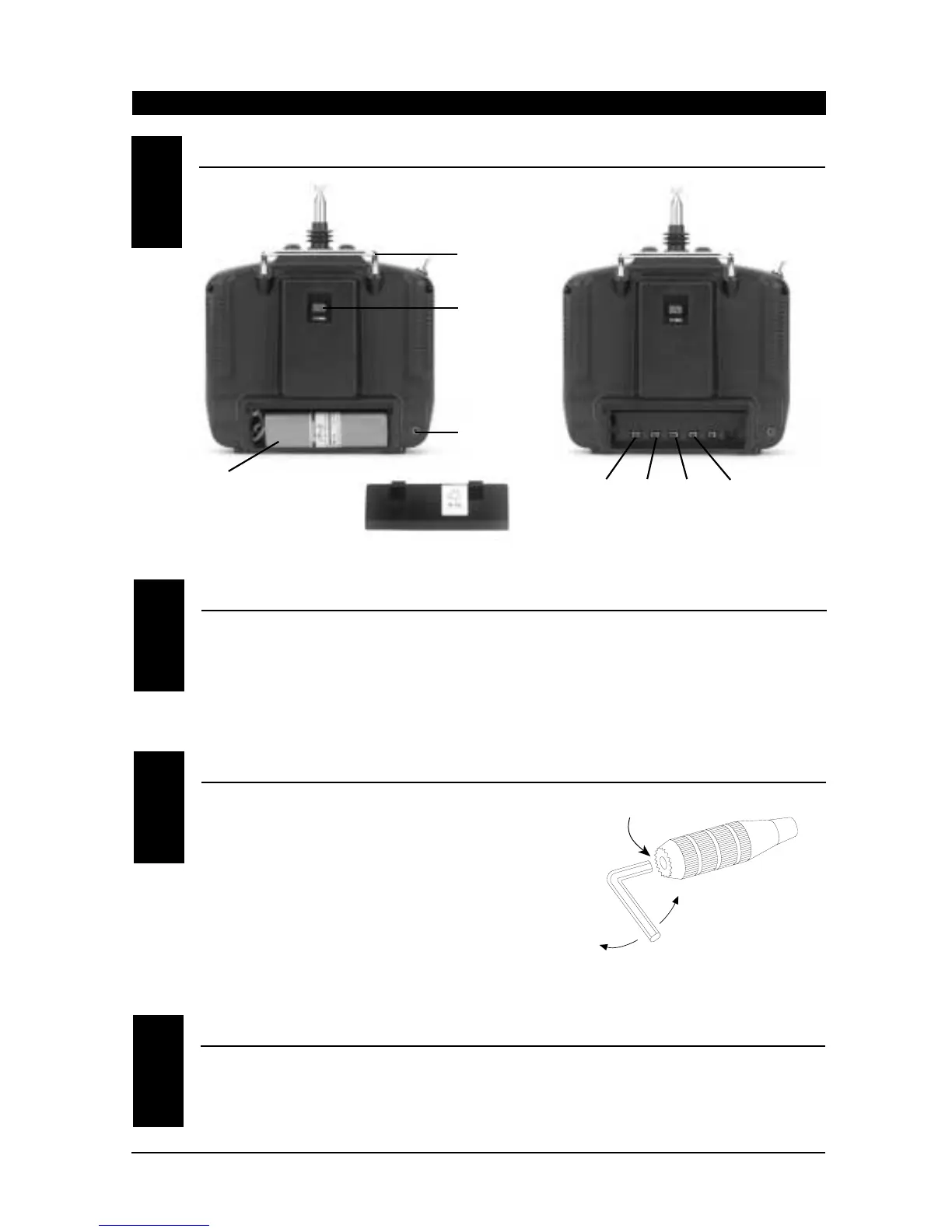

QUATTRO MANUAL
TRANSMITTER LAYOUT
3.2
TRANSMITTER SPECIFICATIONS
CONTROL STICK LENGTH ADJUSTMENT
NECK STRAP ATTACHMENT
Model Number NET-E104
RF 72MHz
Modulation PPM (FM)
There is an eye hook on the front of the transmitter
for attaching an optional neck strap (JRPA023). The
eye hook is precisely positioned (see Section 3.2)
so that the transmitter will be perfectly balanced
when a neck strap is used.
To adjust the control stick length, use a 2mm Allen
wrench to unlock the set screw located inside the
end of the control stick. Turn the set screw
counterclockwise to loosen it, then turn the knurled
portion of the stick to adjust the length.
Counterclockwise will lengthen the stick and
clockwise will shorten it. After the control stick(s)
has been adjusted to suit your flying style, tighten
the set screw.
LOOSEN
TIGHTEN
SET SCREW
3.3
3.4
3.5
9.6V 600mAh NiCad
Transmitter Battery Pack
Trainer Cord Jack
Transmitter
Frequency Crystal
Set Screw
Loosen
Tighten
RudderElevator
Aileron
Throttle
Carrying Bar
Servo Reversing Switches
(Located behind Transmitter Battery Pack)
Output Power Approximately 750mw
Current Drain 150mAh
Power Source 1.2V x 8 NiCad (9.6V 600mAh)
Output Pulse 1.0 –2.0ms
Back Cover
To Next Page
