QUATTRO MANUAL
RECEIVER SPECIFICATIONS
Model Number NER-600
Type 6-Channel FM
ABC&W
Frequency 72MHz
Sensitivity
(Microseconds
)
5ms Minimum
Selectivity 8KHz/50db
Weight 1 oz.
Size (W x L x H) 1.43" x 2.06" x .55"
Receiver Antenna 39" for all Aircraft
Frequencies
RECEIVER FEATURES
• Patented ABC&W noise rejection system for
increased interference protection
• Compact, lightweight design provides easy
installation into most model designs
• State-of-the-art surface mount technology (SMT)

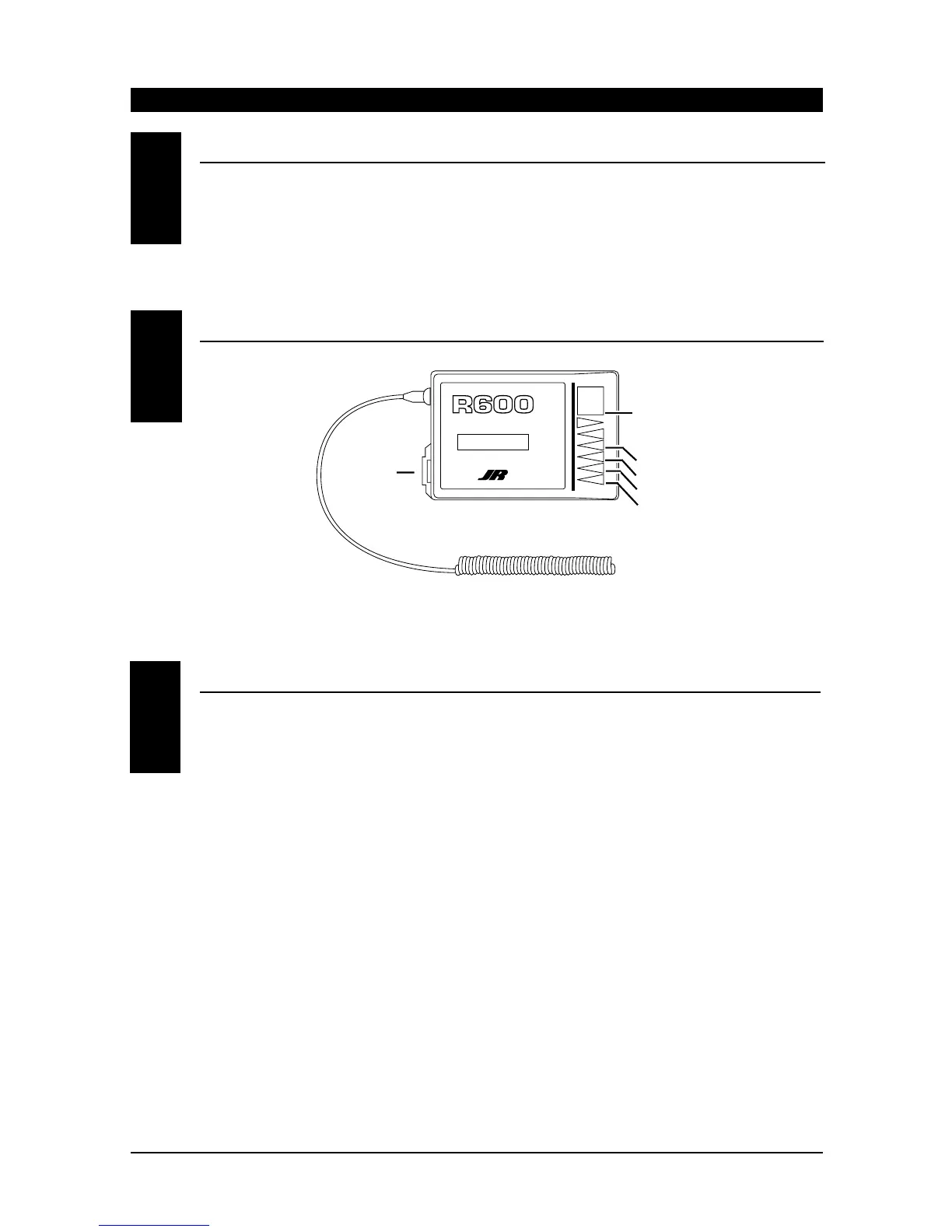

RECEIVER LAYOUT
4. NER-600 RECEIVER
BATT
AUX 1
GEAR
RUDD
ELEV
AILE
THRO
6 CH 72MHz FM RECEIVER
ABC&W INTERFERENCE
PROTECTION SYSTEM
4.1
4.2
4.3
Antenna
R600 Receiver
Battery (Switch Harness)
Rudder
Receiver
Frequency
Crystal
Elevator
Aileron
Throttle (Engine)
