QUATTRO MANUAL
5. 577 SERVO
SERVO FEATURES
• A zero deadband amplifier ensures
accurate neutral centering
• Low current drain
• An indirect drive feedback potentiometer
gives additional protection from vibration
• State-of-the-art surface mount technology (SMT)
• A 3-pole ferrite cored motor for reliability
• Wide speed output shaft bushings for
increased precision
577 SERVO SPECIFICATIONS
Torque (oz/in) 43 oz.
Speed
(sec./60°) .25 sec/60°
Weight
(oz.) 1.47
Size (WxLxH) 0.73" x 1.52" x 1.32"
Motor 3-Pole Ferrite

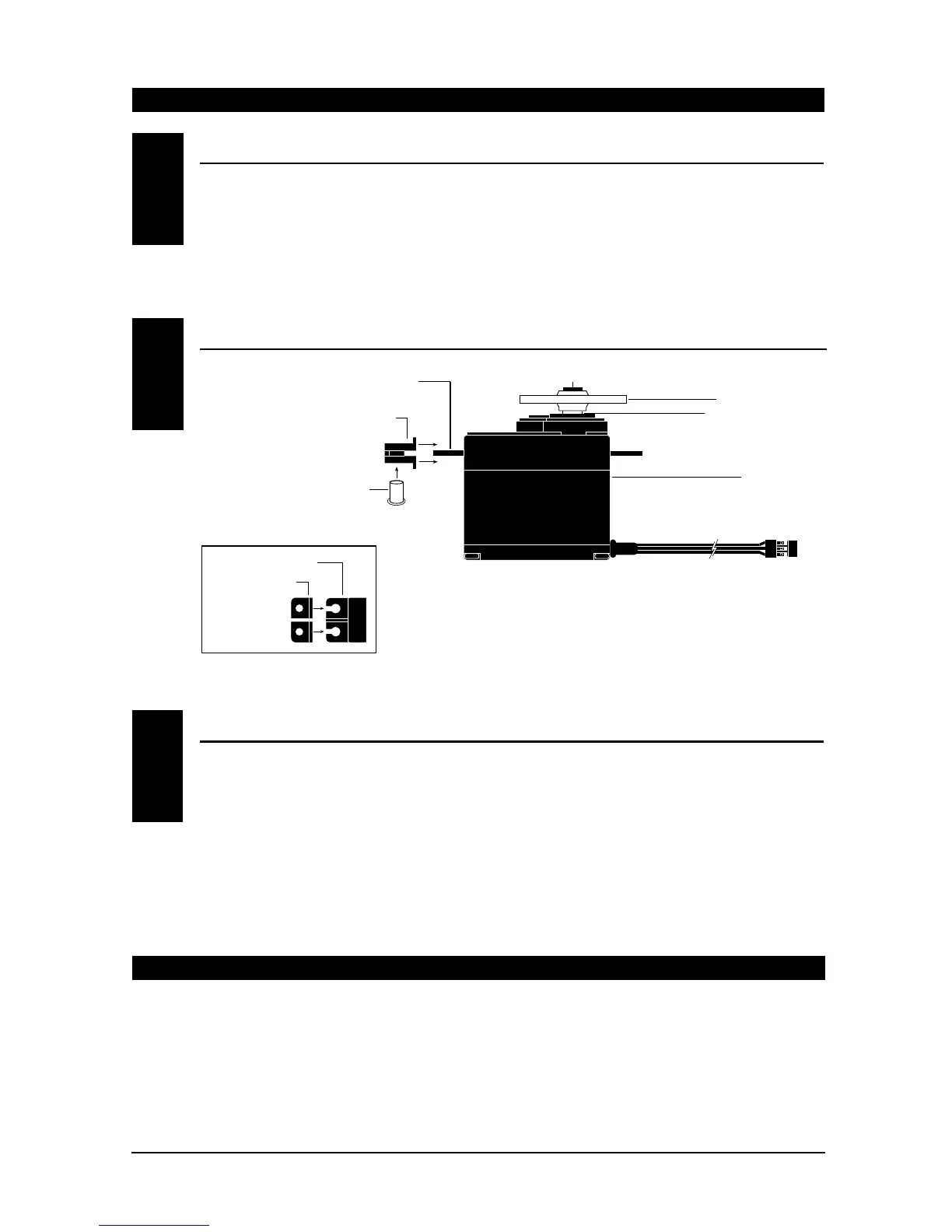

SERVO LAYOUT
5.1
5.2
5.3
6. AIRBORNE (RECEIVER) BATTERY PACK
Model Number 4N600
Voltage 1.2V x 4 NiCad (4.8V 600mAh)
Size (WxLxH) 2.24" x .59" x 2.05"
Weight
(oz.) 3.3
Servo Mounting Flange
Rubber Grommets
Rubber Grommets
Servo Case
Servo Lead w/Connector
Servo Output Shaft
Servo Mounting Flange
Servo Arm/Horn
Servo Arm Retaining Screw
Servo Eyelet
Top View
