11. PRE-FLIGHT INFORMATION
QUATTRO TRAINER SYSTEM
The Quattro features a built-in trainer system. The
transmitter can be used as either a master (trainer)
or as a slave (trainee). The Quattro is compatible
with all other current PPM selectable (FM) J-line or
JR radios that have built-in trainer systems. An
optional trainer cord is needed (JRPA130).
OPERATING THE TRAINER SYSTEM
1. Match the servo reversing and trims of both
radios.
2. Plug the optional trainer cord into both
transmitters.
3. Turn ON the master transmitter.
NOTE: The slave radio must be left OFF.
4. Test all the control functions on your aircraft
with the master radio.
5. Push the trainer button on the master
transmitter and check all the control functions
with the slave radio.
Special Note to Beginners: We strongly suggest
that you seek the help of an experienced model
airplane pilot prior to flying your new model.
RANGE TESTING YOUR MODEL
We suggest that before the initial flight of your
model, you first perform a ground range test to
ensure that the transmitting/receiving abilities of
your Quattro perform properly. Conduct the range
test as follows:
Do not extend the transmitter antenna at this time.
Turn your Quattro transmitter “ON”. Next, turn the
model switch “ON”. Slowly walk away from the
model while moving the control surfaces. The
system should function properly to a distance of
approximately 60-65 feet.
NOTE: If your test falls short of the described
range, confirm that your NiCad batteries are fully
charged. If this situation remains unchanged,
please contact the Horizon Service Center (address
and phone number at the back of this manual)
before attempting to fly your model.
11.1
11.2
11.3

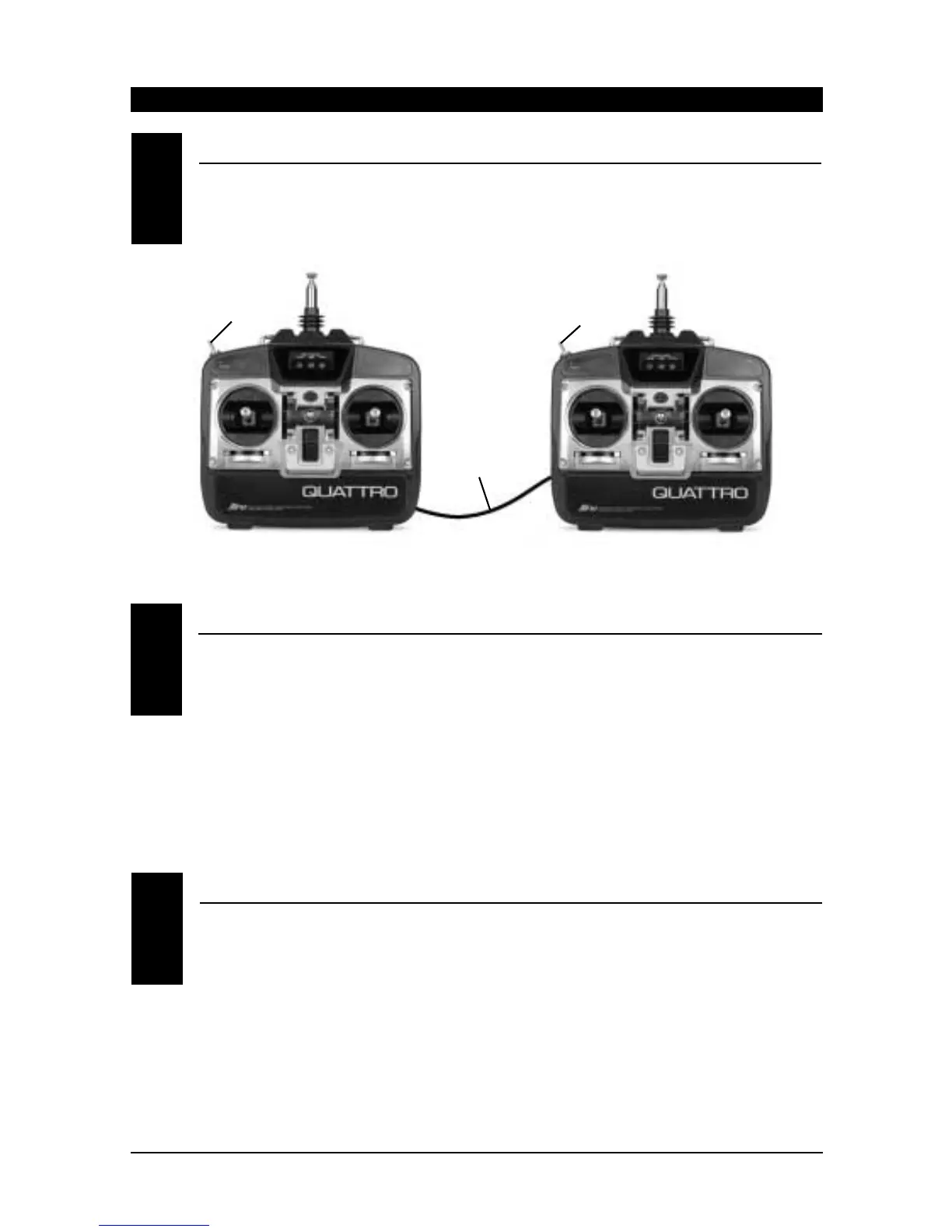

Trainer Switch
Slave Transmitter
Power Switch Off
Master Transmitter
Power Switch On
Trainer Switch
Optional
Trainer Cord
(JRPA130)
