QUATTRO MANUAL
3. QUATTRO TRANSMITTER
TRANSMITTER FEATURES

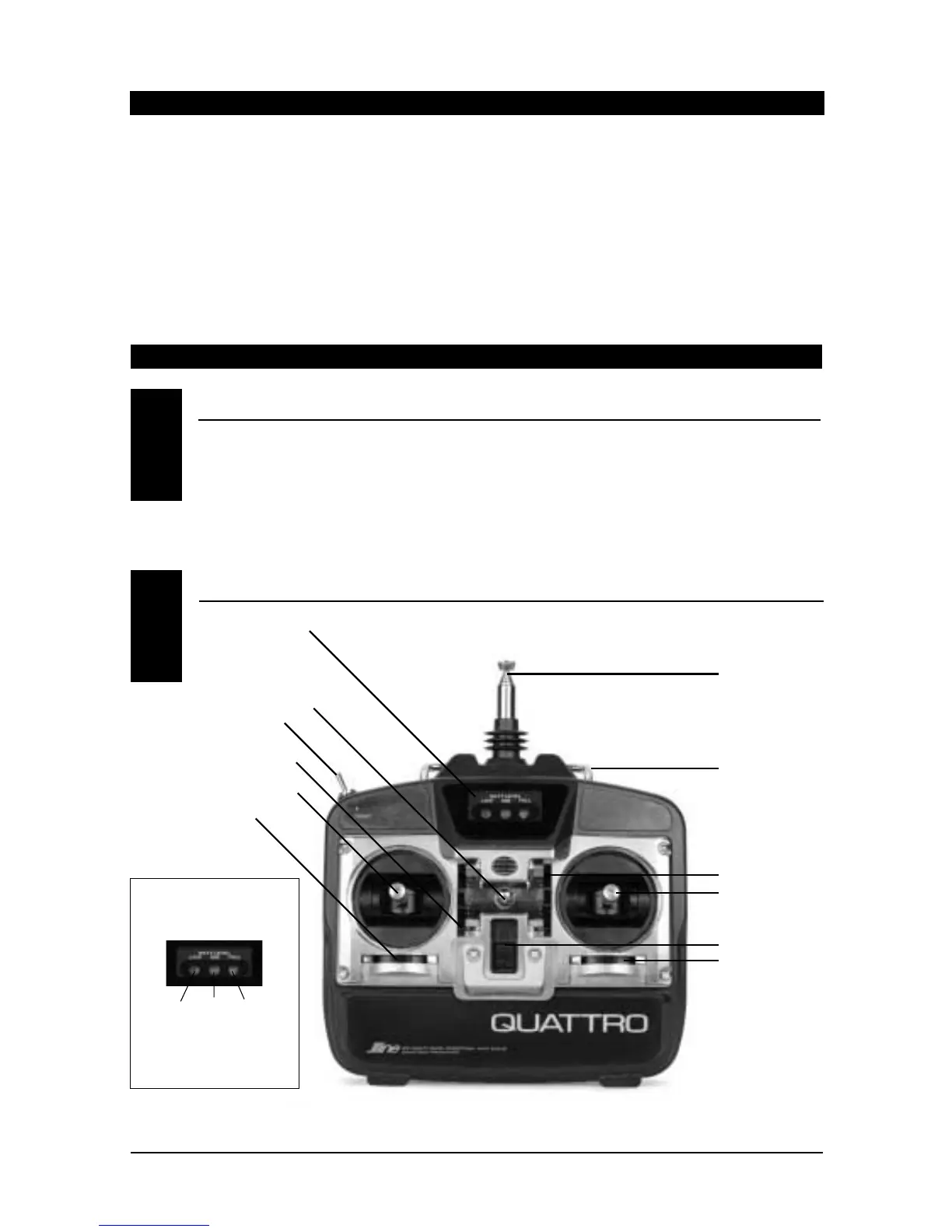

TRANSMITTER LAYOUT
• Computer-designed, ergonomically styled case
• Servo reversing on all 4 channels (page 12)
• Adjustable control stick length (page 5)
• Trainer system feature compatible with all
current JR radio systems
• Easy-to-read transmitter LED battery
voltage indicator
• 9.6V 600mAh NiCad transmitter battery pack
• Power output approximately 750mw
System Name Quattro
Transmitter Body NET-E104
Receiver NER-600
Charger NEC-221
Airborne Battery 4.8V 600mAh NiCad
Servos NES-577 x 4
Accessories Mini Switch
Servo Accessories
12" Aileron Extension
Instruction Manual
2. SYSTEM SPECIFICATIONS
3.1
3.2
Transmitter LED Battery
Voltage Indicator
Neck Strap Attachment
(JRPA023 Optional JR Neck Strap)
Throttle/Rudder Stick
Trainer Button
Transmitter Antenna
Carrying Bar
Elevator Trim
Aileron Trim
Elevator/Aileron Stick
Power Switch
Throttle Trim
Rudder Trim
IMPORTANT
Transmiter Battery Voltage
LED Indicator
Low: Do not fly
Mid: System should be recharged
Full: System OK to fly
Low Mid Full
Red Orange Green
