rectifier voltage , which means Vmp≈1.414*U
line
. For JNPxH serie inverter, AC
input must be three phase, U
line
is voltage between any two lines. For example,
JNPxH serie inverter, the Vmp of single solar panel is 30V, 18pcs solar panels
are in serie. The Vmp=30*18=540V≈1.414*380=537.3V
If the configuration of PV array is not appropriate, when PV energy and AC
energy are connected into inverter at the same time, PV energy cannot be
maximized
2.2 Product’s Introduction
2.2.1 Appearance
1
2
3
4
5
6

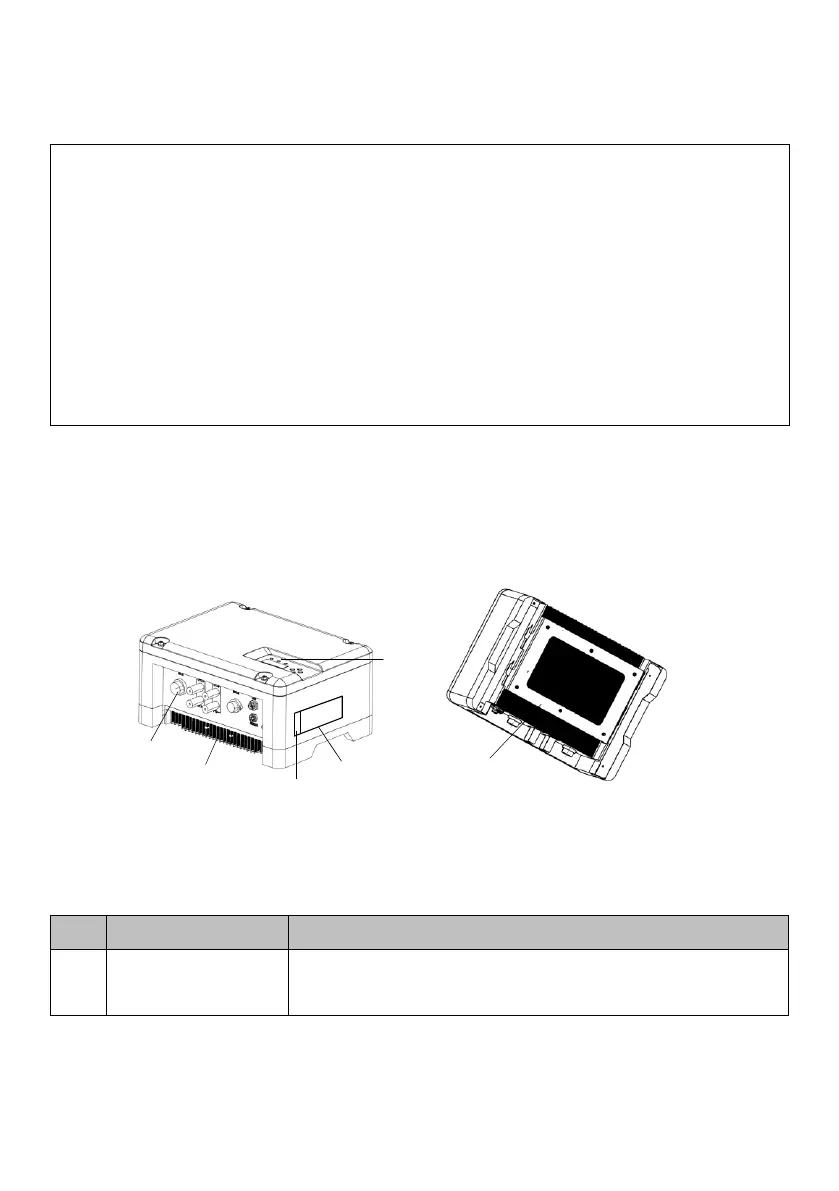

Figure2-2 Appearance of Solar Pump Inverter
Table2-2 Inverter appearance information table
No.
Name
Introductions
1
LCD display
screen
Man-machine interface, you can check the inverter
operating information through LCD display screen,
