38
Note！
● If there is more strings PV modules in parallel, each string PV module
should be with the same model, the same number of PV modules, the same
inclination angle, the same azimuth angle, and the same cross-sectional
area of the connecting wires.
● Inspect every system carefully before installation.

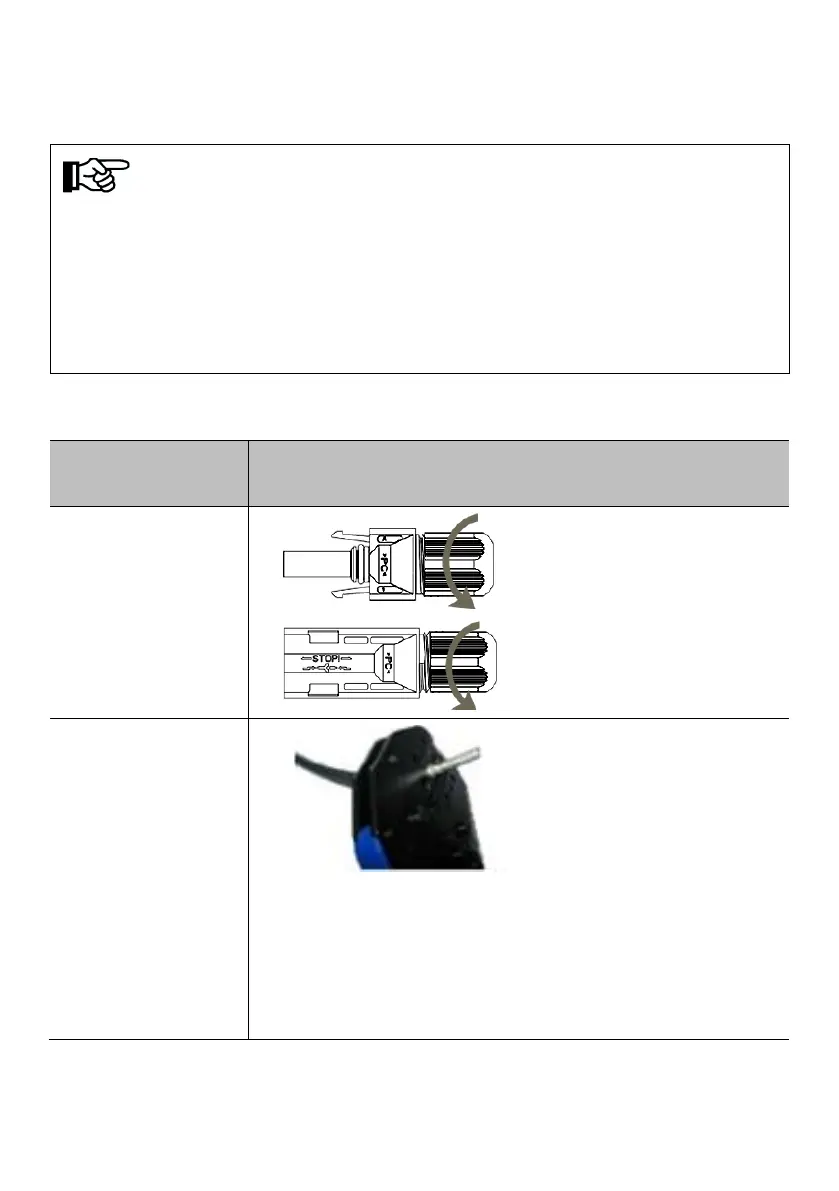

Step 1: Follow the following steps to connect the DC side connector lead.
operating
instructions
Operation diagram
1. Loosen the
fastening nut of the
connector。
2. Stripped of dc
cable insulation,
stripped the length
of the insulation
layer is about 7
mm; Thread the
exposed wire core
into the connector
