If you selected water level sensor A, then water sensor installation method is
shown below:
B1 connect to SY
B2 connect to COM
A2 connect to COM
A1 connect to DG
Note: Both yellow shrub-
like hammer, you need
filled water, when you
install sensor A

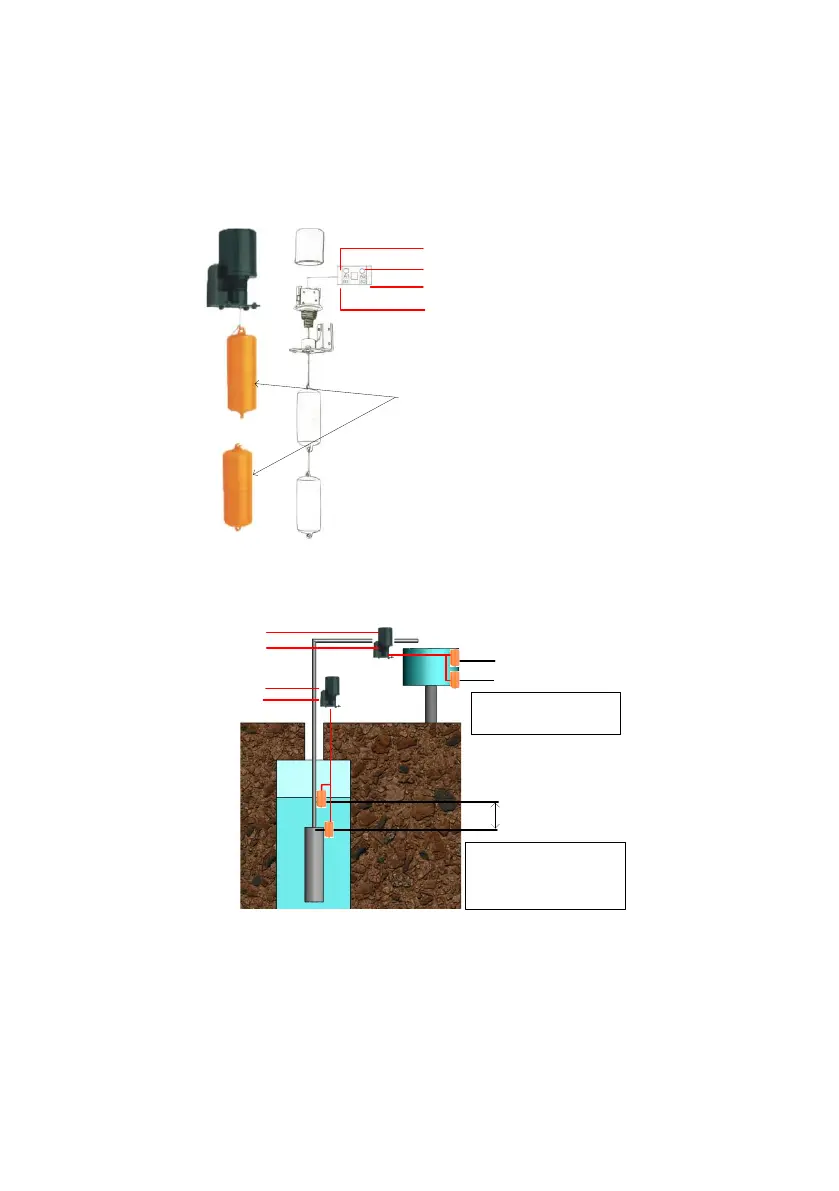

Figure6-12 The detail figure of Sensor A
A
C
D
S
A:the Installation location of
overflow high water level sensor.
B:the Installation location of
overflow low water level sensor.
1. C:the Installation location of pump
dryed high water level sensor.
2. D:Pump outlet，the Installation
location of pump dryed low water
level sensor.
3. S about 1-3 m .
B
To Water le vel
sen so r co nnecto r
B1 connect To SY
B2 connect to COM
A2 connect to COM
A1 connect to DG
Figure6-13 The installation figure of Sensor A
If you selected water level sensor B, then water sensor installation method is
shown below:
