Joerns Bariatric Beds
Model Bari10A
© 2015 Joerns Healthcare • 6110089 RevF • 15-2235
Figure 16 - Photo taken from angle
underneath bed
Figure 15 - Arrow indicates Length
Extension Latch
Mattress Support Platform Width
Extenders

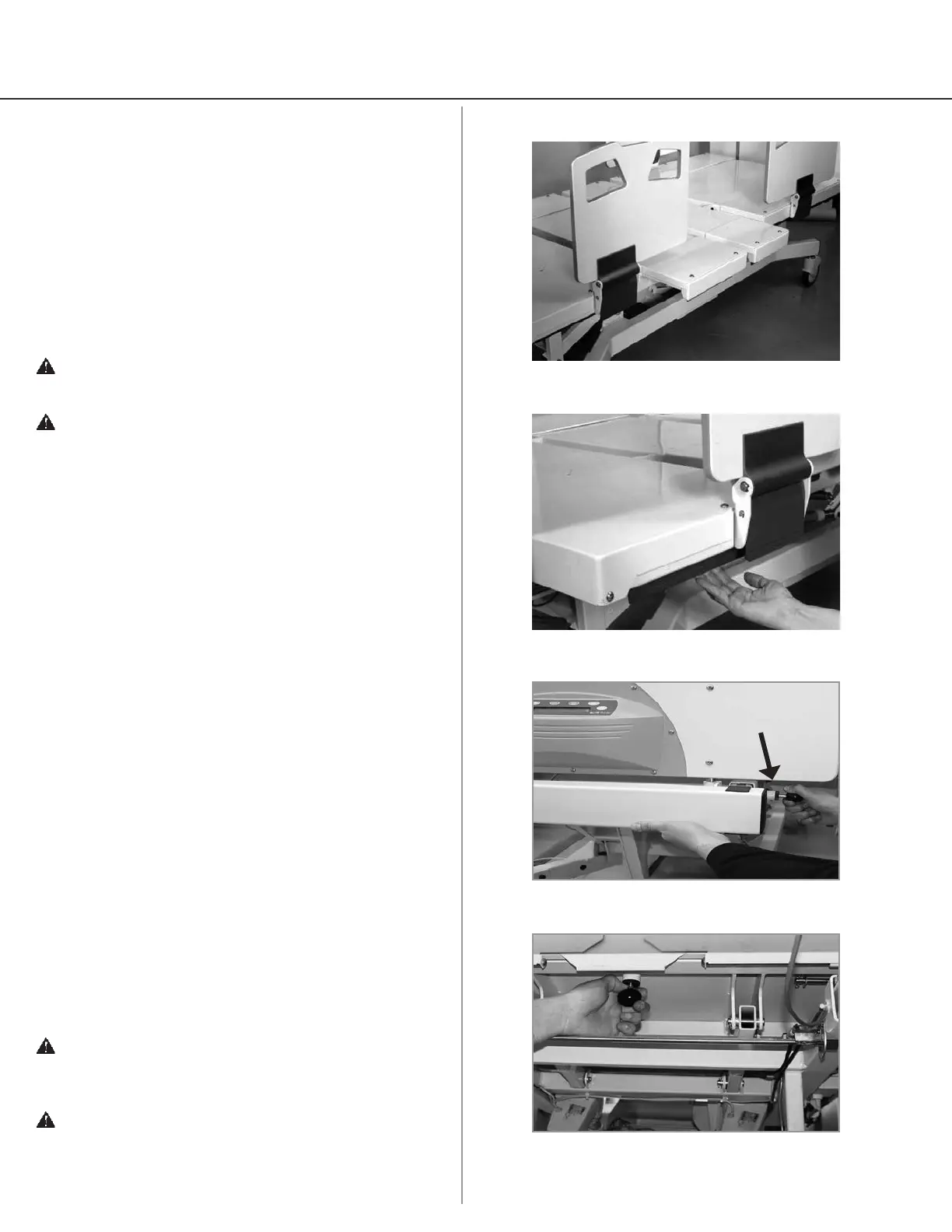

1. The four mattress support platform (MSP) sections
each have a 6" Width Extender on both sides.
(Figure 13).
2. Release Width Extender by pulling latch handle
along the bottom edge of each MSP section
(Figure 14). Note: Width Extenders lock in either
full open or full closed position and should only be
used in these positions. Side rails move with the
Width Extenders.
Caution: Extend all four sections on each side prior to
adjusting bed position or side rails.
Warning: Use Width Extenders only after the resident/
patient is safely positioned in the bed. Failure to do so
could result in injury.
Mattress Support Platform Length
Extender
1. Mattress support platform (MSP) foot section has
an 8" Length Extender, as does the foot end of the
bed frame (Figure 15).
2. Both MSP Length Extender and the Frame Length
Extender lock in the retracted and extended
positions.
3. Using the MSP Length Extender is a two-step
process:
a. Slide the Frame Extender out rst, by pulling
out the latch knob on the side of the bed
frame (Figure 15). Begin carefully sliding the
extender out and release the latch knob as
soon as the extender starts to slide, so that it
will automatically latch again at the extended
position. Slowly pull the extender out until the
latch pin clicks into its detent.
b. Reach under the center of the MSP Foot
Section and locate the MSP Extender latch
knob (Figure 16). Pull the knob out to unlatch
the Foot Section Extender. Begin carefully
sliding the extender and release the latch knob
as soon as the extender starts to slide so that
it will automatically latch again at the extended
position. Slowly pull the extender out until the
latch pin clicks into its detent.
Warning: Possible Equipment Damage. Do not slide
Frame Length Extender past its detent. Damage to the
foot panel cables will result.
Warning: Possible Equipment Damage. Prior to
use of the MSP Length Extender, the Frame Length
Extender must be fully extended and latched. Failure
to do so will result in foot panel connector damage.
Figure 14
Figure 13
