Joerns Bariatric Beds
Model Bari10A
© 2015 Joerns Healthcare • 6110089 RevF • 15-2235
Left Side from foot of bed
Right Side from foot of bed
Figure 12
Warning: To reduce the risk of injury, ensure the
mattress support platform is horizontal and in the
lowest position with the siderails fully raised and
locked when moving the bed with a resident/patient in
it. For best maneuverability performance, push the bed
from the head end.
Warning: Steer wheel must be disengaged to
use scale.
Caution: To avoid damage to the siderail mechanisms,
do not move the bed using the siderails. Use the push/
pull handles integrated to the end panels to move the
bed.

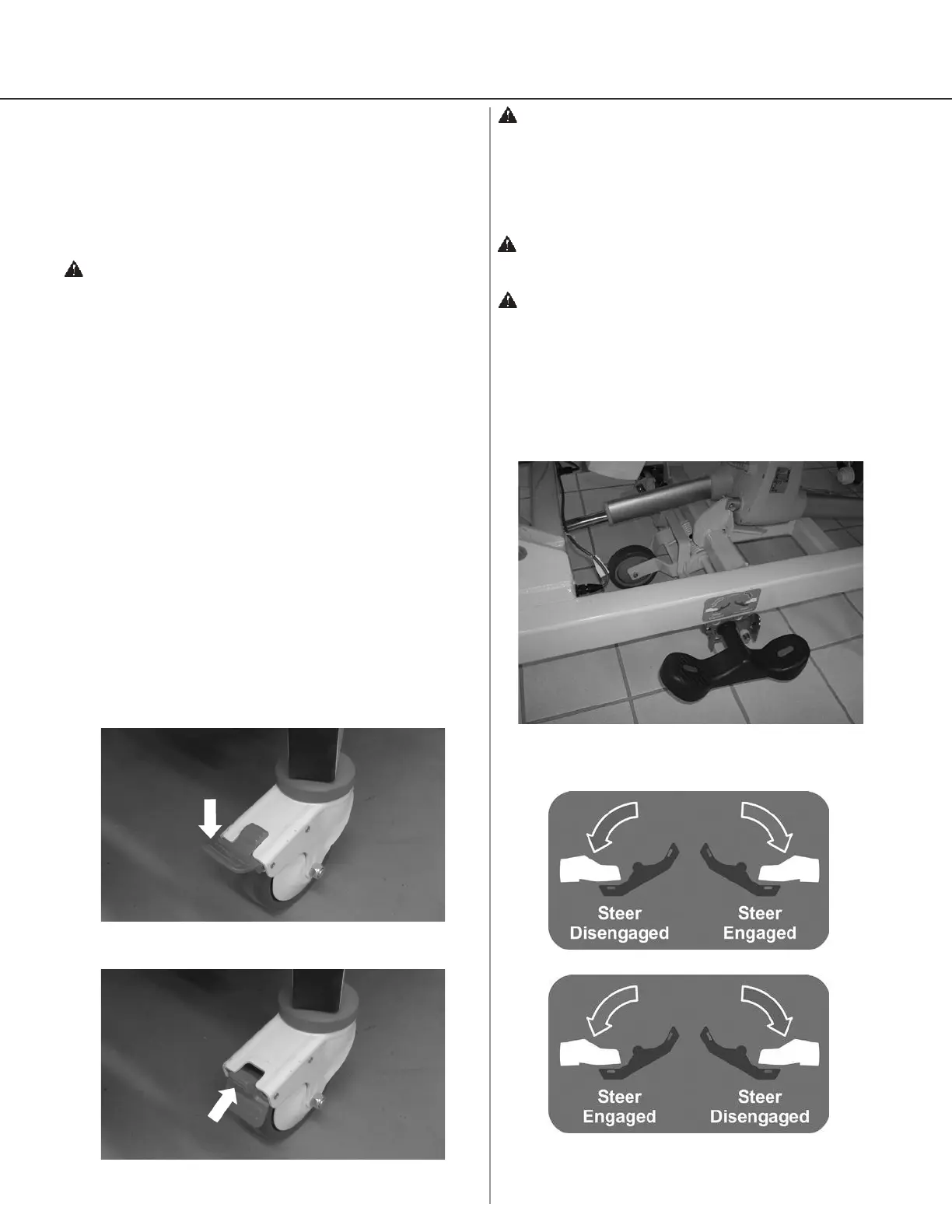

Figure 9
Figure 10
Figure 11
Casters
1. All (4) casters securely lock bed in place.
2. All casters have full swivel/rotation locking in
any position.
3. Simply push Caster Lock lever (Figure 9) down to
lock and up to unlock (Figure 10).
Caution: It is critically important to lock all four
casters individually to prevent unintended bed
movement.
Steer Wheel (optional) (Figure 11)
A bed equipped with this option has a steer wheel
actuated by pedals on either side of the bed. The steer
wheel helps in guiding the bed along a straight line
and helps the bed pivot around corners.
Steer Wheel Operation (Figure 12)
To engage the steer wheel, fully depress the side of
the pedal identied with a green label and represented
by the ENGAGE green arrow. To disengage the steer
wheel, fully depress the side of the pedal identied
with a red label and represented by the DISENGAGE
red arrow.
To avoid injury to the resident/patient and/or user, do
not attempt to move the bed laterally with the steer
mode engaged. The steer wheel cannot swivel.
