MNP86V03GBV00 Date: 2010/06/14 Rev. 0 PAGE 20 OF 62

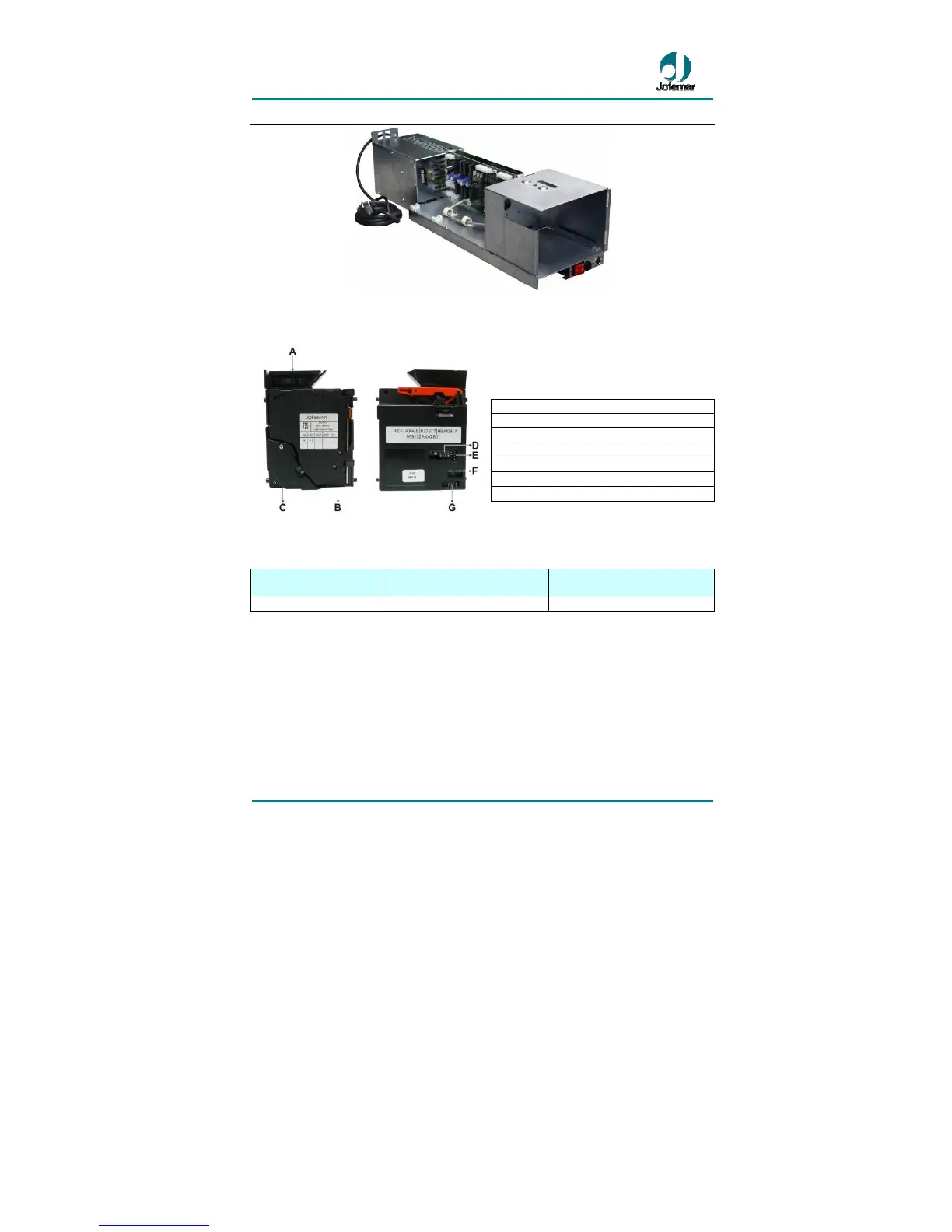

Fig. 32
4.11. T-15 validator (selector)
Its is supplied with 12 Vdc through a
cable connected to the control card of
the compact.
A. Coin inlet
B. Rejected coins
C. Accepted coins
D. Switches
E. 4-way recording connector
F. CCTALK connector (optional)
G. Main 10-way connector
Fig. 33
4.12. Compact J-2000
Power consumption
in standby
Maximum current peak Power supply voltage
≈ 150 mA
4 A
DC ⇒ 12V
The J-2000 validation unit is an integrated electronic coin validator and return system for
automatic vending machines with 485 communications protocol. It features an electronic
coin validator, a 5-way separator and 5 return tubes, providing large amounts of change.
Its water-resistant protection system allows for seamless performance in adverse
environments.
