vision
Snack Plus/Easy Combo
//
Vending
MNP86V03GBV00 Date: 2010/06/14 Rev. 0 PAGE 9 OF 62

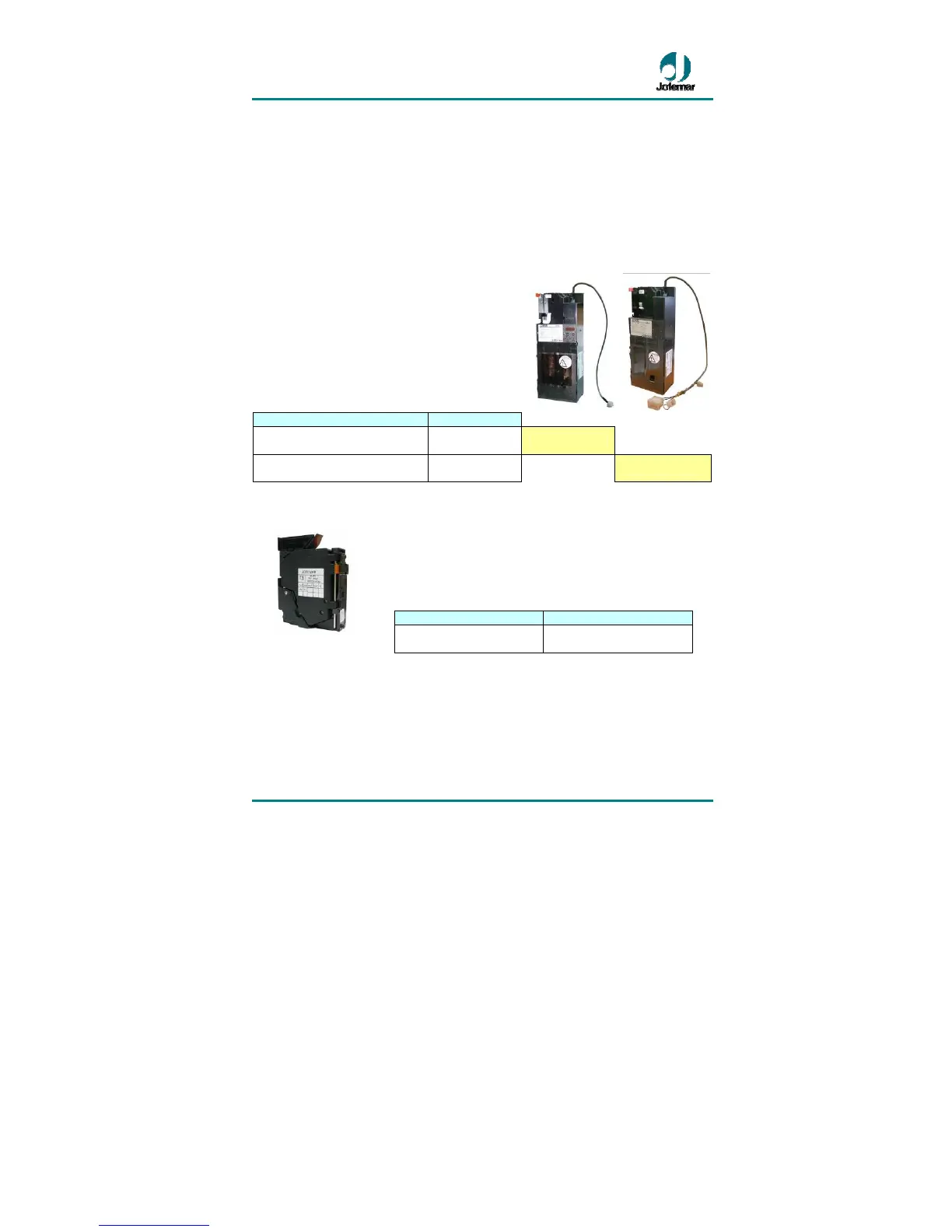

• J-2000 EXECUTIVE coin changer without recovery motor (see the manual for the
J-2000 EXECUTIVE). The communication between machine and compact takes
place using protocol A. The machine is slave of the compact, which acts as master.
If the machine has not detected an executive coin changer connected to it (because it
has not received any command), the display will show an error message. The same error
will be shown on the display after the communication between coin changer and
machine has been interrupted for 30 seconds. When you are inside the programming
addresses, the machine voluntarily interrupts communication with the compact.
Communication is re-established when you access standby without credit.
You can work both in coin changer price storage
mode and in machine price storage mode. In
both cases you should program the option in the
coin changer that makes it refresh the machine
display, to be able to consult the price of each
product without inserting credit.
Dimensions Weight
Fig. 08 Fig. 09
353 x 137 x 82 mm
13 8/9” x 5 2/5” x 3 2/9“
2,8 kg
6 lb.
MDB
353 x 137 x 82 mm
13 8/9” x 5 2/5” x 3 2/9“
2,8 kg
6 lb.
EXECUTIVE
T-15 coin selector
Fig. 10
The T-15 coin selector is a premium validation device that can
recognise up to 24 different coins or tokens. It has a coin
separator coil that allows it to accept or reject coins.
COIN AND TOKEN CHARACTERISTICS
Thickness range Diameter range
1 mm to 3,2 mm
2/51“ to 1/8“
16 mm to 32 mm
5/8“ to 1 1/4“
3.1.2. Cabinet
The cabinet holds the product trays, the vault, the electronic control system, the cooling
unit (for vision Easy Combo) and the product delivery bin.
The structure of the cabinet is injected with polythene foam for improved insulation and
better consistency.
