3.1.1. Door
On the front part of the door we can see: the safety glass, the BT-10 banknote reader
(optional), the J-130 card reader (optional), the display, the coin inlet, the coin return
pushbutton, the product selection pushbutton panel, the lock, the coin return box and the
product delivery opening. On the back of the door we find: the programming pushbutton,
the J-2000 compact and the T-15 selector.

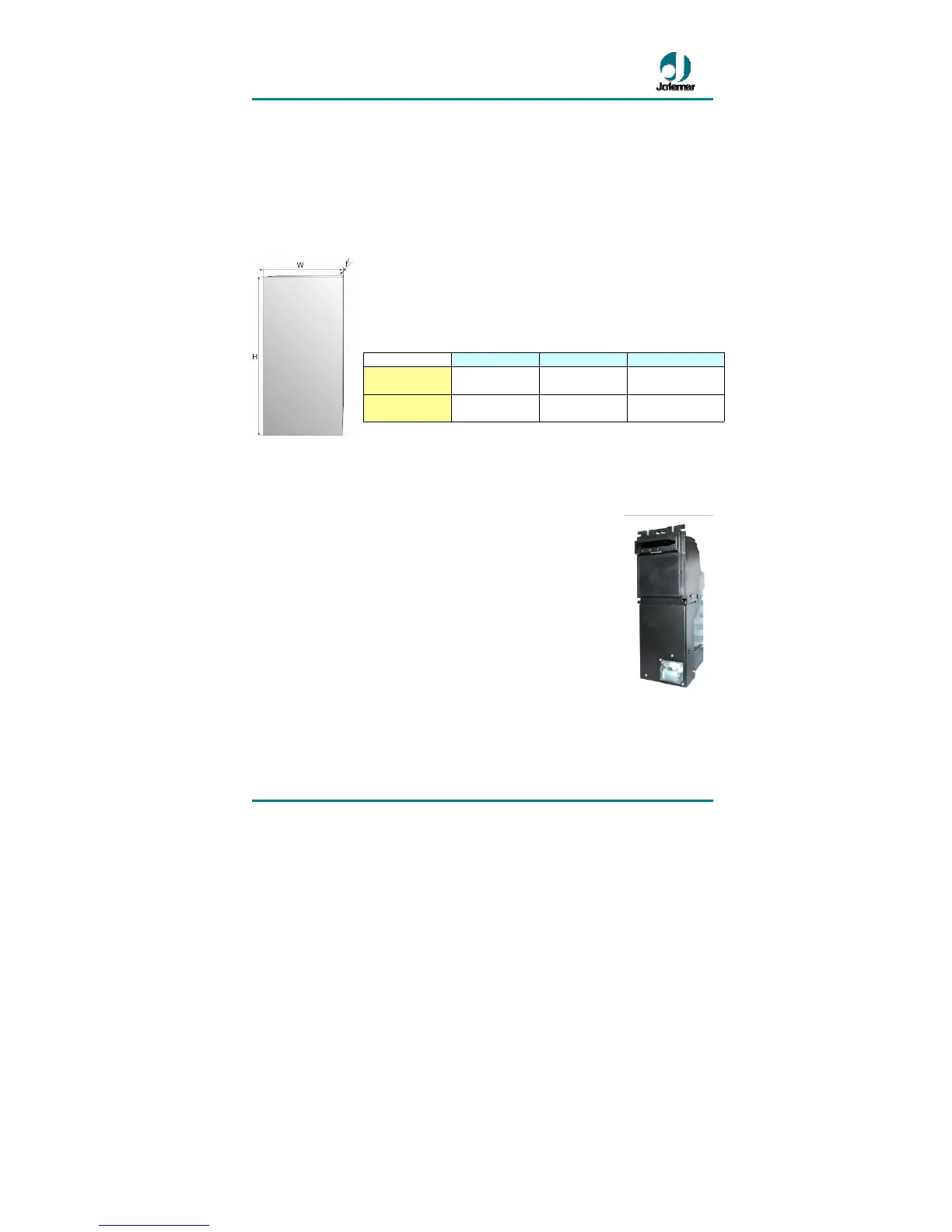

Safety glass
Made of double glazed, low emission climalit safety glass with a
12 mm (1/2“) gap offering top strain reliability.
It provides a view of the products and their location on the trays.
Height (H) Width (W) Thickness (F)
Snack Plus
1169,5 mm
46”
561 mm
22”
22 mm
6/7”
Easy Combo
1169,5 mm
46”
561 mm
22”
22 mm
6/7”
Fig. 01
BT-10 banknote reader
● The BT-10 banknote reader consists of a reading head that reads
the banknote and validates it against a set of patterns it has stored
in memory. Should the banknote be recognised, it is sent to a
stacker used for storing the banknotes (capacity 210).
● The front cover of the banknote reader has several status LEDs,
green and red, which show the reader’s activity at all times as well
as possible faults.
● This component comes as an option.
● Banknote readers using the MDB communications protocol can
only be used if the program version is for working with the compact
MDB.
Fig. 02
