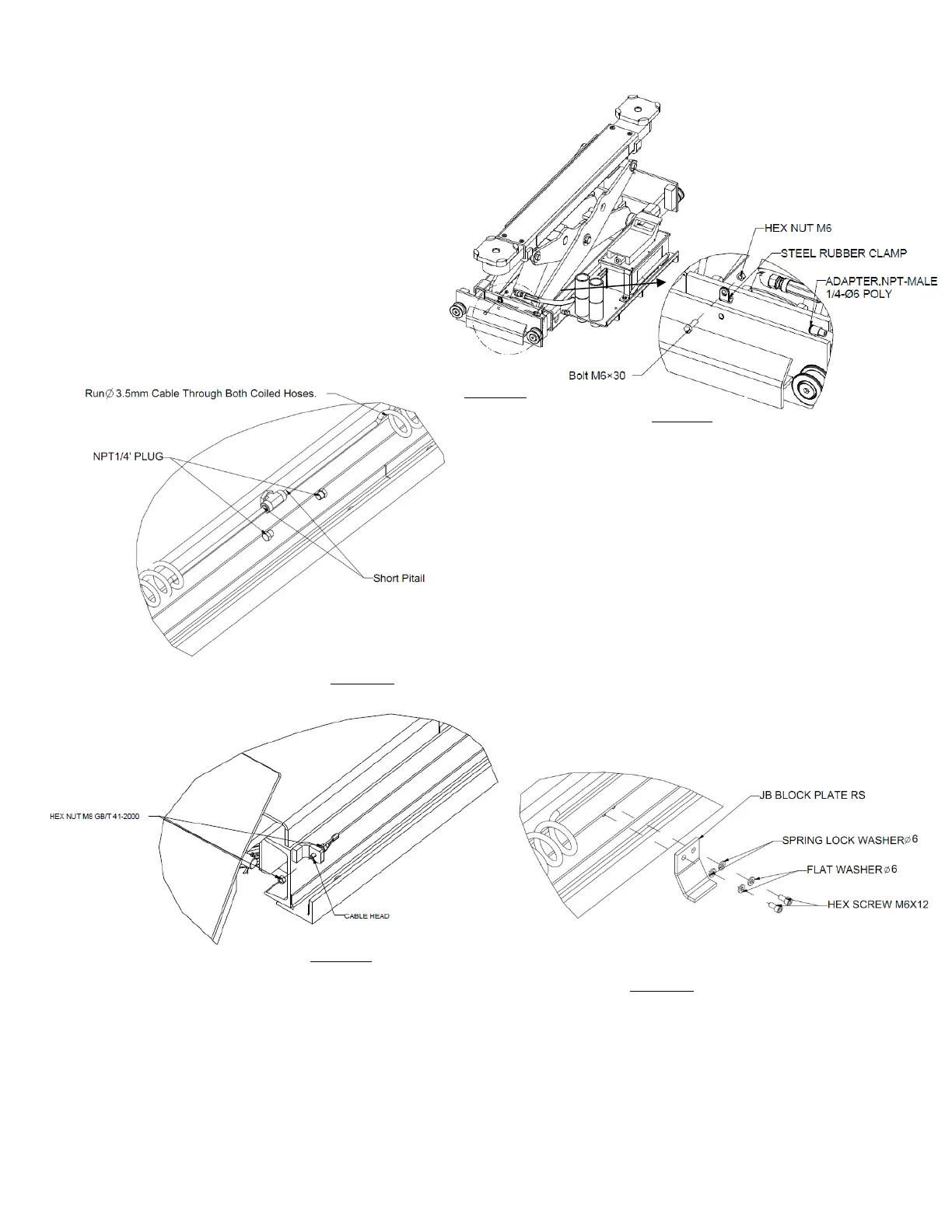

Coiled Hose Installation
1. Attach the coiled hose to the Tee in the
runway and to the jacks.
a. Remove two NPT 1/4’ PLUGs
before connecting the short pigtail with
the swivel end to the tee. Detail A.
b. If there one Jack is on use,
connect NPT 1/4’ PLUG to the
another side of the Tee.
c. Run Ø3.5mm steel cable through the
coiled hoses and into both fixing plate
on deck, attaching with a cable head
and two lock nut. Detail E.
Install at driver side deck.
Bolt Stop Installation (Pre-Installed)
1. Pre-Installed at passenger side deck,
also, can be install at driver side deck.
2. Locate Ø 5mm holes on the power
runway located at 1269mm and
2640mm from the front of the runway
as show in Figure 1.
3. Move the jacks to the ends of the
runways and install Block plate with
hex screws, Ø 6mm spring and flat
washers as shown in Detail D.
2. Use hose clamp and provide hardware to
secure the coiled hose to the jack as shown
in Detail F.
