Coiled Hose to Jack Connection

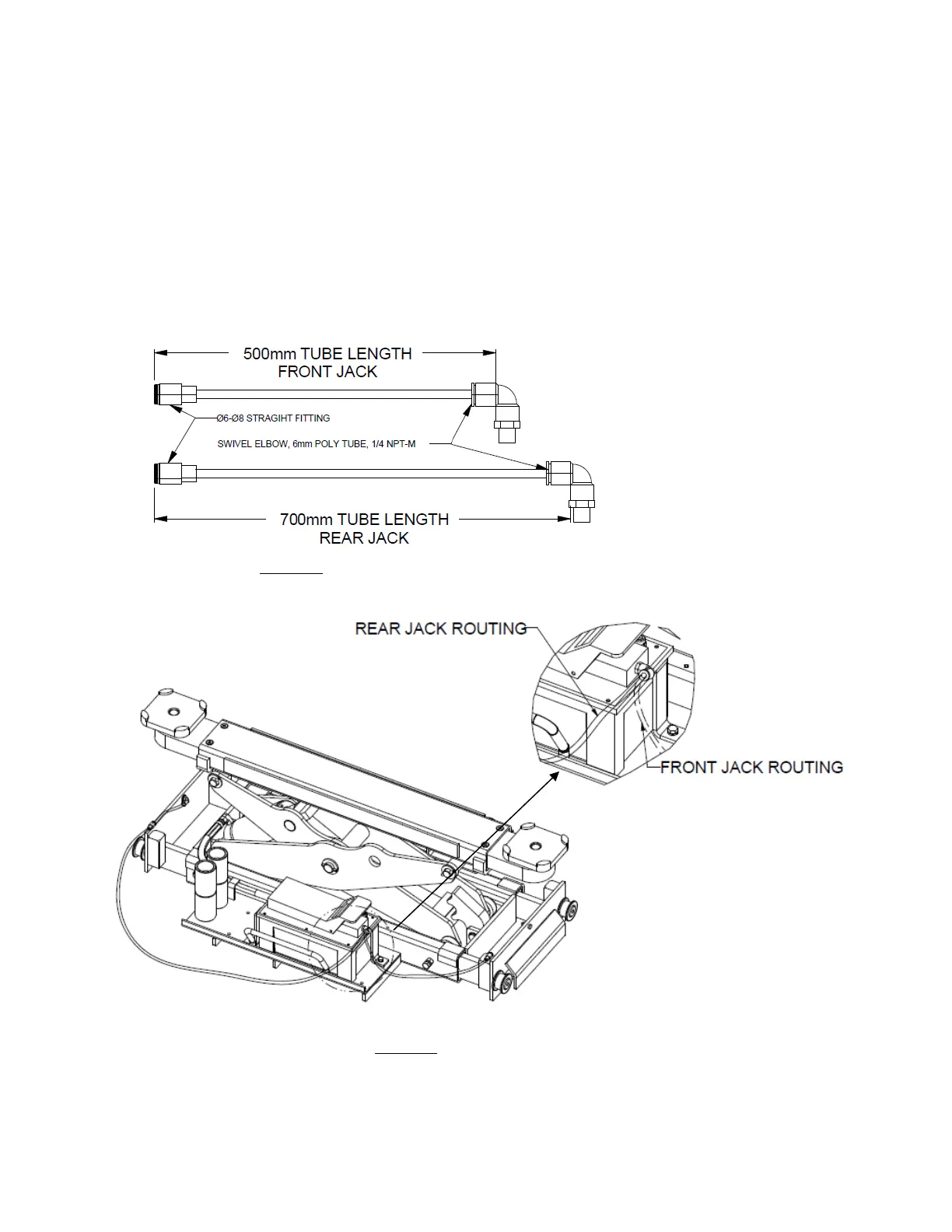

1. When coiled hoses are attached to the
jacks with the clamps provided, cut the
provided Ø6mm OD plastic tubing into
lengths shown in Figure 5 before
installation and attach fittings by
pushing onto end of tubing.
2. Route hose with connections as shown
in Figure 6. Note: different routing for
Front or Rear jack location.
