Network Control Module 300 Series Technical Bulletin 85
fibercbl

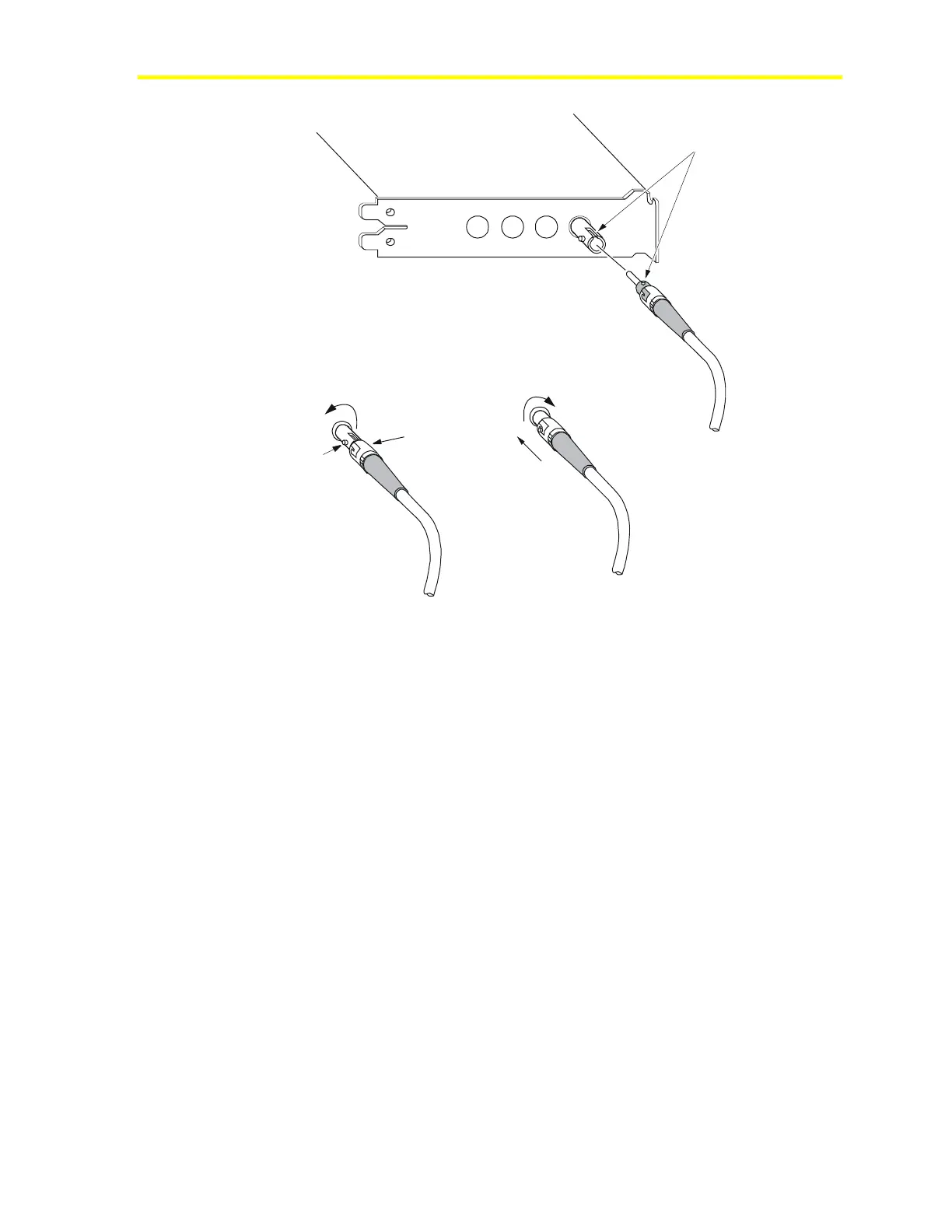

Step 1: Line up the peg on the cable with
the slot on the MIB-OWS.
Step 3: Push forward and twist
to lock in place.
Push
Twist
MIB-OWS-F-0
Step 2: Twist the collar on the cable
to line up with the peg on the
MIB-OWS.
Collar
Peg
Twist
Figure 31: Connecting Fiber Optic Cable to MIB-OWS
Power Connection
Plug the Fire-Net NCM into the power outlet at the top of either the
Fire Watchdog Enclosure or the standard UPM. There are two screws
and wire ties provided with the Fire-Net NCM to fasten the cord inside
the enclosure or UPM. Run the cord along the right hand side of either
enclosure and choose convenient locations to mount the ties.
