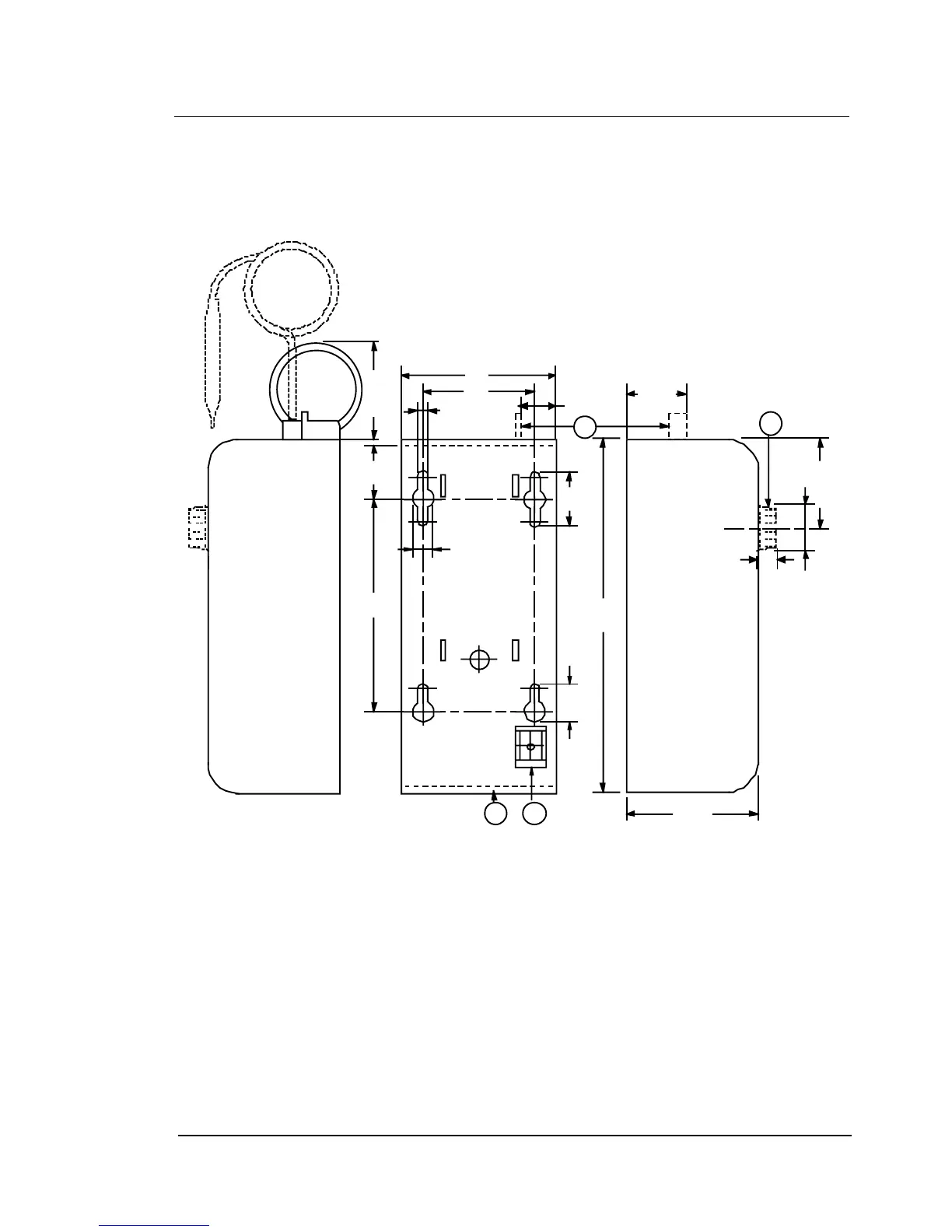

Johnson Controls A19A - Dimensional Drawings

A19A
Issue 03/03/2003
© 2003 Johnson Controls Inc. Catalogue Section 1
Order No. PD-A19A-E
7
D
imensions (mm)
32
13
19
75
19
7
55
40
13
125
46.5
21.5
6
16
28
3.6
1
2
4
3
1 Reset lever
2 Knob packed separately with the control
3 22.3 mm dia. cable inlet hole for PG-16
4 Earth screw
Fig. 13
