Addressable Intelligent Module—AIM-200 Addressable Intelligent Module 29
The M510CJ control module is an addressable module that supervises and
switches power to an indicating appliance circuit. The M510CJ circuit can
be wired as an NFPA Style Y or Style Z indicating appliance circuit.
Alternately, the M510CJ can be employed as a Form-C control relay.

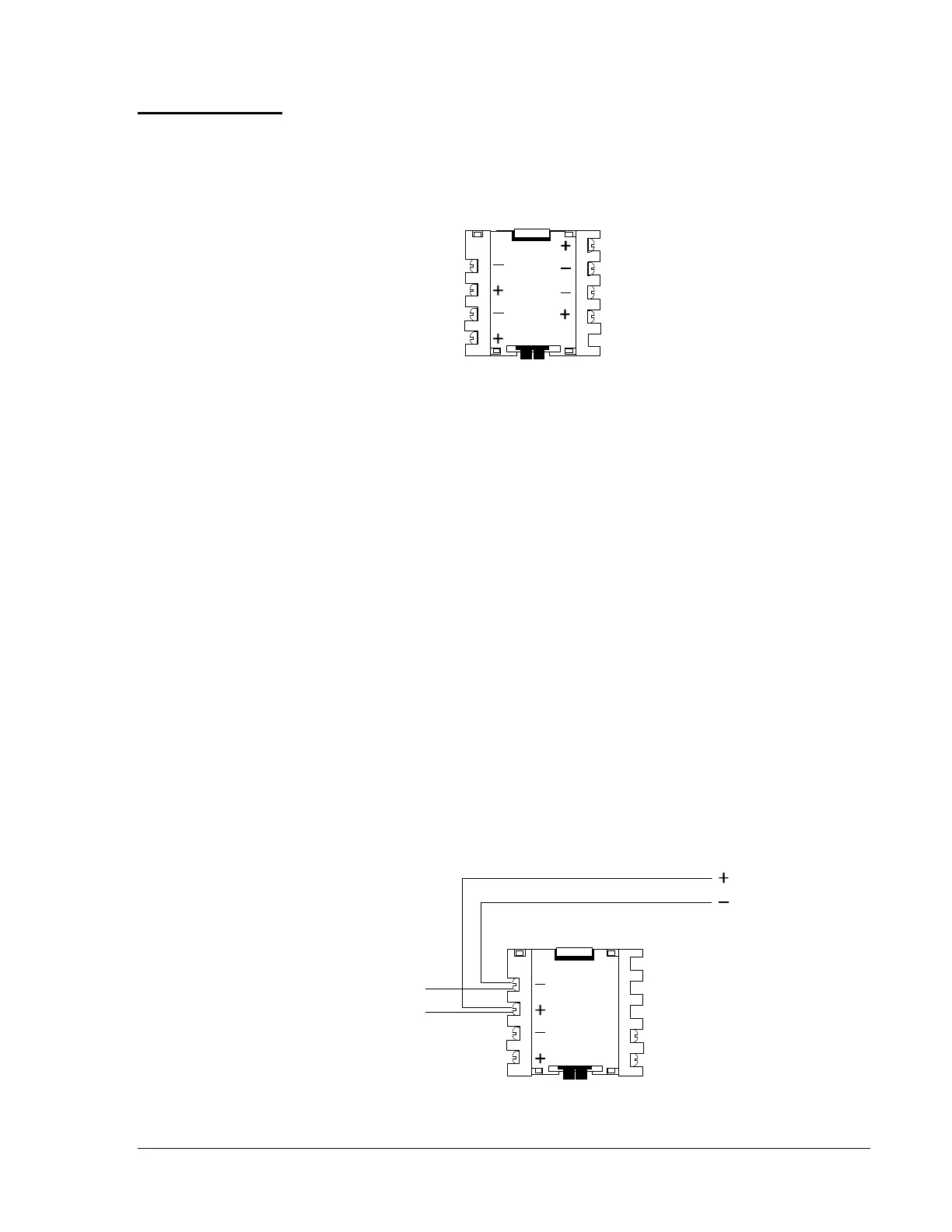

Figure 23: M510CJ Control Module (Alarm Polarity Shown)
Connect the communications loop to M510CJ Terminals 1(-) and 2 (+).
The M510CJ occupies one module address on the loop. Set the rotary
switches on the M510CJ to the particular loop address required.
Connect polarized alarm indicating appliances to a single 2-wire circuit.
This circuit cannot be T-tapped or branched in any fashion and must be
terminated across the last device by a 47K, 1/2-watt ELR
(Part No. A2143-00). Connect the circuit to M510CJ Terminals 6 (+)
and 7 (-). See Figure 25.
Connect polarized alarm indicating appliances to a single two-wire circuit.
This circuit cannot be T-tapped or branched in any fashion. No external
ELR is required for Style Z wiring. Connect the 4-wire circuit to M510CJ
Terminals 6 (+) and 9 (+), then 7 (-) and 8 (-). See Figure 26.
Connect indicating appliance power to M510CJ Terminal 3 (common) and
Terminal 4 (+ 24 VDC). This power must be supervised by a UL Listed
power supervision relay, wired as shown in Figure 25 or 26.
M510CJ Control
Module
Communications
Loop
Connections
NFPA Style Y
Indicating
Appliance Circuit
NFPA Style Z
Indicating
Appliance Circuit
Indicating
Appliance Power
To Next Page
