60 Addressable Intelligent Module—AIM-200 Addressable Intelligent Module
The AIM-200 zone assumes the status of any device mapped to that zone
that enters an alarm or trouble condition. If any of the initiating devices are
in alarm, the zone is reported in alarm. If one or more devices (including
M510CJ modules) are in trouble, and no alarms exist, trouble is reported
for the zone.
One trouble condition, called “Maintenance Alert,” will be reported for
analog detectors that give readings in the 0-19% or 80-99% range. This
trouble condition will result only if the detector remains at this value
continuously for 24 hours (smoldering fires could linger here before
passing 100%). After the detector remains at this level for about 24 hours,
trouble is reported for that detector.
The digital display provides two numeric digits. It displays the device
numeric address (01-99). To the right of the digital display are two green
LED’s: “Detector” and “Module.” When there are no devices in alarm or
trouble, and the system is not in a programming mode, the digital display is
blank.

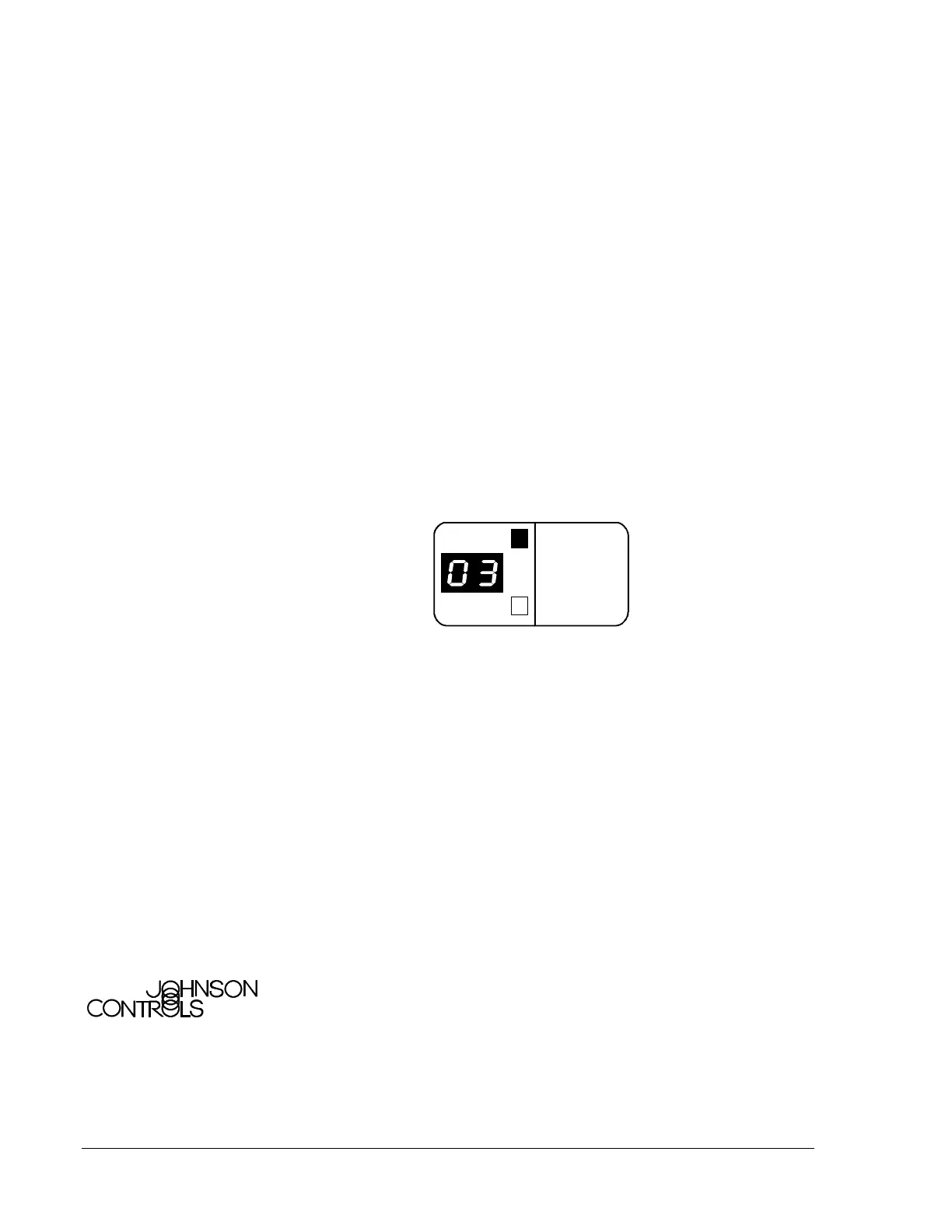

Figure 42: Digital Display
Alarm Condition
When an alarm condition occurs, the address of the alarmed device will
appear in the 2-digit, 7-segment display. If multiple alarms occur, the
display will automatically advance through all alarms. The STEP switches
may be used to manually advance the display one alarm at a time. If it is
necessary to display trouble addresses when an alarm exists, the program
key must be inserted and the Display Status functions followed. If an
alarm(s) has been silenced, and an initiating device mapped to the same
software zone goes into alarm, the AIM-200 will resound the alarm signals
and flash appropriate LEDs.
Digital Display
Controls Group FAN 406
507 E. Michigan Street FC-2000 Technical Manual
P.O. Box 423 Rev. Level —
Milwaukee, WI 53201 Printed in U.S.A.
