Johnson Controls ATC1510 User Manual

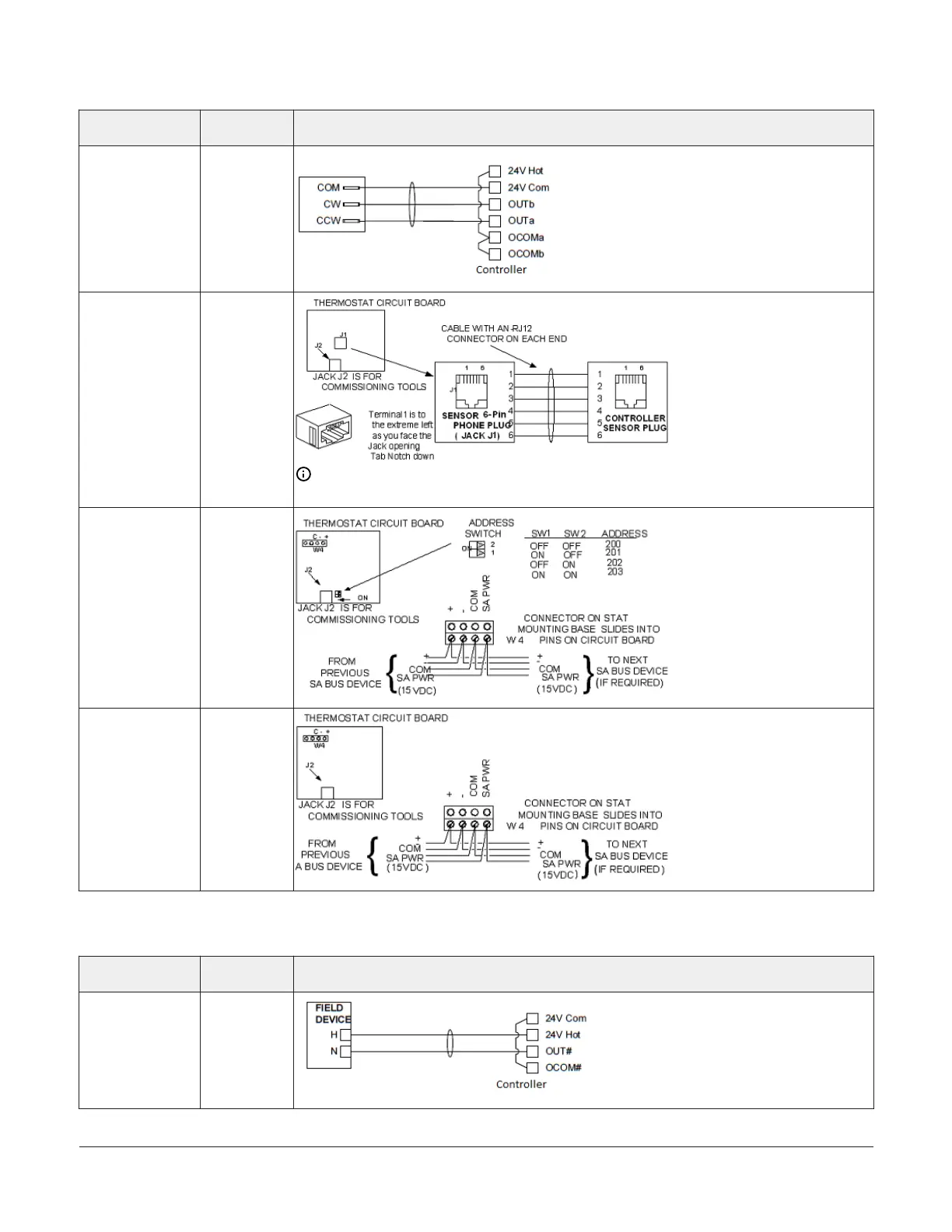

Table 5: Termination diagrams
Type of Field
Device
Type of Input/
Output
Termination Diagrams
Incremental
Control to
Actuator (Switch
High, Externally
Sourced)
(Triac Jumpers
where applicable)
BO
Network Stat with
Phone Jack (Fixed
Address = 199)
SA Bus
Note: The bottom jack (J2) on the TE-700 and TE-6x00 Series Sensors is not
usable as a zone bus or an SAB connection.
Network Stat
with Terminals
Addressable
SA Bus
Network Stat with
Terminals (Fixed
Address = 199)
SA Bus
The following table contains termination diagrams or terminology that is UNIQUE to specific controller
documents.
Type of Field
Device
Type of Input/
Output
Termination Diagrams
Relay Output
(Switch Low,
Externally
Sourced)
RO
ATC1510 Advanced Terminal Unit Controller Installation Guide 11
