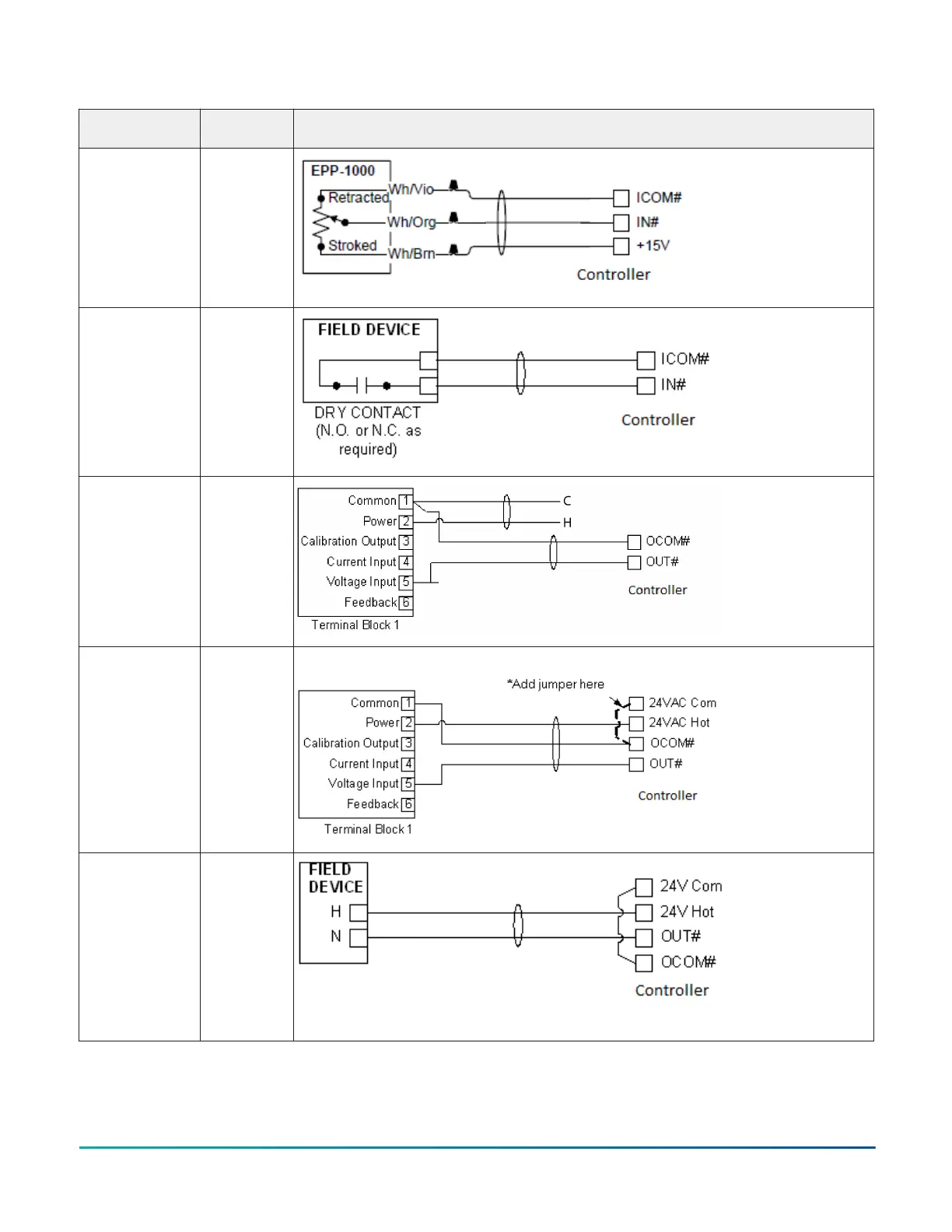

Table 6: Termination details
Type of field
device
Type of Input/
Output
Termination diagrams
Feedback from
EPP-1000
UI
Dry Contact
(Binary Input)
UI or BI
0–10 VDC Output
to Actuator
(External Source)
CO or AO
0–10 VDC Output
to Actuator
(Internal Source)
CO or AO
24 VAC Triac
Output (Switch
Low, External
Source)
CO or BO
F4-CG Series General Purpose Application Controllers Installation Guide14
