Table 6: Termination details
Type of field
device
Type of Input/
Output

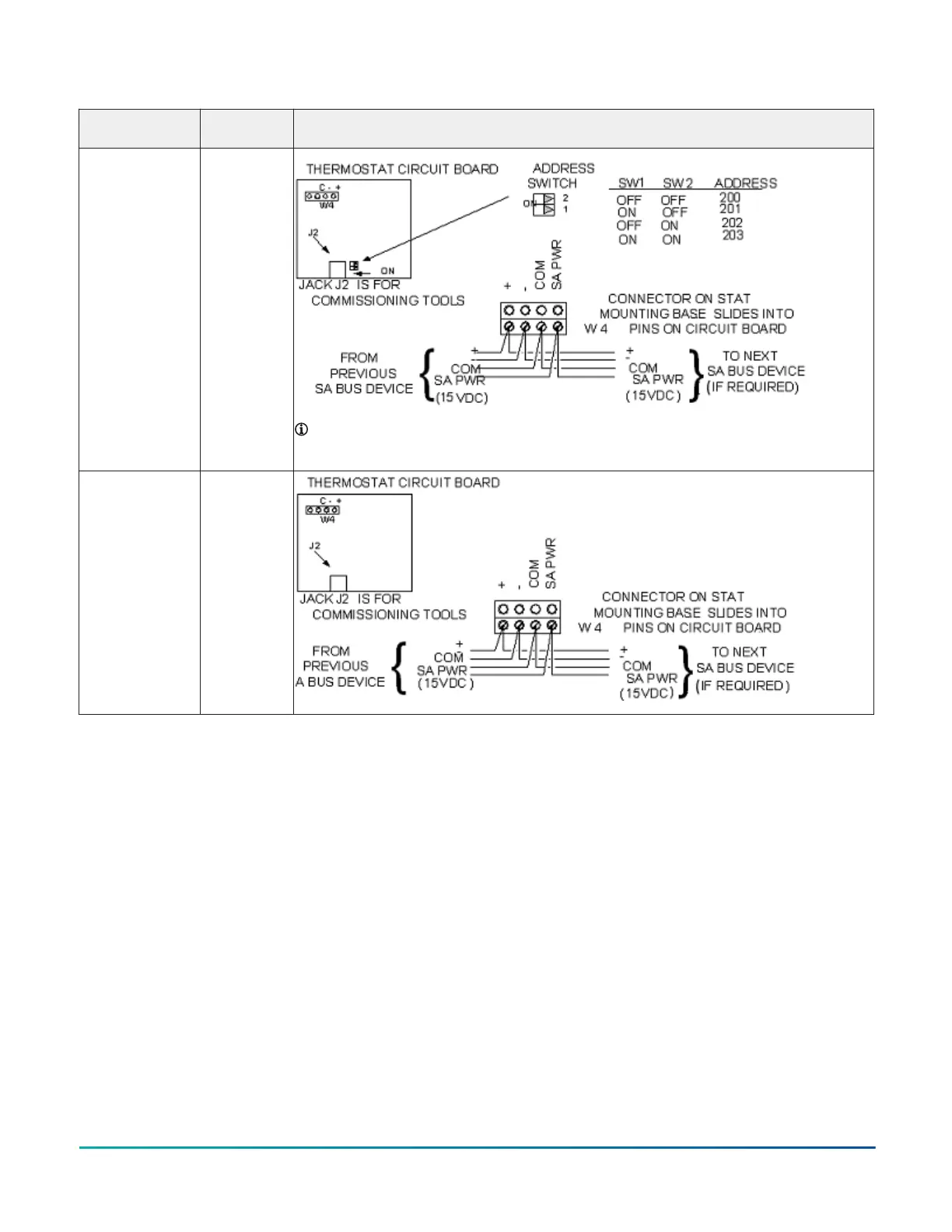

Termination diagrams
Network Stat
with Terminals
Addressable
SA Bus
Note: The above diagram is for the NS7000 series thermostats. For NS8000 network
sensor addressing, refer to the NS8000 Series Network Sensors Installation Guide (Part No.
24-11256-00007).
Network Stat with
Terminals (Fixed
Address = 199)
SA Bus
F4-CG Series General Purpose Application Controllers Installation Guide 17
