Table 5: Termination details
Type of field
device
Type of Input/
Output

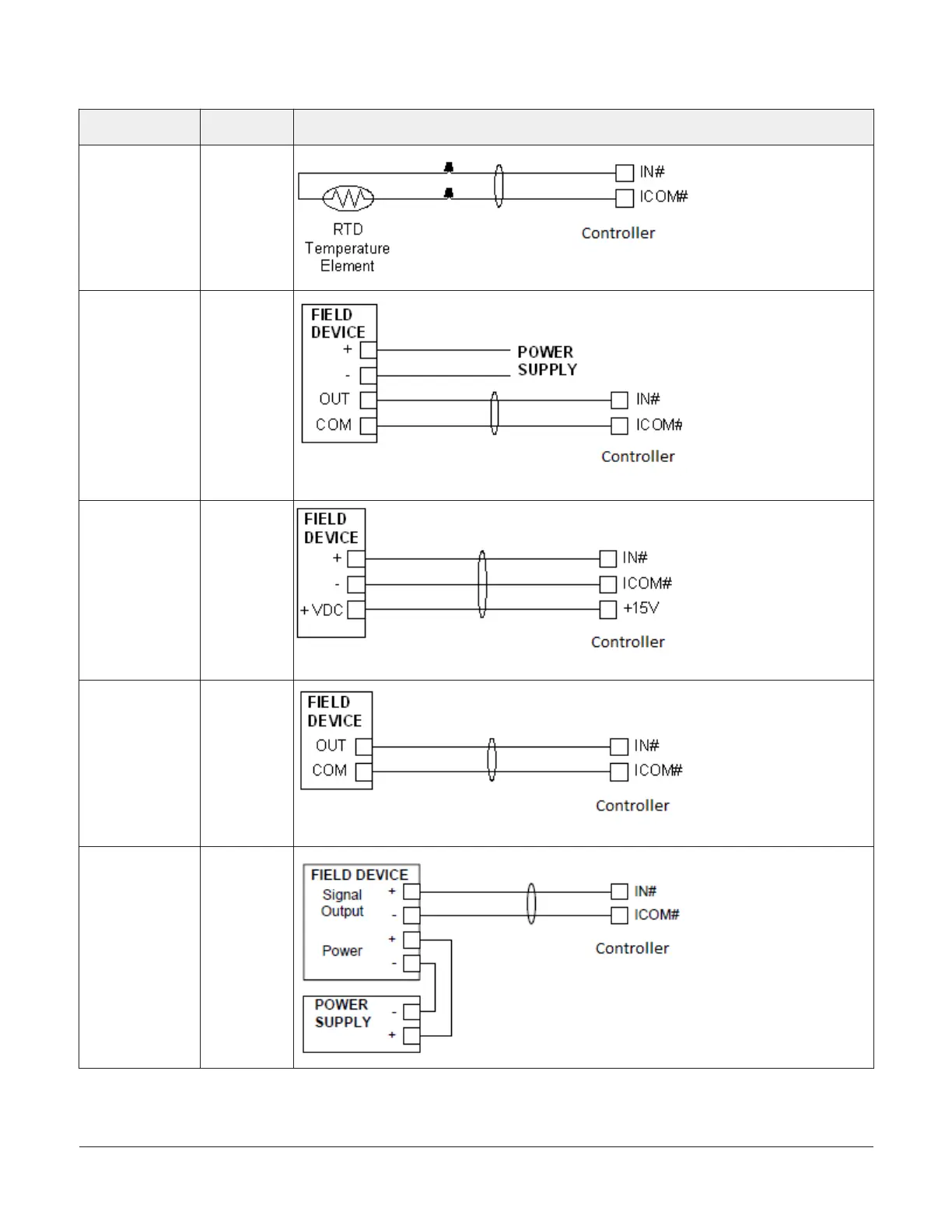

Termination diagrams
Temperature
Sensor
UI
Voltage Input -
External Source
UI
Voltage Input -
Internal Source
UI
Voltage Input
(Self-Powered)
UI
Current Input -
External Source
(Isolated)
UI
FAC2611 Advanced Application Field Equipment Controller Installation Guide 11
