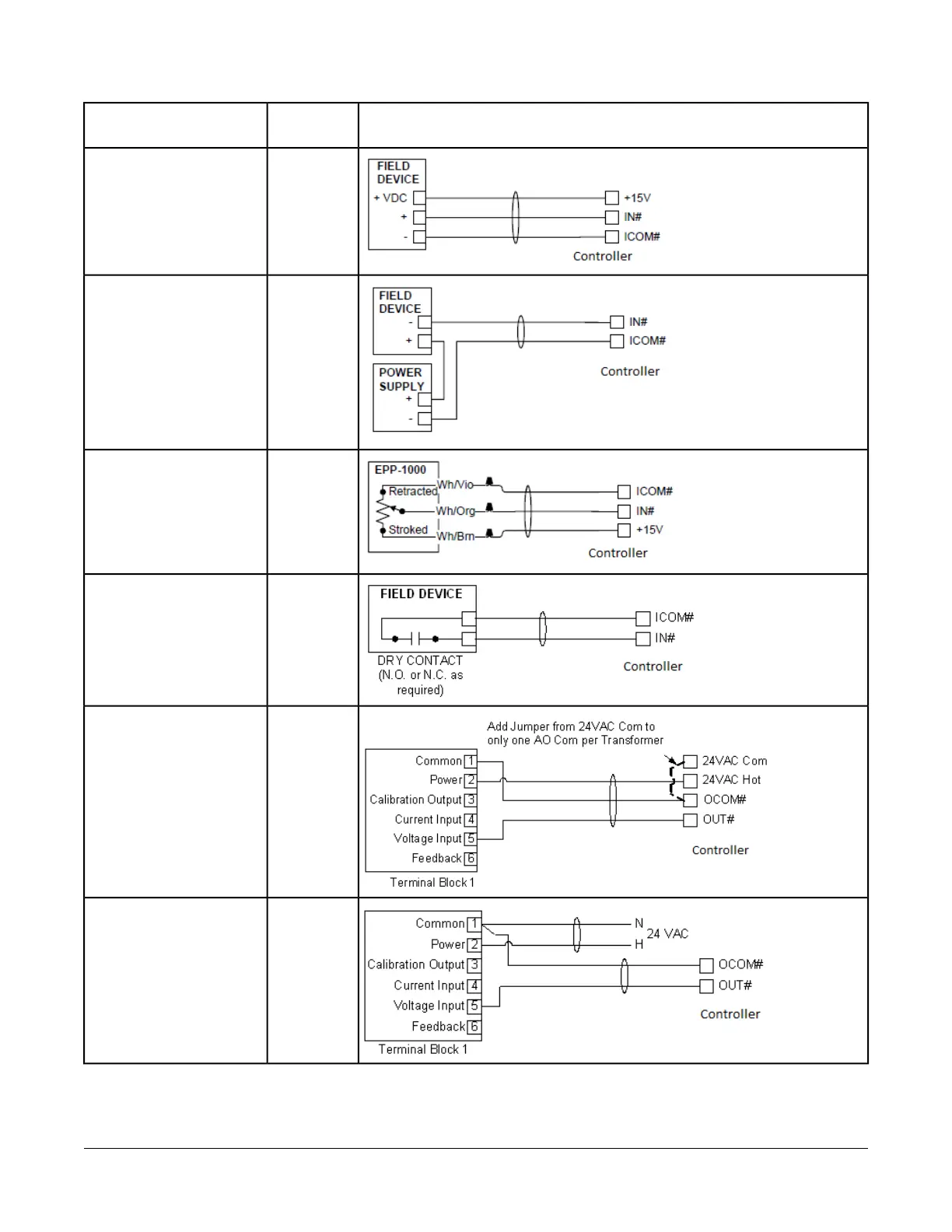

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field Device
UICurrent Input - Internal
Source (3 wire)
UICurrent Input - External
Source (in Loop)
UIFeedback from EPP-1000
UI or BIDry Contact (Binary Input)
CO0–20 VDC Output to
Actuator (External Source)
CO0–10 VDC Output to
Actuator (Internal Source)
9FX-PCG16 General Purpose Programmable Controller Installation Instructions
