P00792Q-rev.2
9
3.1 Combination of Outdoor Unit and Indoor Unit
The combination capacity of indoor unit against the outdoor unit is selected depending on the outdoor unit
capacity. Refer to the "Installation and Maintenance Manual" for the outdoor unit to decide the required
combination of indoor and outdoor units, and the combination unit capacity.
3.2 Transportation and Handling
•
Transport the product as close to the installation location as possible before unpacking.
•
Do not lay any objects on the indoor unit.
•
The indoor unit comes crated upside-down with the foam polystyrene drain pan positioned on top.
Do not invert the unit until it is ready to be suspended above the oor. Inverting the unit while on the oor
will crush the drain pan. Do not handle the unit by grabbing at the polystyrene pan and other air outlets
as they are fragile and will sustain damage.
•
The indoor unit handle is fabricated from foam polystyrene and is susceptible to breakage if any
excessive force is applied as a result of mishandling of the unit during installation.
3. Before Installation

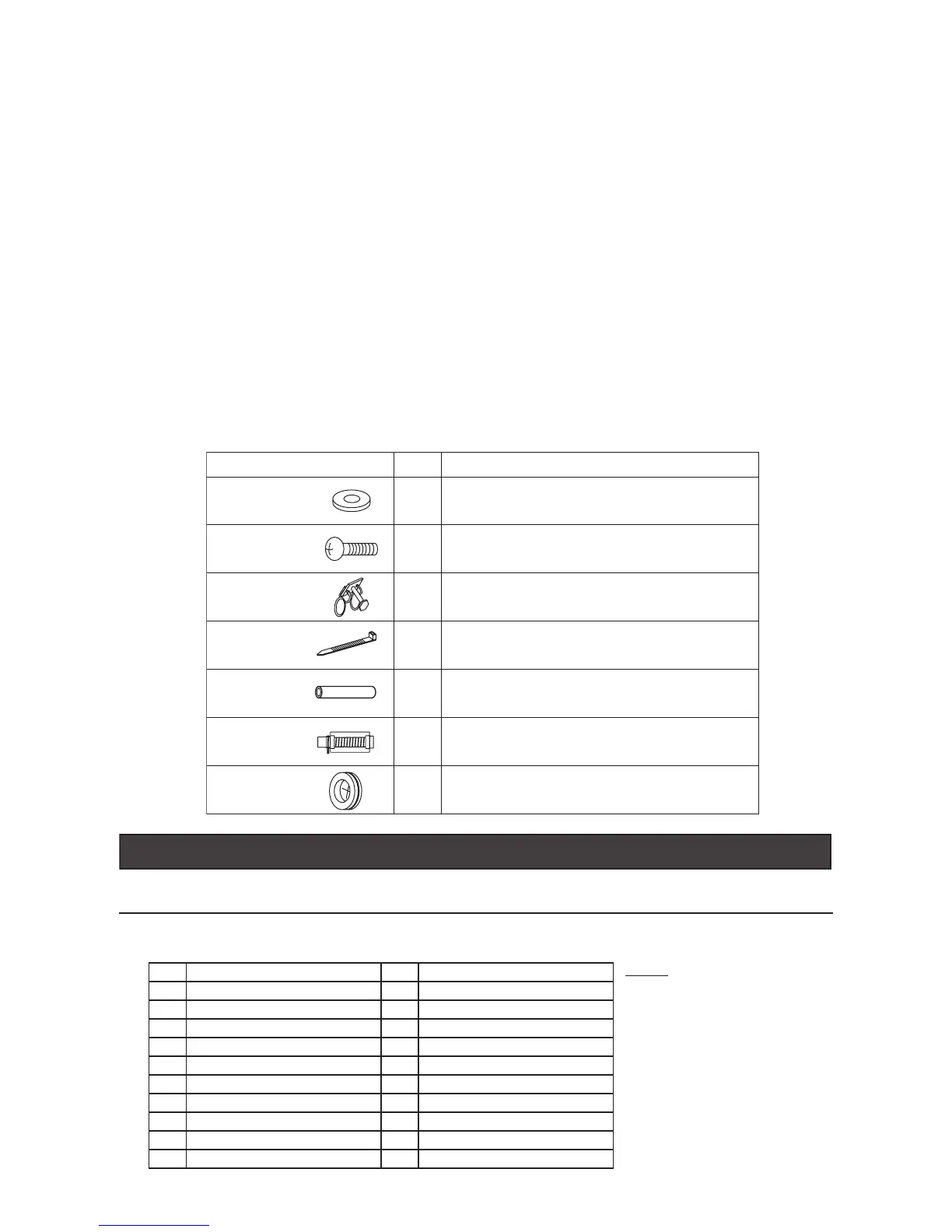

3.3 Factory-Supplied Accessories
Check to ensure that the following accessories are packed with the indoor unit.
The screws, washers, and are nuts are packed in the pipe insulation.
3.4 Necessary Tools and Instrument List for Installation
NOTE:
Use tools and measuring
instruments (vacuum pump, gas
hose, charging cylinder, manifold
gauge) exclusively for refrigerant
R410A.
No. Tool No. Tool
1 Handsaw 11 Wrench
2 Phillips Screwdriver 12 Charging Cylinder
3 Vacuum Pump 13 Manifold Gauge
4 Refrigerant Gas Hose 14 Wire Cutter
5 Megohmmeter 15 Gas Leak Detector
6 Copper Pipe Bender 16 Level
7 Manual Water Pump 17 Clamps for Solderless Terminals
8 Pipe Cutter 18 Hoist (for Indoor Unit)
9 Brazing Kit 19 Ammeter
10 Hexagonal Wrench 20 Voltage Meter
The controller and branch piping are optional accessories which are not included with the indoor unit.
If necessary, please contact your contractor.
Accessory Purpose
Washer (M10)
Screw (M4)
Hose Clamp
Qty.
8
2
16
For Unit Suspension
For Fixing Flanges
For Drain Pipe Connection
Drain Hose
1 For Drain Pipe Connection
Rubber Bush
1 For Connecting Hole
Cable Clamp
5
PVC Tube
2
For Fixing PVC Tube
For Separating Communication Cables and
Wired Controller Cables from Power Supply Wirings
ID 1/2 inch (12mm)
To Next Page
