P00792Q-rev.2
23
8.3 Position of Electrical Wiring Connection
• The electrical wiring connection for the indoor unit is shown in Section 8.2.2.

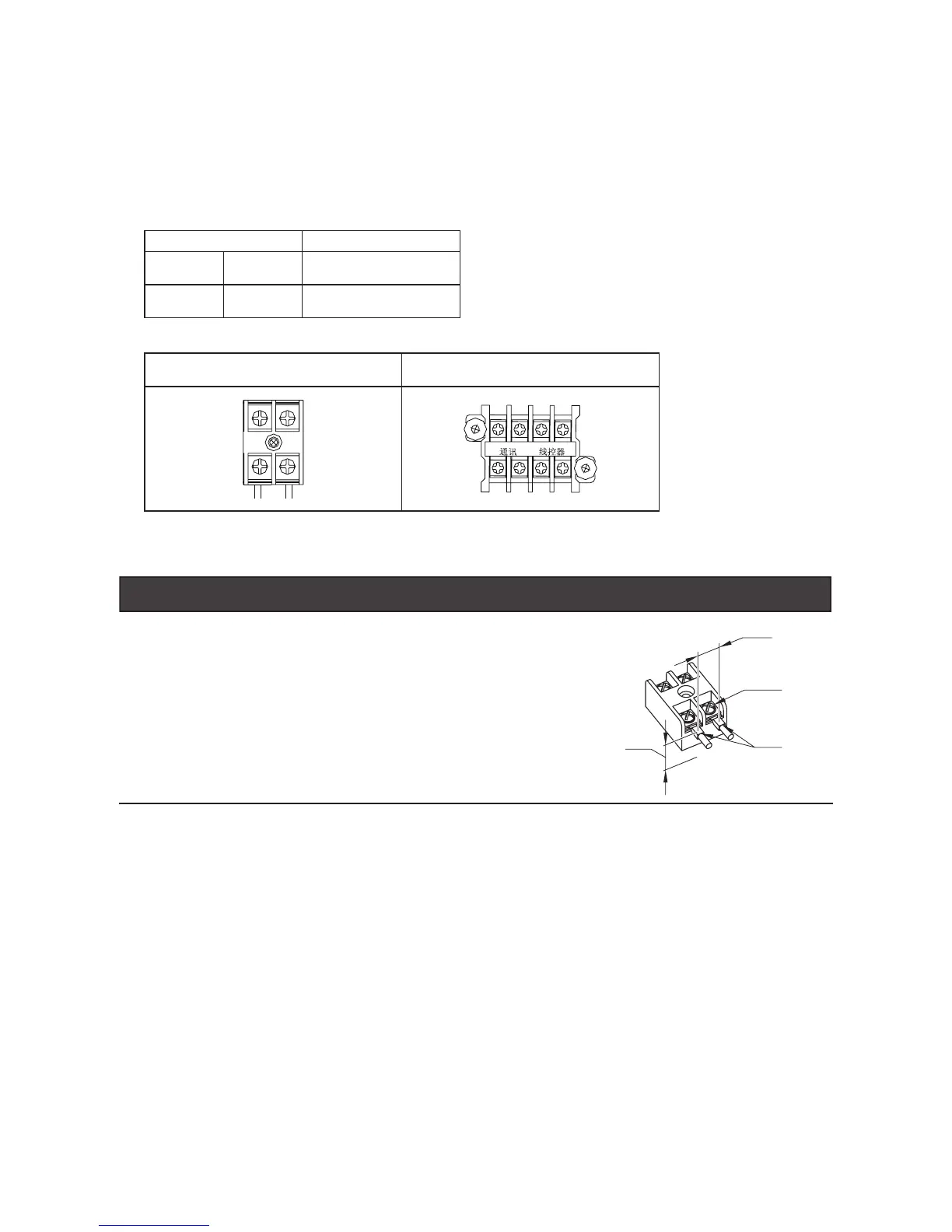

• The connection at the terminal block for the indoor unit is shown below. Check the outdoor unit for the
combination before the wiring work begins. Screw fasteners at the terminal block should be tightened
according to recommended torque specications as shown in the table below.
Torque Specications for Terminals
Screw Size Torque Specication
TB1 M4
0.7 - 1.0
(1.0 - 1.3
ft·lbs
N·m)
TB2 M3.5
0.9
(1.2
ft·lbs
N·m)
Terminal Block for Power Supply Wiring
TB1
Terminal Block for Communication Cable
TB2
L1 L2
12AB
(A)
(B)
Screw
● Do not connect the main power supply wiring to the communication
line (Terminals A, B, 1 and 2 of TB2). If these are connected, the
printed circuit board (PCB) will be destroyed.
● Note the following for wire connections at TB1 and TB2:
(A) Attach a piece of insulation tape or sleeve at each terminal.
(B) Maintain a safe distance between the electrical box and the
terminals to prevent a short circuit.
(C) Maintain a safe distance between the terminals.
To Next Page
