PEAK® OEM 18 240 Volt SMART Equipment Controller Installation Instructions
12
Current Input -
Internal Source
(2 wire)
UI
Current Input -
Internal Source
(3 wire)
UI
Current Input -
External Source
(in Loop)
UI
Feedback from
EPP-100
UI
Dry Contact
(Binary Input)
UI/BI

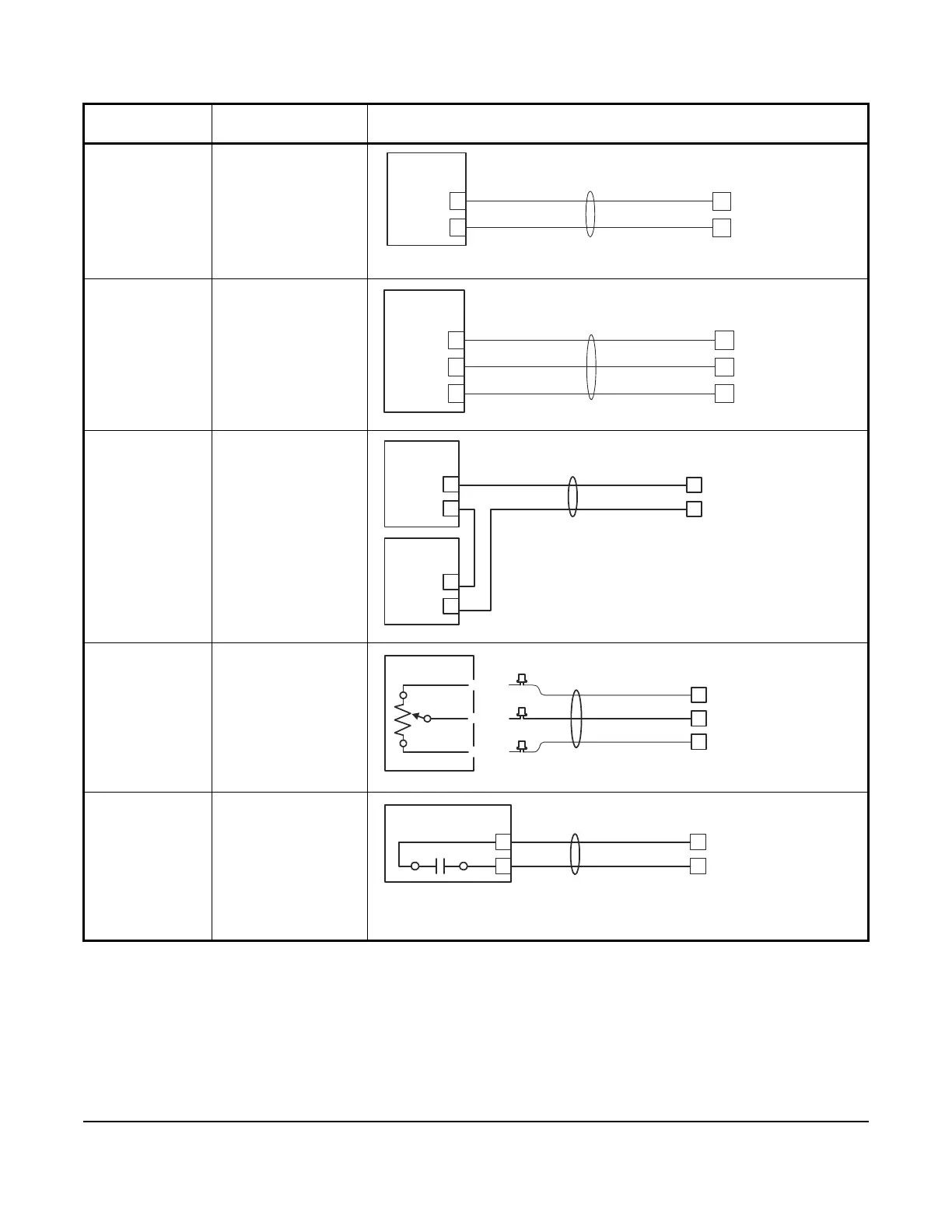

Table 2: Termination Details (Part 2 of 5)
Type of Field
Device
Type of Input/Output Termination Diagrams
Controller
FIELD
DEVICE
+ VDC
Output
+15V
IN#
IN#
ICOM#
+
-
FIELD
DEVICE
+VDC +15V
+
-
Controller
IN#
ICOM#
FIELD
DEVICE
Power
Supply
+
-
ICOM#
IN#
+15V
EPP - 1000
Retracted
Stroked
Wh/Vio
Wh/Org
Wh/Bm
Controller
FIELD DEVICE
ICOM#
IN#
DRY CONTACT
(N.O. N.C.
)
or as
required
Controller
