Johnson Controls RRS Economizer Controller User Manual

5292230-USG-B-0718
RRS Economizer Controller Quick Start Guide 11
operation, the trend timestamp has limited practical use in 3
through 6 ton package units because the RRS Economizer
Controller is powered only when the indoor fan operates.

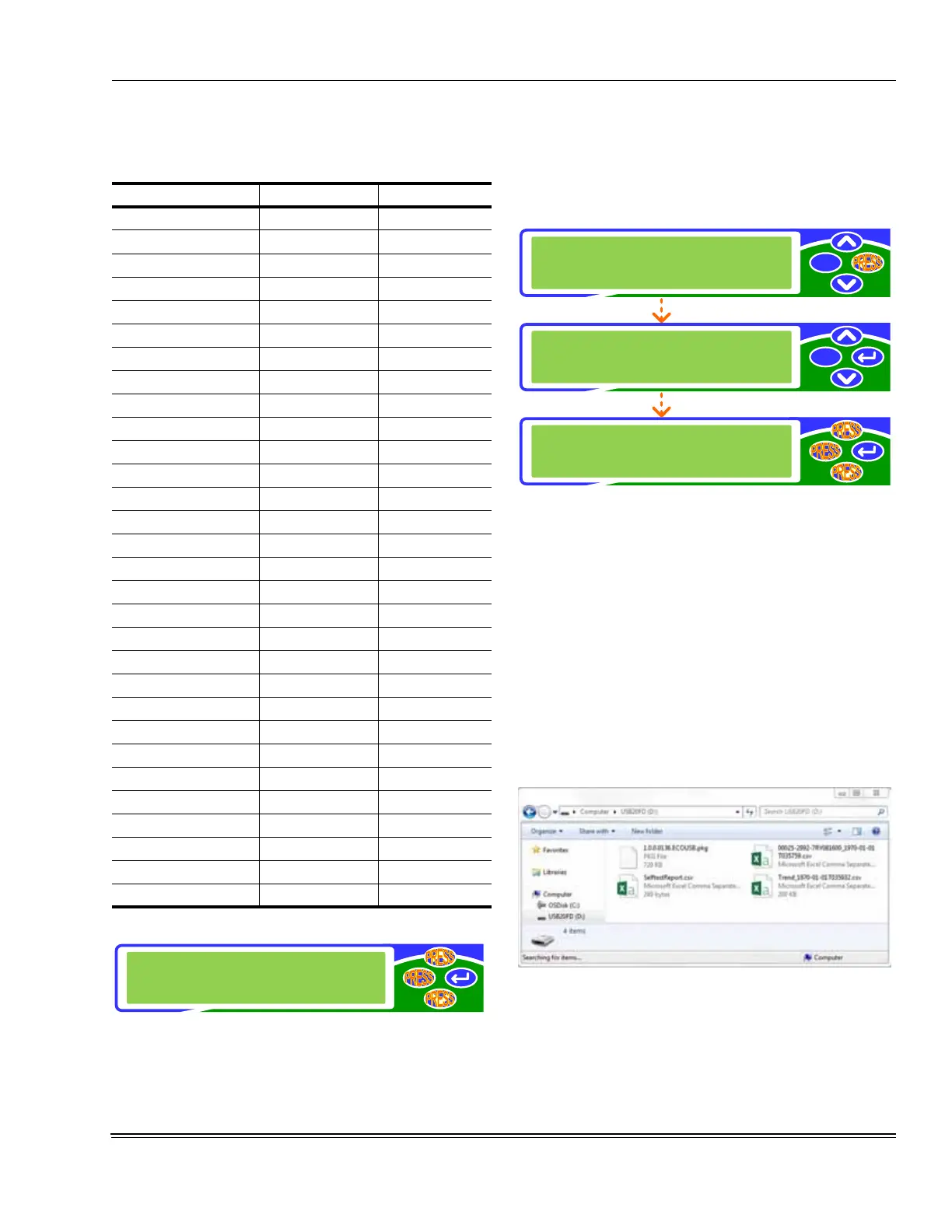

FIGURE 26 -
Indication That The USB Flash Drive Is
Not Connected Or Incompatible
A “USB Missing” message will be shown when the  (enter)
button is pressed when at (Level 1) “Update” > (Level 2)
“ExportTrend” location of the display menu without a compat-
ible flash drive connected to the USB port. A press of the esc
(cancel)  (scroll up) or (scroll down) button will then
resume menu navigation.
FIGURE 27 -
Exporting A Trend
With a compatible flash drive connected to the USB port, the
(enter) button is pressed when at (Level 1) “Update” >
(Level 2) “Export Trend” location of the display menu.
While the Export Trend is in progress, “Exporting” will be
shown on the upper line of the display.
In approximately 5 seconds; “Export” on the upper line and
“Done” will be shown on the lower line of the display when the
Export Trend function is complete. The flash drive may be
then be removed from the USB port if not needed for other
functions. A press of the esc (cancel),  (scroll up) or
(scroll down) button will then resume menu navigation.
FIGURE 28 -
Windows PC view of Firmware Upgrade,
Restoration, Self Test Report and Trend
Files on a Flash Drive
Table 1: RRS Economizer Controller Trending
Value Sample Interval Max Samples
SAT 5 minutes 2016
RAT 10 minutes 1008
OAT 15 minutes 672
OAH 15 minutes 672
RAH 10 minutes 1008
IAQ 15 minutes 672
Y1 status change 100
Y2 status change 100
W1 status change 100
Shutdown status change 100
OCC status change 100
Blackout status change 100
Brownout status change 100
Y1Out status change 100
Y2Out status change 100
AlarmOut status change 100
ERV status change 100
EconType status change 100
OAEnthalpy 15 minutes 672
RAEnthalpy 10 minutes 1008
FreeClgAvail status change 100
StartupDelayState status change 100
ExhaustControlState status change 100
ClgAvailState status change 100
ExcessiveSATState status change 100
TstatSequencerState status change 100
OADamper status change 800
DamperFeedback status change 800
DamperPropBand status change 200
DamperIntegralTime status change 200
esc
USB
Missing
esc
esc
esc
Restore
>Export Trend
Exporting
Export
Done
