RRS Economizer Controller Quick Start Guide 9
LOAD FIRMWARE
Firmware update of the controller is only necessary if
updated features are desired or to address specific issues
with earlier revisions of the firmware.

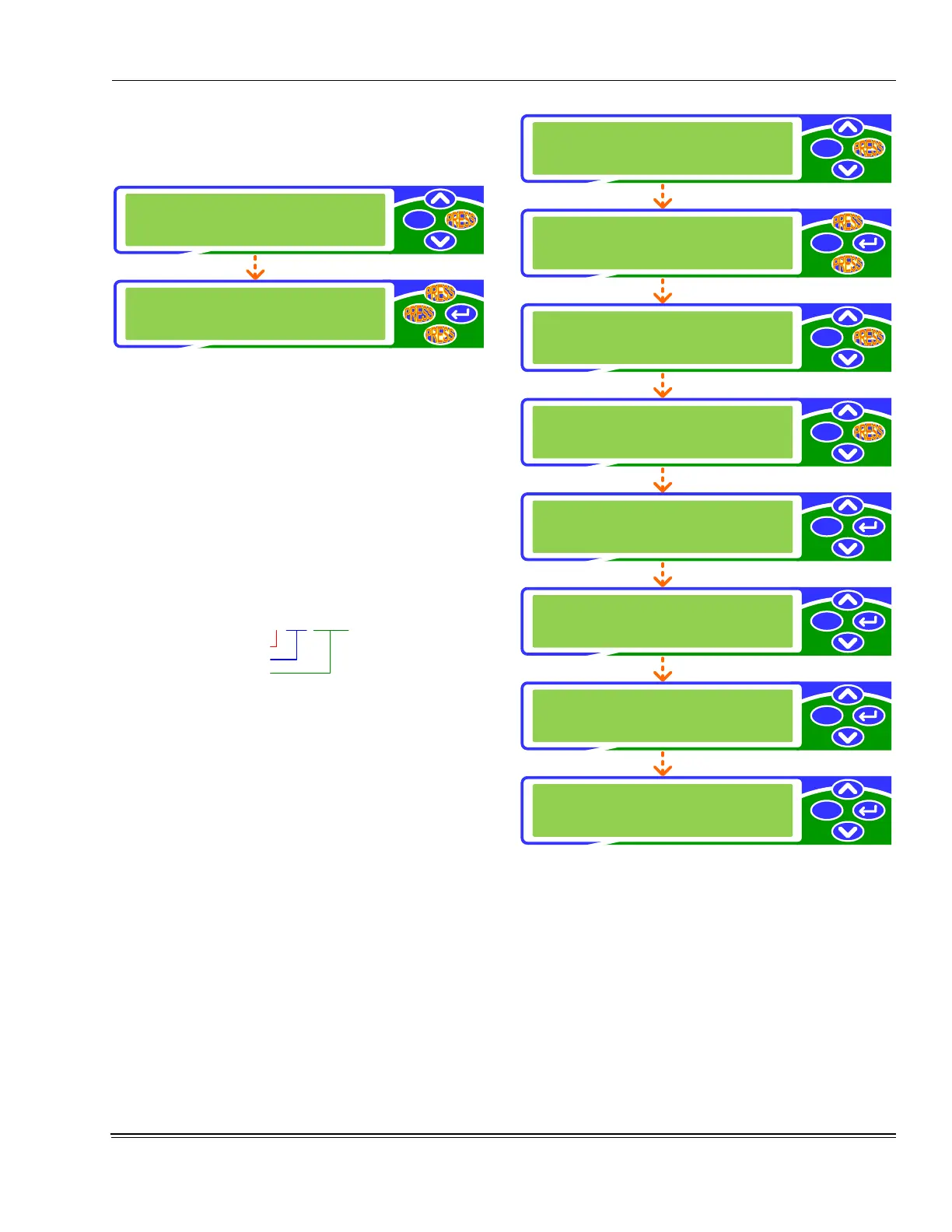

FIGURE 21 - Incompatible Flash Drive Or Firmware
File
A "No Package Present" message will be shown when the <-
-(enter) button is pressed at (Level 1) "Update" > (Level 2)
"Load Firmware" location when there is not a compatible
flash drive with RRS Economizer Controller firmware update
files connected to the USB port. A press of the esc (cancel)
(scroll up) or (scroll down) button will then resume menu
navigation.
FIGURE 22 -
Firmware Update File Name Structure
FIGURE 23 - Firmware Updating And Controller
Rebooting
With a flash drive having an RRS Economizer Controller firm-
ware update file on the top storage level connected to the
USB port, the (enter) button is pressed when at (Level 1)
“Update” > (Level 2) “Load Firmware” location of the display
menu.
Presses of the  (scroll up) and (scroll down) buttons
move the > cursor and scroll through the firmware update
files in the top level of the flash drive storage selections.
The (enter) button is then pressed with the > cursor aligned
to the desired firmware update file name.
esc
esc
View Version
>Load Firmware
No Package Present
Major Release Revision
RRS Economizer Controller
Firmware Update File Name Structure
1.0.0.0136.ECOUSB.pkg
Minor Release Revision
Incremental Revision
esc
esc
esc
esc
esc
esc
esc
esc
View Version
>Load Firmware
>1.0.0.0136.ECOU
1.0.0.0141.ECOUS
1.0.0.0136.ECOU
>1.0.0.0141.ECOUS
1.0.0.0141.ECOUS
Confirm
FW Update: 03mn
Updating 0%
Backup: WAIT
Backup 0%
FW Update: WAIT
Updating 0%
FW Update: OK
Reboot 9
