Johnson Controls S300 Series User Manual

Hardware Installation S300-DIN-RDR2S Module
24 24-10239-413 Rev. A
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2010 Johnson Controls, Inc.
RS485 Connection
Setting the End-of-Line Switch (SW1)
Network devices at either end of the RS485 network must be set as network
terminated devices. This is done with the use of the End-of-Line (EOL) switch. The
S300-DIN-RDR2S module has one End-of-Line switch consisting of two resistors.
Turn them both on (up) or both off (down) according to the position of the RDR2S
module on the RS485 bus.
Factory Default: ON (both up)

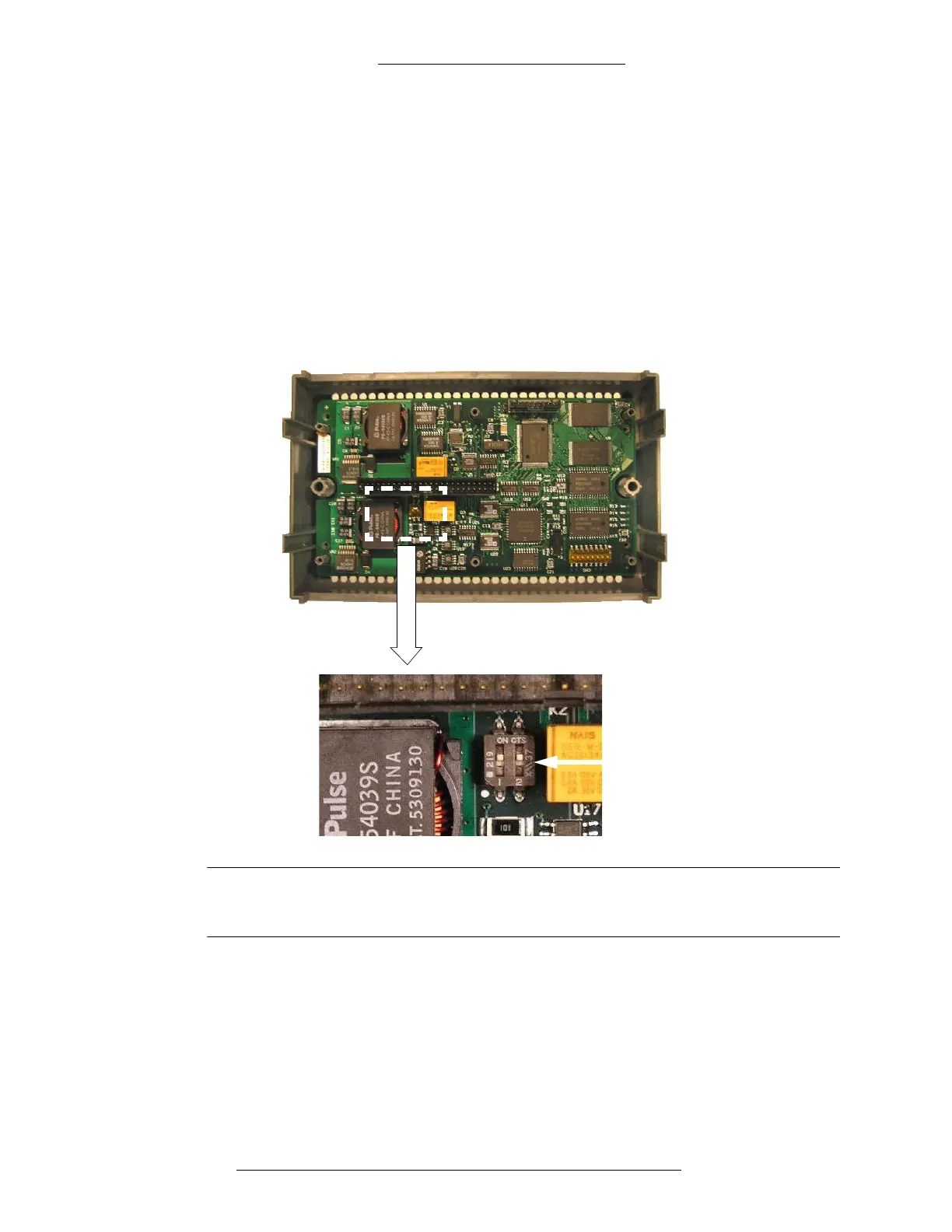

EOL Switch
NOTE
Before changing the EOL position, remove the 24 VDC supply power to
the RDR2S and wait for the Power LED to go off.
